Fujian Wolong Pipe &Valve Manufacturing Co., Ltd. manufactures stainless steel sanitary fluid valves, pipes and fittings.
Based on fine technology background and resources, the company designs and produces 3A, SMS, DIN, BS, AS, DS, ISO, IDF, BPE and RJT sanitary standard pipe fittings and industrial standard pipe fittings to meet customers demands fully.
Its rich technology experience and consistent quality style ensure each pipe fitting in line with FDA and GMP requirements.

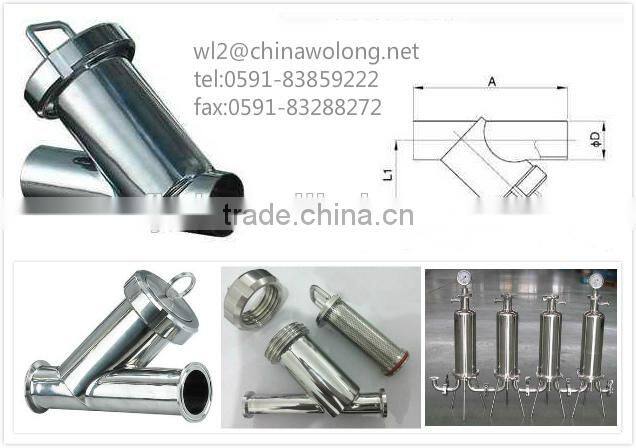

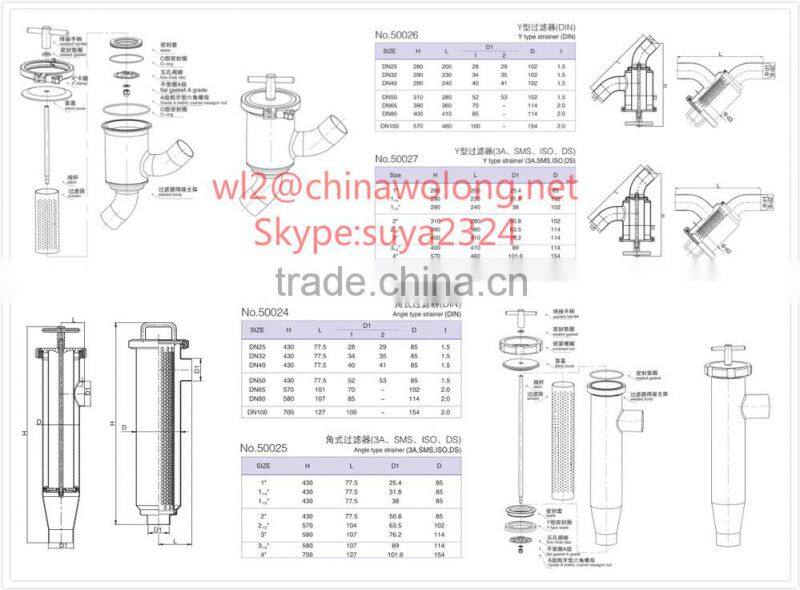

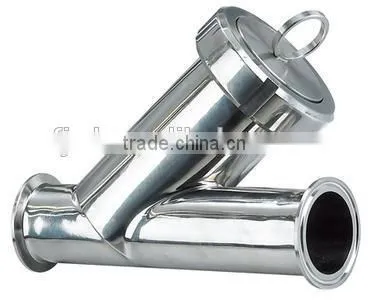

Specification
Product Name: |
304 Stainless Steel Sanitary strainer filter |
Material: |
AISI304, AISI316L |
Size: |
1"-6"&DN10-DN150 |
Brand |
Wolong |
Polished |
mirror polished, sub-light, matt polished,180G, 240G, 400G,acid pickling |
Finish: |
Internal surface:<0.8um,Seam surface:<1.6um,External:<1.0um |
Connection: |
Welded,Clamp,Threaded, Flanged |
Standard |
ISO,DIN,IDF,SMS,3A ect |
Connection Mode: |
Body can be changeable. And low torque, SMS, DIN 3A weld and male end, clamped |
Body: |
Out from full machined, high polished. Ra less than 0.6um. 9.5 um, USA and Europe required. Electric polished and PTFE coating can be required |
|
|
Processing: |
imported CNC machined by forged |
Certificate: |
CE, ISO9001/2008, 3A,SGS |
Working Principal: |
manual operation or driving device operation |
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic, water etc |
Packaging Details: |
Inside with plastic,outside with plywood cases&carbon,or according to customer requirements. |
Delivery details: |
Usually within 20 days after receiving T/T down payment |
|
Polish:
|
Mirror polish,sub-light,180G,240G,400G |

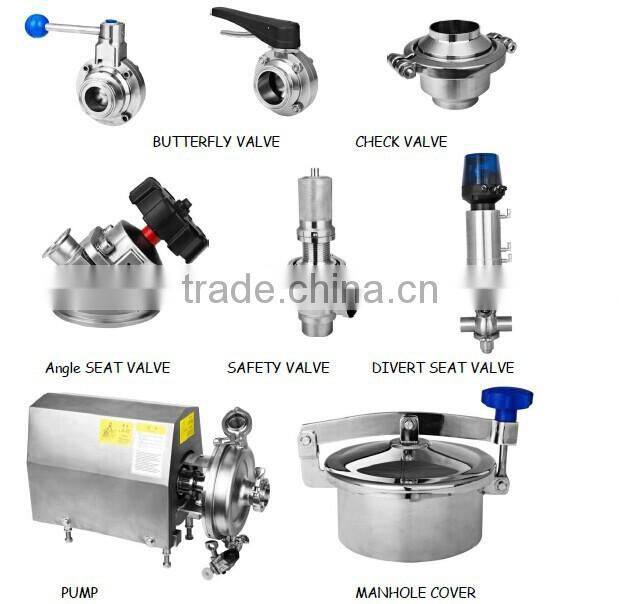

Product show
