Product

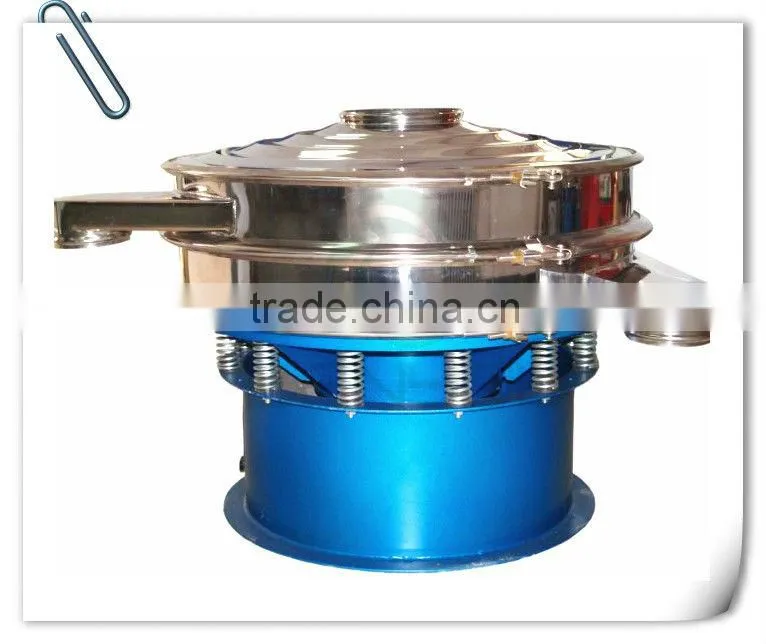

circle mould materials screening machine is a vibratory screening device,which vibrates about its center of mass.It accomplished by eccentric weights on the upper and lower ends of the motiongeneration shaft.These weights create vibration in the horizontal
and vertical planes. When the movements on these two planes are combined it results in a spiral motion of product over the screening area.The seep and spiral pattern of material trajectory over the screen cloth
can be set by the operator for maximum throughput and screening efficiency of any screen able product.
Technical feature
1.ideal for separating solids from liquids.
2.effectively segregates dry ma t erials into various particle sizes.
3.simple and efficient design requires fewer kilowatts.
4.other features include long screen life and ease with which screens may be changed
5.dust cover are also a vailable for any completely sealed process.
6.senyou screens are also available in a low profile design.
7.ball tray self cleaning system.

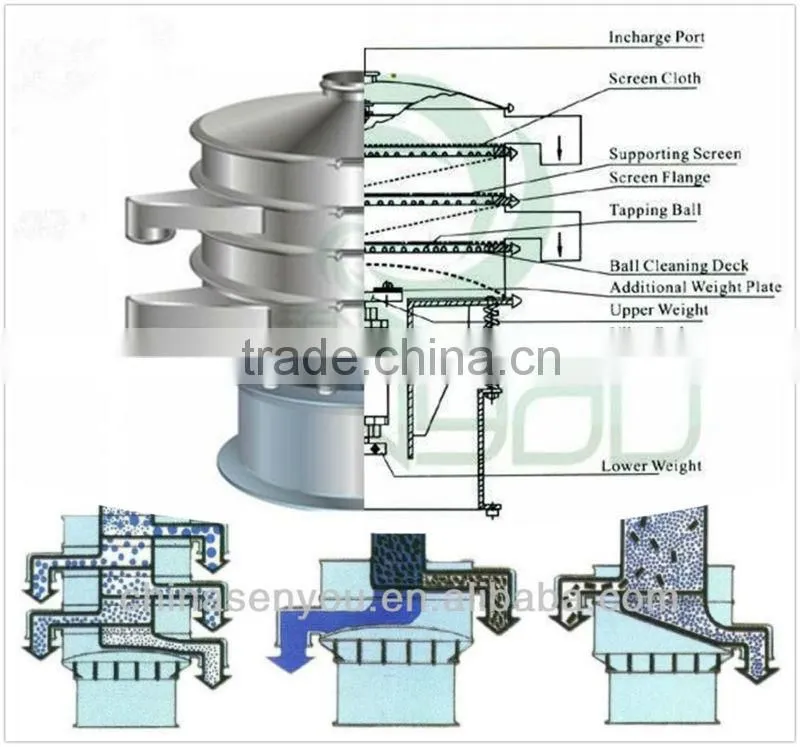

working principle
parameter
| Model |
Power (kw) |
screening Area (mm) |
Dimension(mm³) |
| SYD-600-S | 0.25-0.55 | 550 | 800*800*750 |
| SYD-800-S | 0.55-0.75 | 760 | 900*900*750 |
| SYD-1000-S | 0.75-1.50 | 930 | 1160*1160*810 |
| SYD-1200-S | 1.10-1.75 | 1130 | 1360*1360*885 |
| SYD-1500-S | 1.50-2.20 | 1430 | 1850*1850*990 |
Application
1. Chemical: Resin powder, palette, washing powder, paint, soda and citric acid, etc.
2. Abrasive material and ceramic industry: alumina, slurry, and spray soil grain etc.
3. Food industry: Sugar, salt, Alkali, monosodium glutamate, milk powder, soybean milk, yeast, juice, soy sauce, vinegar etc.
4. Paper Making Industries: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials, etc.
powders

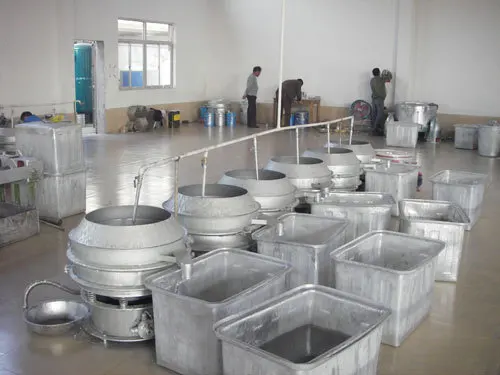

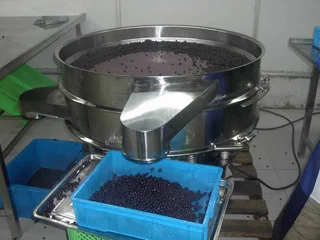

Show case
Packing and shipping
Company Information
Xinxiang Senyou Mechanical And Electrical Co. Ltd., is a technological ceramic-machinery enterprise created by a team of long time ceramics engineers.Senyou makes every effort to produce multi-functional machines with modern design, and high practicability &reliability, there is great innovation in our products, therefore Senyou wins a wide favors from customers.
Senyou offers the widest range of sieving and filtration equipment for ceramic, mainly produces "WINERIS" slurry vibrating sieve, drum vibrating sieve, flat vibrating sieve, high-frequency glaze vibrating sieve, dry-powder vibrating sieve, etc.
With our extraordinary confidence, stable high quality and client-ease service, we believe Senyou will create a new prosperity in the China ceramic machineries industry.
Our Factory
We are a professional manufacture of screening equipment supplier, who has advanced mechanical and manufacturing engineer and senior mechanics. Their average working experience is more than 10 years. We are focus on quality, innovation and devote ourselves to technology development all the time. With the professional technical teams and richly manufacturing experience, we can supply excellent vibrating machines for global customers.
Certifications
Qualification
Contact information
Warm Notice:
You can give your requirments to get a suitable machine,like
1. material (name)that you want to process,with the density,water content(%).
2. the necessary process quantity(per hour)
3. material contact part,SUS304,SUS316L and Q235 for option by your material.
4. the different dimension of the machine can be designed for you.
5. Additional parts ,like the mobil wheel and noise-proof base,can be easily fixed and maintained
