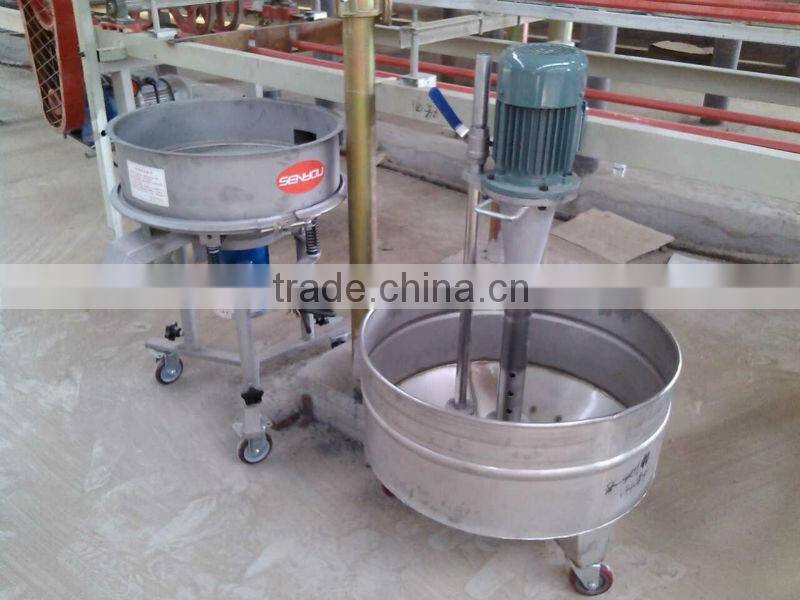

Fine Screening Size Separator For Chemical

Specifications

size separator
1.ISO9001
2.Easy to operate
3.Free to move
4.Low noise

Fine Screening Size Separator For Chemical

Product Description                                                                              SY

Fine Screening Size Separator For Chemical is our self-developed products with features of high efficiency , small amplitude , high frequency and low noise . Comparaed with other vibrating sieves , this kind of vibrating sieves adapts high-frequency device which destory the tension of slurry , make the high vibration of small size grain on the sieve , accelerate the separation of big density material , enlarge the contacts between small size material and sieve , this creat a good condition to separate the small grain and big density material .

Features                                                                                                 SY

1. Small volume, light, easy to move and height freely adjusted.

2. More obvious sieving effect for those fine-grained and high-viscosity materials

3. Free from vibration and noise, and with its good sealing structure, it is free from dust and performs in a high efficiency.

4. Make use of vertical vibration motor,mechanical drive,the transfer process without loss of the exciting force,the effective transfer to the screen surface.

5. It is with features of Compact, light weight, mobility and easy installation, its height can be adjusted quickly High-frequency .

Function                                                                                                SY

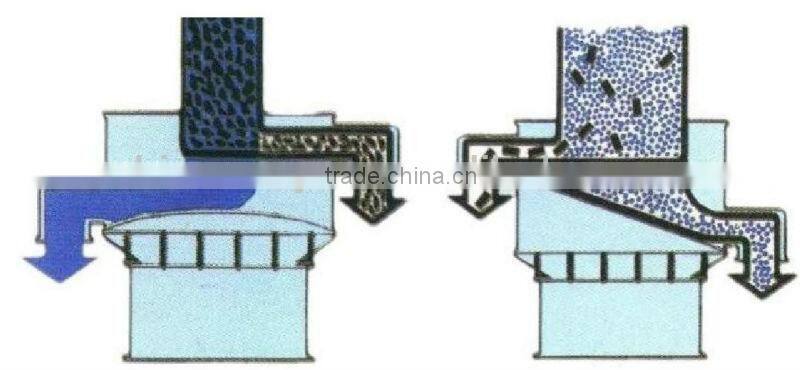

                                                         Dewatering  and  Removal of impurity

Other parts                                                                                             SY

                                                                       sus304 Material

                                                                                       Z Type Frame

                                                                                          Parts

Technical Parameters                                                                            SY

Model	SY-600-S	SY-800-S	SY-1000-S	SY-1200-S
Power	0.37W	0.55KW	0.75KW	1.1KW
Largest Vibration Force	5000N	8000N	10000N	15000N
Amplitude	2-4mm	2-4mm	2-4mm	2-4mm
Screen	0.221m2	0.453m2	0.694m2	1.002m2
Decibels	<=35db	<=35db	<=35db	<=35db
Dimension	660*660*800mm	950*950*890mm	1170*1170*890mm	1370*1370*920mm
