Mini vibrating machinery small vibrating screen for farm
1.high screening efficiency
2.military quality sieves
3.easy to change sieves
4.custom design service:available
5.certification:CE,ISO9001

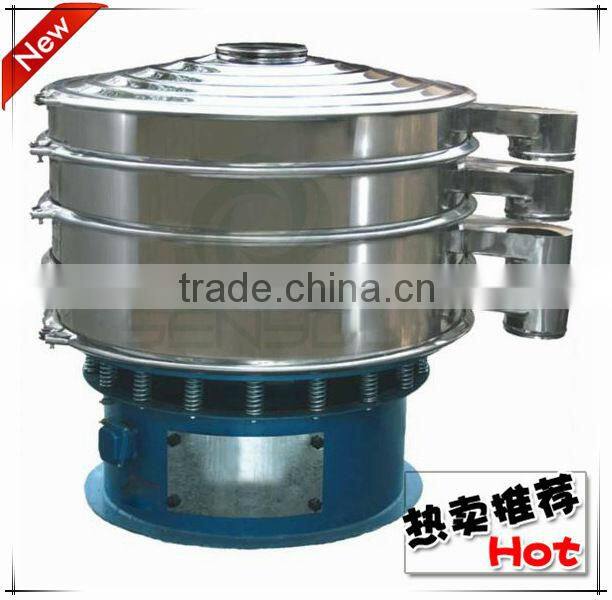

Mini vibrating machinery small vibrating screen for farm
Product Introduction - SENYOU
Gravel Shaker Screen, Circular Vibrating Screen, Round Vibrating Screen is a new-type and high efficient machine which moves circularly and has multi-layers. The machine uses the eccentric shaft vibration-exciter and the eccentric blocks to adjust the amplitude. It possesses the features of many specifications, reliability, strong exciting force, high efficiency, little noise, durability, convenient maintenance and safety.Vibrating screen machine is applied to sieveing and filtering powder, partical and liquid in different fields.
Working principle - SENYOU
Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
Structure - SENYOU
Feature - SENYOU
- No Clogging of Screen
As the screen vibrates in multiplane hence the holes of the screen remain clear. Additional and blinding system is provided for difficult to screen and wet materials.
- Minumum blinding of screens
Due to vibrations in the vertical plane, blinding of screen is minimized. However, for certain materials which have inherent blinding, sticking property and special accessories can be used to eliminate this problem.
- Low on power and maintainence / High on efficiency
The design enables to utilize the vibratory force generated by the motor to the optimum and very few moving parts reduce the maintenance to minimum.
- Multiple separations
As many as five screens could be mounted on one separator achieving six sizes materials to get.
- Optimum space / capacity
This separator achieves greater production, separation per unit of screening area as compared with any other screening method or device.
- Pollution free /Clean operation
Because of the little input mouth,The whole operation is very clean and pollution free.
Technical parameters - SENYOU
Model |
Power (kw) |
Diameter of screen (mm) |
Dimension (mm³) |
SYD-600-S |
0.25-0.55 |
550 |
800*800*750 |
SYD-800-S |
0.55-0.75 |
760 |
900*900*750 |
SYD-1000-S |
0.75-1.50 |
930 |
1160*1160*810 |
SYD-1200-S |
1.10-1.75 |
1130 |
1360*1360*885 |
SYD-1500-S |
1.50-2.20 |
1430 |
1850*1850*990 |
Application - SENYOU
Gravel Shaker Screen, Circular Vibrating Screen, Round Vibrating Screen is widely used in:
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Packaging - SENYOU
Delivery - SENYOU
Any calls / letter inquiries about vibrating sieve information,
please also provide the following information in your enquiry to make prompt and accurate reply.
(1) Raw materials needed to deal with: the name, size, structure, the proportion of water, viscosity, temperature or others
(2) The purpose of: grade, filter, edulcoration
(3) Handling capacity: kg / hour or liter / hr
(4) Screen Size (mesh or mm)
(5) Job running time
(6) Other special requirements,
such as: temperature, resistance and other media.
