China Truck Front and Rear Axle 390-6x4
US$ 1 - 10,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Axles
Material:
Steel
Truck Model:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Truck SuspensionUS$ 1 - 10,000MOQ: 1 Piece -
Dual Driving Axles for Heavy Duty Dump TruckUS$ 1 - 2,000MOQ: 300 Pieces
-
Heavy Duty Truck Middle and Rear Driving Axles With Single ReductionUS$ 1 - 2,000MOQ: 300 Pieces
-
Tandem Driving Axles for Heavy Duty TruckUS$ 1 - 2,000MOQ: 300 Pieces
-
6x4 Heavy Duty Dumper 13 Tonnes Truck Tandem Drive Axle AssemblyUS$ 1 - 10,000MOQ: 1 Piece
Type
Axles
Material
Steel
Truck Model
Other
Place of Origin
China
Brand Name
YIWO
Model Number
YIWO530
Specifications
China truck front and rear axle 390-6x41.high quality
2.truck bridge and bridge parts are customizable
FRONT AND REAR AXLE 390-6X4 FOR DRIVING AXLE
Product Description
| Main technical parameters | ||
| Specifications | Middle axle parameters | Reax axle parameters |
| Payload (KG) | 8000 | 8000 |
| Maximum output torque (N.m) | 27000 | 27000 |
| Self-weight (KG) | 580 | 500 |
| Track (mm) | 1880 | 1860 |
| Spring pin distance (mm) | 1025 | 1025 |
| Selected ratio | 4.11;4.875;5.14;5.43;5.857;6.33 | 4.44;4.857;5.286;5.833;6.33 |
| Diameter of hub bolt distributed cicular (mm) | Φ275 | Φ275 |
| Brake specification-diameter(mm)*width(mm) | Φ400*185 | Φ400*185 |
| Suitable rim | 7.00-20 | 7.00-20 |
| Suitable tire | 9.00-20 | 9.00-20 |
| Minimum clearance to ground (mm) | 265 | 265 |
| 390-6*4 single reduction driving axles are through-type duplex press-welding drive axles developed for lightweight medium highway trucks,with advantages of light weight,compact structure,high fatigue-resistance,good brake performance and can be well used on multi-shafts vehicles. | ||

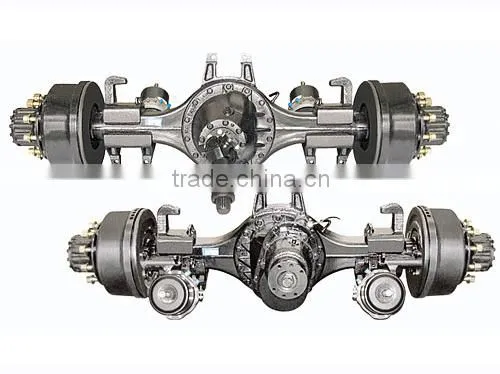

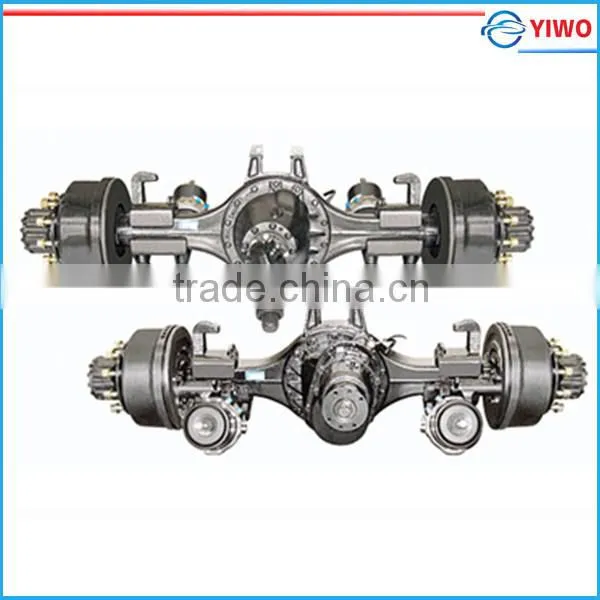

China truck front and rear axle 390-6x4
We have capacity to design axle and axle parts. Welcome to customize .
Packaging & Shipping
1. Wooden pack or as your requirement .
2.Delivery date: 30 days once confirm the order .
Axle Production Line
