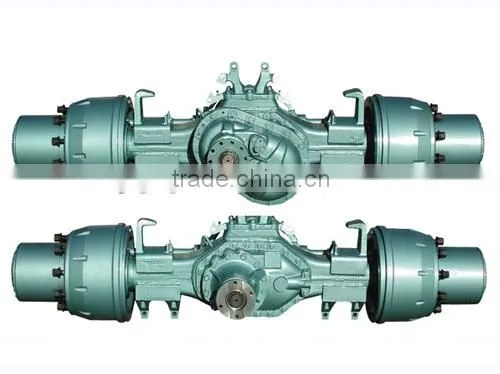

6x4 Heavy Duty Dumper 13 Tonnes Truck Tandem Drive Axle Assembly

6x4 Heavy Duty Dumper 13 Tonnes Truck Tandem Drive Axle Assembly thumbnail-1
6x4 Heavy Duty Dumper 13 Tonnes Truck Tandem Drive Axle Assembly photo-1
US$ 1 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YIWO
Model Number:
LC300-6x4
Contact Supplier Request Quote Chat Now
Shanghai YIWO Vehicle Parts And Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name YIWO
Model Number LC300-6x4
Type Rear Axles
Warranty 9 Months

Specifications

1.high quality 13 ton tandem drive axle assembly
2.Established 1986 year
3.Professional technical team
4.Advanced equipments

  6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly

China truck axle LC300-6x4



We have capacity to design axle and axle parts. Welcome to customize .

More products please visit: https://img13.fr-trading.com/productlist.html



1. The axle shell section are increase to 170*140, as a result, it enforces the stiffening ring structure and makes it with higher carrying capacity and higher rigidity.
2.Inter-axle differential lock is inside so that the structure would be more compact and the capability is more stable.
3.This axle is for large-tonnage heavy truck.

Main technical parmeters
Item
Middle axle
parameters
Rear axle
parameters
payload(kg) 13000 13000
Track(mm) 1830 1830
Spring pin distance(mm) 990 990
Selected ratio 4.80;5.73;
6.72;5.22;6.3		 4.80;5.73;
6.72;5.22;6.3
Diameter of hub bolt distributed circular(mm) dia355 dia355
Brake specification-diameter×width(mm) dia420×185 dia420×185
Suitable rim 8.5-20 8.5-20
Suitable tire 12.00R20 12.00R20
Minimum clearance to groud(mm) 290 290
Maximum output torque(N.m) 44000 44000

 Advantages



  1. high quality 13 ton tandem drive axle assembly
  2. Established 1986 year
  3. Professional technical team
  4. Advanced equipments



Main Clients

6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly



Production Equipment

6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly

Modern Axle Production Line

The Alxe Plant has more than 16 production line,including the axle housing forming-welding machining line, differential and reducer case machining line, reducer assembly line, front axle welding-machining line, front axle knuckle machining line, middle and rear axle housing machining line,

axle assembly line, painting line,suspension machining and assembly line, etc.

which make it come true with an annual output of 200,000 heavy truck drive axles,

40,000 steering front axles, 30,000 sets of suspension assembly and 20,000 sets of font,

middle and rear mining axle.



After-Sales Service

Warranty

Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period, in case of material or workmanship has occurred with spare sparts in normal operation, the defective part will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.

Spare Parts

Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a part price list for purchase.

 Installation and Maintenance

Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.If necessary, we will send technicist to site guidance.

 Technical Service

We have strong after-sale technical service team to help you solve all problem during you use our products.



6x4 heavy duty dumper 13 tonnes truck tandem drive axle assembly
