Specifications
China truck front and rear axle 390-6x41.high quality
2.truck bridge and bridge parts are customizable

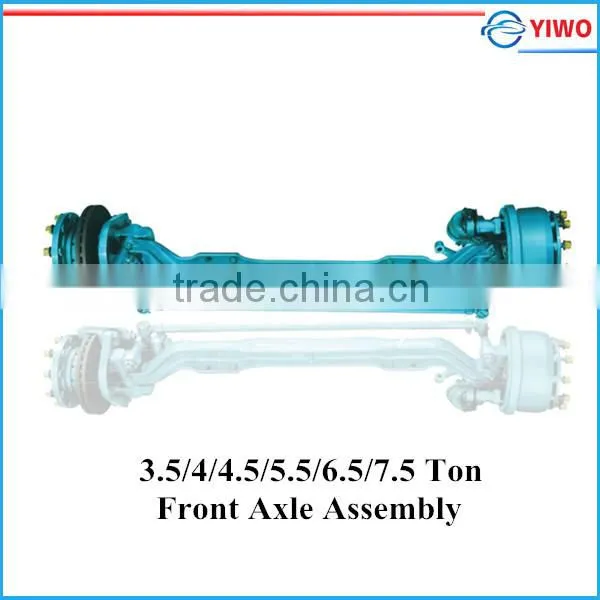

FRONT AND REAR AXLE
| Main technical parameters | |
| Specifications | 4.5T |
| Payload (KG) | 4500 |
| Max.steering angle of front inner wheel | 48° |
| Self-weight (KG) | 400 |
| Track (mm) | 1922 |
| Leaf spring center distance (mm) | 900-920 |
| Kingpin centre (mm) | 1723 |
| Gap of front axle (mm) | 100 |
| Diameter of hub bolt distributed cicular (mm) | Φ275 |
| Brake specification | Φ400*135 |
| Kingpin inclination angle (mm) | 6° |
| camber angle | 1° |
| Toeing-in (mm) | 0-2 |
| The front axle apply to all types of bus, truck, and are optional with ABS, disc brake and air suspension | |
Warranty
Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period, in case of material or workmanship has occurred with spare sparts in normal operation, the defective part will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.
Spare Parts
Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a part price list for purchase.
Installation and Maintenance
Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.If necessary, we will send technicist to site guidance.
Technical Service
We have strong after-sale technical service team to help you solve all problem during you use our products.
FOR DRIVING AXLE
| Main technical parameters | |
| Specifications | 4.5T |
| Payload (KG) | 4500 |
| Max.steering angle of front inner wheel | 48° |
| Self-weight (KG) | 400 |
| Track (mm) | 1922 |
| Leaf spring center distance (mm) | 900-920 |
| Kingpin centre (mm) | 1723 |
| Gap of front axle (mm) | 100 |
| Diameter of hub bolt distributed cicular (mm) | Φ275 |
| Brake specification | Φ400*135 |
| Kingpin inclination angle (mm) | 6° |
| camber angle | 1° |
| Toeing-in (mm) | 0-2 |
| The front axle apply to all types of bus, truck, and are optional with ABS, disc brake and air suspension | |
1. Wooden pack or as your requirement .
2.Delivery date: 30 days once confirm the order .
