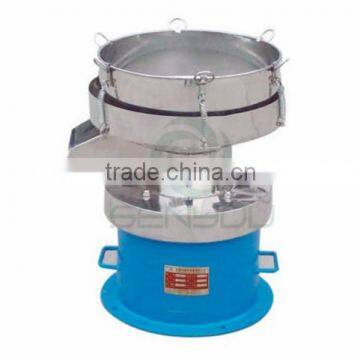

450 Type Stainless Steel Vibrating Sieving Machine

450 Type Stainless Steel Vibrating Sieving Machine photo-1
450 Type Stainless Steel Vibrating Sieving Machine photo-2
450 Type Stainless Steel Vibrating Sieving Machine photo-3
US$ 800 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
SENYOU
Model Number:
SY-450
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name SENYOU
Model Number SY-450
Type Grain Processing Equipment
After-sales Service Provided No overseas service provided

450 type stainless steel vibrating sieving machine

Product Description

450 type stainless steel vibrating sieving machine are designed to cover all aspects of sieving and screening applications but we offer the flexibility to reconfigure any machine to fit into almost any situation. We can also use our technical expertise for prototypes and bespoke machinery projects.

stainless steel rotary sieve shaker segregates solids from liquids or dry material into various particle sizes ranging from 0.05mm(300mesh) to 5mm(3mesh)Screens are easy and fast to change

The shaker is avaiable constructed of carbon steel, stainless steel AISI 304

Features
1. SY-450 sifter is suitable for powder liquid granular product uses a small variety
2. The hydraulic integrally formed hopper give you five years of the life assurance



OPERATION

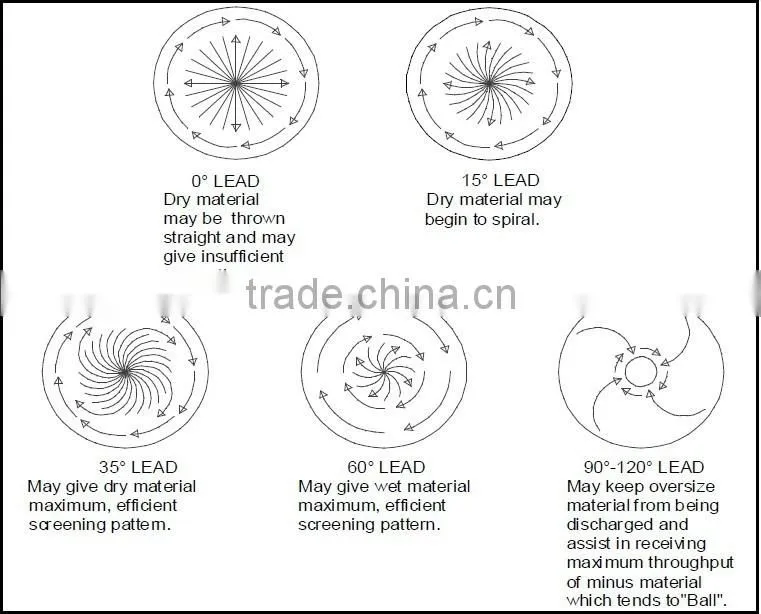

450 type stainless steel vibrating sieving machine  is develop in both the horizontal and in the vertical plane and can be adjusted in both directions, vibration is accomplished by eccentric weights positioned on fly wheels on the upper and lower ends of the motion generator shaft.



Adjusting the counterweights on the fly wheel is rapid and tool free. This adjustment allows modifing the vibration pattern to find the best sieving action for a particular product.



The ability to adjust the vibration pattern results in the high screening efficiency both with liquid and solid products.



450 type stainless steel vibrating sieving machine





Company Information

Xinxiang Senyou Mechanical And Electrical Co.,Ltd. is a trust-worthy technological machinery enterprise. Rich experience in sieving technology, innovative and efficient design has brought Senyou Sieves to the highest levels of efficiency and reliability.



Senyou sieves can be modified and adapted to suit a wide variety of customer requirements.



For almost 15 years, Senyou’s mechanists has been providing excellence in the manufacture and supply of sieve, sifter, screener and separator machinery to some of the largest companies across the Global. From food to pharmaceuticals, and everything in between, Senyou has got the answer to your needs with functional, technically superior, yet elegantly simple sieving machinery that keeps our customers much more than just 'satisfied' with our products. It is this dedication and adhesion to strict working practices that has earned us our ISO 9001 certification, so you can be sure our quality is measured and consistent.  450 type stainless steel vibrating sieving machine





APPLICATION

Applies to:
Western medicine powder , food, chemicals , cosmetics , rubber , plastic, resin powder , ore , clay powder, liquid , powder metallurgy, metal powder
Electronics industry , feed, fruit juice and beverage industry , paint industry , waste water, the old oil , environmental classes , health food, tea industry etc .

450 type stainless steel vibrating sieving machine

Technicals

450 type stainless steel vibrating sieving machine



Model

Power

(KW)

Diameter (mm)

Weight

 (kg)

Dimensions

(mm)

Type

Material

SY-450-A

0.18

Ø447

36

450×520×630

Fixed

100% SUS304 stainless steel

SY-450-B

36

450×520×630

Fixed

Body is SUS304 stainless steel, and base is SS41 steel with multi- layer anti-rust treatment .

SY-450-C

44

470×630×910

Movable

SY-450-D

44

470×630×910

Movable

100% SUS304 stainless steel



Packaging & Shipping

 450 type stainless steel vibrating sieving machine





Our Services



Senyou Family understand the value of time. In most of today's industries, efficiency of manufacture and quality of product are two minimum factors many companies require to achieve maximum market effectiveness. This is why all of our sieves, screeners, separators and grading machines are ergonomically designed in such a way to ensure that they can be used with minimum training and safely dismantled without tools. This also allows fast yet thorough cleaning, and thanks to their years of ongoing development and testing, they are certainly built to last a lifetime. For further peace of mind we provide a lengthy warranty period with full spares support and a rapid response re-meshing service. A wide range of accessories is available to provide users with interface connections and added benefits and, if neccessary, we can also re-mesh any type of all size of mesh ring or frame you already use in other sieving or screening machines.
