high frequency 450 type automatic vibratory stainless steel filtering sieve
Product description
SY450 is one of our best selling products. The smallest powder it can screen is 400
mesh. It is high efficiency&accuracy. For example, it can filter 1200 liters painting
materials of 325 mesh one hour, and 700 kg flour of 30 mesh per hour. Now it begin
to be applied for screening flour in bakeries,fruit and vegetable juice or soya bean milk.
Features
1.spare parts touch with the materials are made of SUS304
2.high efficient, precise
3.It can screen very fine powder up to 500 mesh. the most fine powder
it filter up to 5 micron
4.long service life, easy to clean and replace its screens
5.light,small size, conveinient to move, its outlet can be adjusted
6.high work efficiency,low noise
7.Simple structure,and easy installation and operation,save labor force
Structure
Technical parameters
Power |
0.18kw |
Effective Screen Diameter |
380mm |
Amplitude |
2-4mm |
Normal Voltage |
380V/50Hz,460V/60Hz or as your requirement |
Dimension |
460mm×550mm×665mm |
Detail
The eccentric hammers change rotation into horizontal,vertical and inclined movement then pass power to sieving surface.Adjusting the phase angle on top and bottom can change trajectories of materials on the sieve.
a.upright vibration motor ,
b. single flange special design------easy to operate
c.low noise,low consumption,
d.powder can be customized ,
e.simple machine structure,
f.exciting force / angle adjustable ,
g.sealing design to make it stably operate in high-dust and
high-humid working environment
Application
It is widely applied for screening or classifying liquid or solid materials of small quantity
or with less impurity. For example, screening flour in bakeries, fruit and vegetable juice
or soybean milk,chemical powder.
Material:SUS304
The thickness of our stainless steel more than 2mm compared with other
suppliers 1.6mm-1.7mm
Mesh
Packing & Shipping
Company Information
Xinxiang Senyou Mechanical and Electrical Co., Ltd., is a technological machinery
enterprise created by a team of long time machinery engineers. Senyou has strong
technical force of mechanical development and rich production experience.
Since its production, Senyou makes every effort to produce multi-functional machines with modern design, and high practicability & reliability, there is a great innovation in our products, improved the lack of similar products, therefore Senyou wins a wide favors from customers.
Certification

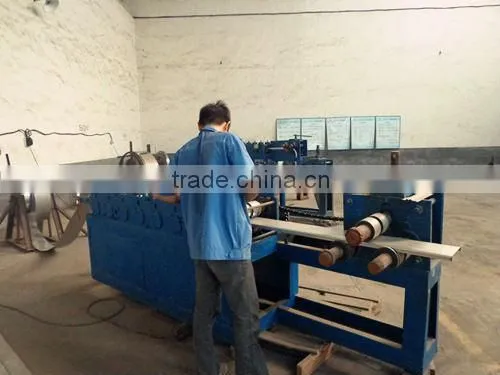

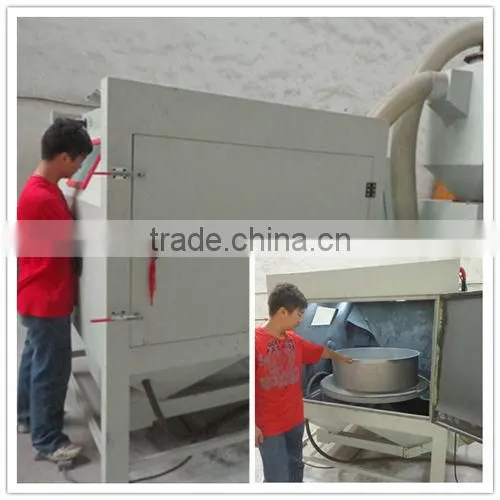

Shows of Workshop
To help you choose a suitable machine,pls kindly provide these following datas:
1.Raw materials:name, size, structure,water proportion ,viscosity,temperature or others
2.Purpose: grade, filter, edulcoration
3.Handling capacity: kg/hour or liter/h
4.Screen Size(mesh/mm)
5.Working time
6. Other special requirements, like temperature, resistance and other media.
