Wheel Loader 968 With Cummins 175KW ZF Transmission

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Wheel loader 6t, pilot control, joystick,6t wheel loader for sale
Shangchai engine Rated Power 175kw
Bucket Capacity 3.5m3

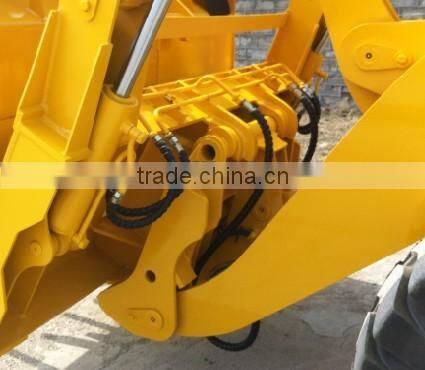

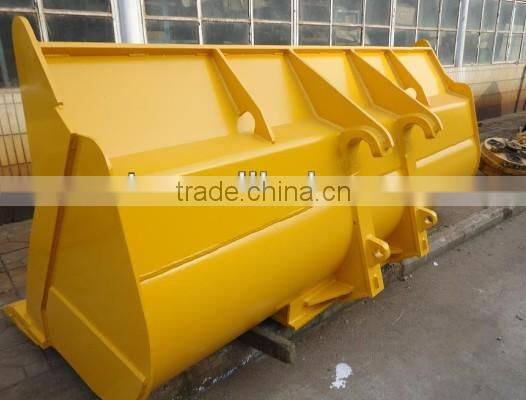

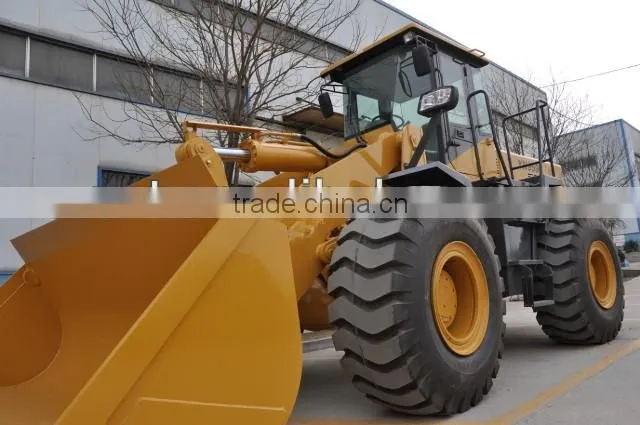

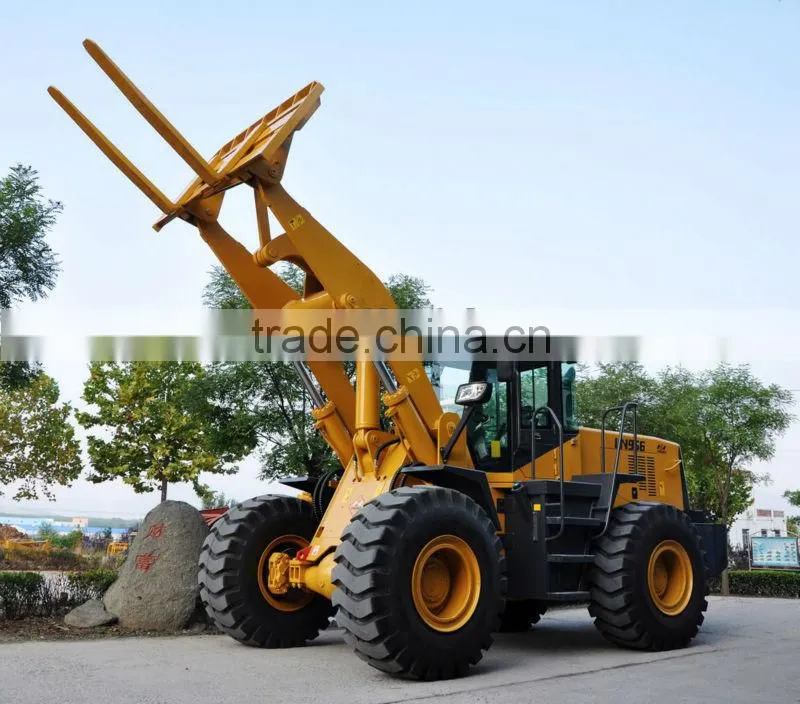

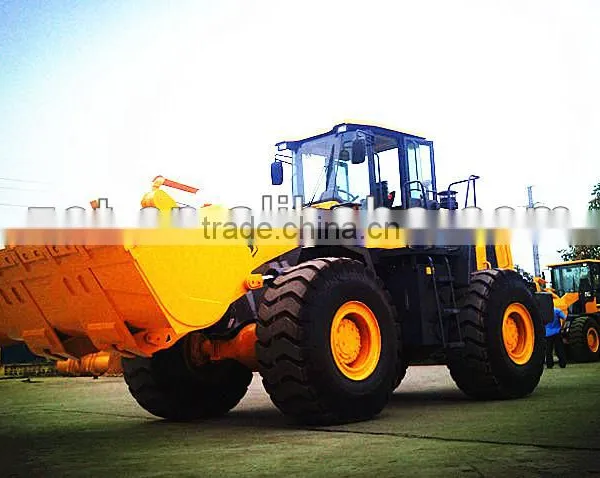

wheel loader 968 with Cummins 175KW ZF transmission

PHOTOS:

SPECIFICATIONS:

rated load		6000KG
overall weight		18200KG
rated bucket capacity		3.8m3
maximum tractive force		158KN
maximum breakout force		204KN
overall dimension (L×W×H)		7965×3050×3470mm
maximum grade ability		30°C
maximum dump height		3448mm
maximum dump reach		1249mm
minimum turning radius		7020mm
model		Commins 6BTAA-C215
type		lnline water cooling dry cylinder injection
No. of cylinder-bore/stroke		6-126×130mm
rated power		175kw--2200r/min
maximum torque		950N.m
min fuel-consume ratio		≤220g/kw.h
torque converter		YJ375
gearbox mode(WG180)		Planectary
gear shift	forward shift	4 reverse shift
maximum speed		38km/h
:main reducing spiral		bevel gear grade 1reduction
decelerating mode		planetary reduction,grade 1
wheel base (mm)		3200mm
wheel tread		2250mm
minimum ground clearance		450mm
system working pressure		17MPa
boom lifting time		6.05+0.25s
total time		10.8+0.5s
fuel tank capacity		300L
function of leveling automatically		yes
service brake		air over hydraulic disc brake on 4 wheels
parking brake		manual parking brake
type specification		26.5-25
front tyre pressure		0.4Mpa
rear tyre pressure		0.35Mpa
