1.8 ton mini wheel loader T936L with air condition and joystick control for sale
1. Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;
2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction;
4. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
5. Brake system adopts single-line, hydraulic, expansion-shoe brake on 4 Wheels;
6. This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
7. The gearbox of this wheel loader adopts electronic speed control valve to lower manual labor, make the operation more comfortable and increase working efficiency;

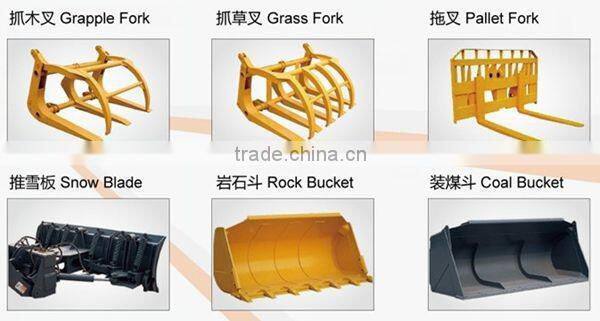

8. This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
Z O T Guided by market, bulid brand by quality, develop by innovation.
| Item | T915L | T926L | T930L | T933L | T936L | T939L |
| Loading Capacity(kg) | 1100kg | 1400 | 1500kg | 1500kg | 1800kg | 1900kg |
| Operating weight(kg) | 3050kg | 4200 | 5000kg | 5000kg | 5600kg | 6000kg |
| Max Tractive Force(Kn) | 27kN | 32 | 42kN | 42kN | 45KN | 60KN |
| Dumping Height(mm) | 3000mm | 3300 | 3400mm | 3400mm | 3500mm | 3500mm |
| Dumping Distance(mm) | 850mm | 1030 | 970mm | 970mm | 900mm | 900mm |
| Grade ability(%) | 35% | 35 | 35% | 35% | 35% | 35% |
| Min Turning Radius(mm) | 4300mm | 4800 | 5200mm | 5200mm | 5500mm | 5500mm |
| Dimensions | ||||||
| Length(mm) | 5300mm | 6005 | 6015mm | 6015mm | 6130mm | 6130mm |
| Width(mm) | 1720mm | 1926 | 2200mm | 2200mm | 2200mm | 2200mm |
| Height(mm) | 2700mm | 2805 | 2970mm | 2970mm | 3010mm | 3010mm |
| wheel base(mm) | 2115mm | 2300 | 2510mm | 2510mm | 2660mm | 2660mm |
| Tread(mm) | 1350mm | 1520 | 1550mm | 1570mm | 1675mm | 1675mm |
| The minimum clearance | 250mm | 270 | 350mm | 350mm | 350mm | 350mm |
| Engine | ||||||
| Manufacturer | Quanchai | Yunnei | Yunnei | Yunnei | Yunnei | Yuchai |
| Model | QC2015 | YN490 | YN33 | YN36GBZ | YN38GBZ | YC4D80-T20 |
| Power(Kw) | 24kW | 37kW | 48kW | 65kW | 76KW | 58KW |
| Transmission | ||||||
| Converter Tyre | Six Axis Transmission | 265gearbox and converter | 265torque converter | 280torque converter | 280gearbox and converter | 280gearbox and converter |
| Low speed(km/h) | 4/7 Km/h | 0~9 | 0~11Km/h | 0~11Km/h | 0~11Km/h | 0~11Km/h |
| High Speed(km/h) | 16/29 Km/h | 0~24 | 0~27Km/h | 0~27Km/h | 0~27Km/h | 0~27Km/h |
| Service Brake | Hydraulic brake | air brake | air brake | air brake | air brake | air brake |
| Axles | Isuzu Strengthen Axles | ZOT | ZOT | ZOT | ZOT | ZOT |
| Battery | 6-QW-60MF | 6-QW-80MF | 6-QW-80MF | 6-QW-80MF | 6-QW-100MF | 6-QW-100MF |
| Cabin | Luxury | Luxury Cabin | Luxury | Luxury | Luxury | Luxury |
| Chair | Luxury | Luxury Chair | Luxury | Luxury | Luxury | Luxury |
| Steering System | ||||||
| Type | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering |
| Steering Angle(°) | ±33° | 33° | ±33° | ±33° | ±33° | ±33° |
| Hydraulic system | ||||||
| System Pressure(Mpa) | 16MPa | 16 | 16MPa | 16MPa | 17MPa | 17MPa |
| Total Time(s) | ≤9s | ≤9 | ≤9s | ≤9s | ≤10s | ≤10s |
| Oil Tank | ||||||
| Fuel Tank(L) | 75L | 80 | 90L | 90L | 90L | 90L |
| Hydraulic Oil Tank(L) | 75L | 80 | 90L | 90L | 90L | 90L |
| Tyre | ||||||
| Model | 14/90-16 | 16/70-16 | 16/70-20 | 16/70-20 | 16/70-24 | 16/70-24 |
| Front tyre Pressure(Mpa) | 0.3MPa | 0.3 | 0.33MPa | 0.33MPa | 0.33MPa | 0.33MPa |
| Rear tyre Pressure(Mpa) | 0.28MPa | 0.28 | 0.30MPa | 0.30MPa | 0.30MPa | 0.30MPa |
| Bucket | ||||||
| Capacity(m³) | 0.45m³ | 0.6 | 0.75m³ | 0.75m³ | 0.95m³ | 0.95m³ |
Shandong ZOT Machinery Co.,LTD. is a member of SDLG group , which is specialized in manufacturing wheel loader, backhoe loader, road roller, motor grader and other construction machinery. We devote ourselves to improving quality and building good brand. We need profit as well as long term business relationship.
Choosing ZOT machines is the first step to saving money!

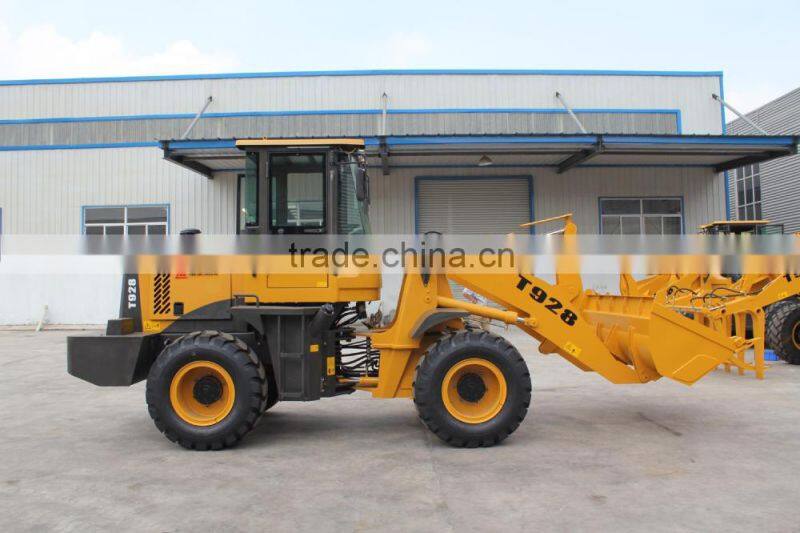

Details of the loaders:
Our warranty: because of high quality, we are confident to give our customers 2 years warranty!
Our service: Spare parts being supplied in time; Engineers is available to your place; service center is available in some country.
Shipping and packing: Being shipped by container
Delivery time: within20days after getting deposit
Payment terms: 1. 30%deposit by TT, 70% balance before shipment or after the copy of B/L. 2. 100% Irrevocable L/C at sight.
My factory:

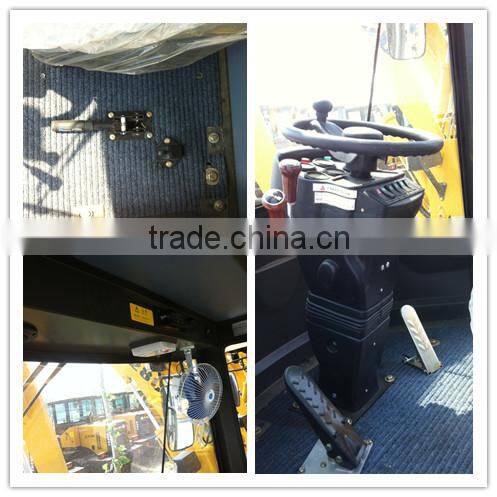

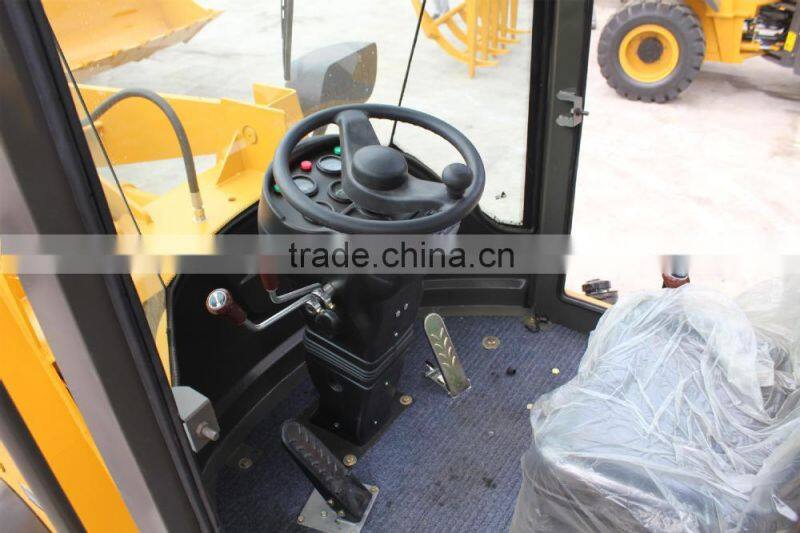

Details Photo:

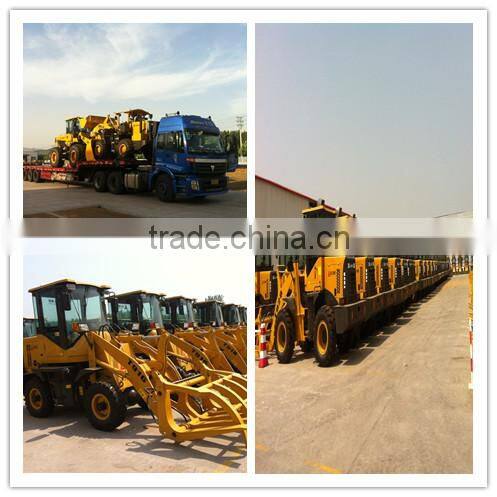

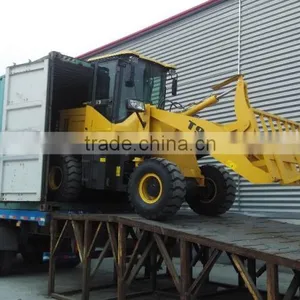

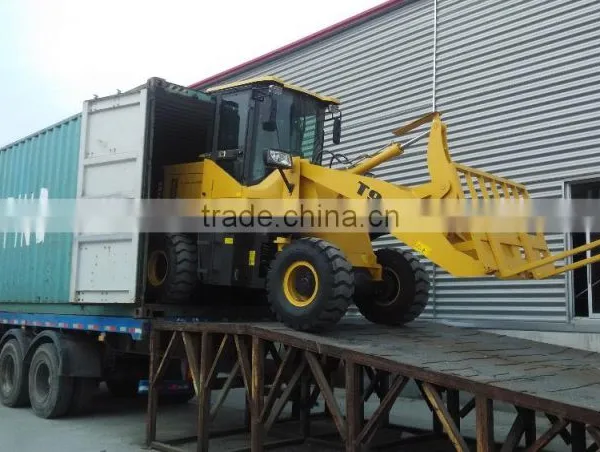

Shipping by container:
