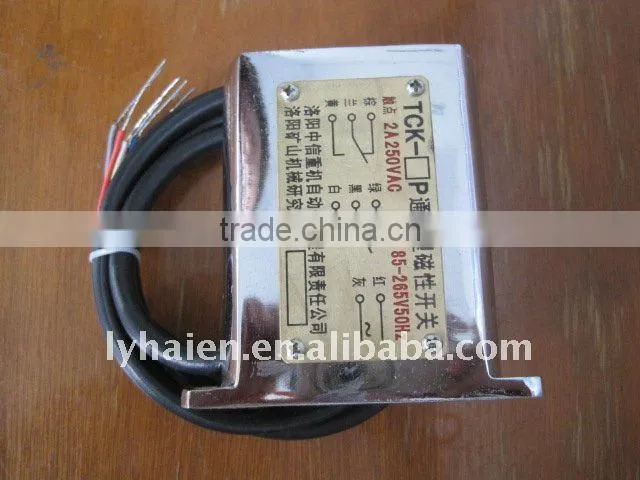

TCK-1P Magnetic Switch

Specifications

1. new technique, aerial material, power consumption is 50 milliwatt
2. anti-interference
3.accurate determination of position

TCK serial magnetic switch is a kind of non-mechanical-contact magnetic switch. It is made up of magnetic sensor and the electronic circuit and the output switch.  When the magnetic objectgoes into the induction area of the magnetic switch, with the effectof the magnetic field, the switch works, output the switch signal.

The output signal will be the control signal to reflect the position, moving direction of the object.



This product applied the advanced weaken magnetic sensor and micro-electronic device, having the nature of high sensitivity, high resolution ratio and wide response frequency. There are two ways of output: AC SSR and EMR. The design adopts high reliable technique. Two electronic circuit are designed for each function, parallel connection. The switch will work properly unless the two sets of the electronic-circuits are invalidate.



TCK serial magnetic switch employs a serial of advanced technique, achieving the high technical specification and performance, thus working safely & reliably without maintenance. TCK magnetic switch is a new model switch used in the pit shaft to protect the hoister running safely. There are two types of switches, i.e. the general type and the explosion-proofing switch, applicable of all shaft.
