Help CenterHydraulic Pressure Station
Related Products
Specifications
hydraulic pressure station1. Simple structure;
2.Advanced quality control process
3. Reliable quality;

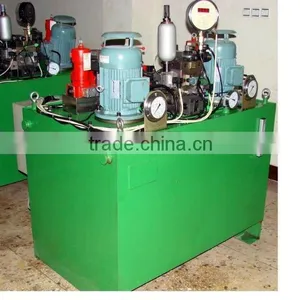

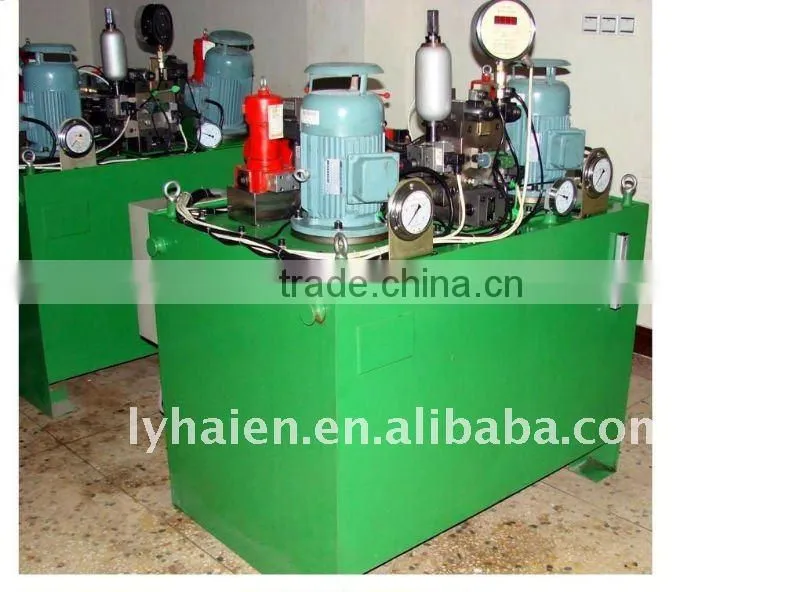

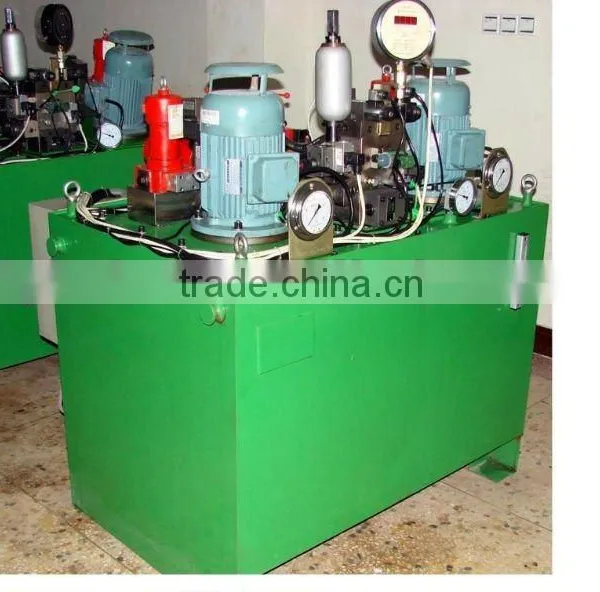

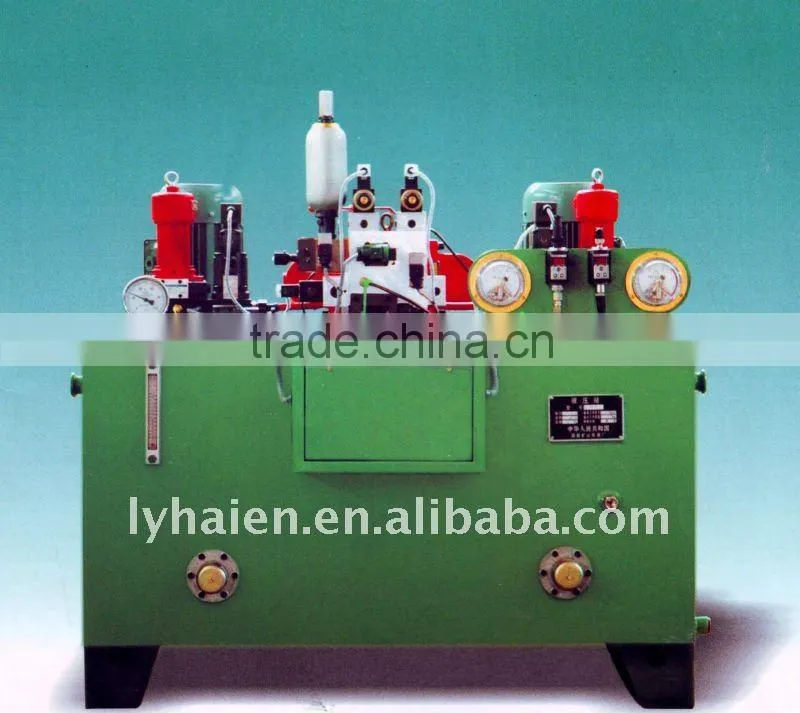

hydraulic pressure station
The hydraulic station is the primary assembly parts for the mine hoister, it combined with the disc brake to be a whole set of braking system. The hydraulic station provides the adjustable pressure oil for the disc brake, thereby the hoister obtain variable braking torque so that the hoister properly runs, regulates the speed and shuts down. At any emergency condition, the oil pressure of the disc brake will be reduced to the desired value. After deferred, the value of the oil pressure will recover zero instantly, and the hoisting system is at the status of full application of brake.
Hydraulic Power Unit:
a) ISO9001:2008.
b)Advanced quality control process
c) Specilized in standard and non-standards design
Hydraulic Power Unit:
It is an independent hydraulic device. It feeds fuel and controls the direction, pressure, rate of oil flow according to the requirements of drive device (the host). It applies to various hydraulic machinery if the host can separates from the hydraulic equipment. Customers after purchase will only need to connect the hydraulic station and actuating equipments (tanks and oil motors) on host with pipes. Then hydraulic machinery can realize various regulations of action and cycle work.
Structure of Hydraulic Power Unit :
Hydraulic pump station is composed by pump device, integrated block or valve combination, tank, and electrical box.
Functions of each component of Hydraulic Power Unit :
Pump device——there are motor and oil pump on it. It is the power resource of hydraulic station and will convert the mechanical energy into hydraulic fluid power energy.
Integrated block——it is composed by hydraulic valve and channel, which can adjust the direction, pressure and rate of hydraulic fluid.
Valve combination——is the plate valve installed in the riser which is tube connections behind board with the same function of integrated block.
Tank——it is a semi-closed container welded by steel plate and equipped with oil-filter screen, air filter, etc. to be used for oil storing, cooling and filtering.
Electrical box——it is divided into two forms. One is set with the external lead terminal board; another one is equipped with a full set of control appliances.
Working Principle of Hydraulic Power Unit:
a)Motor drives pump rotating, pumping oil and converting the mechanical energy into hydraulic fluid pressure energy.
b)Hydraulic oil goes through integrated block (or valve combination).
c)After the direction, pressure and rate of the hydraulic oil is adjusted by hydraulic valves, it is transported to cylinder or motor of the hydraulic machinery by external pipeline. Thus the pump station successfully controls oil transmission direction, strength and speed of hydraulic machinery and promotes a variety of hydraulic machines to work.
After sale-- service of the Hydraulic Power Unit:
We offer one year product guarantee on the quality, and free of charge on the spare parts.
