Help Center22T Full Hydraulic Double Drive Road Roller With Cummins Engine ,sheep Foot for Sale
Related Products
-
18Ton Mechanical Single Drum Road Roller With Cummins Engine ,sheep Foot for SaleUS$ 30,000 - 50,000MOQ: 1 Unit -
China 30ton 4+5 Tyre Road Roller CompacteurUS$ 53,000 - 58,000MOQ: 1 Unit
-
SDLG XCMG 10-22Ton Single Drum Vibrating Road Roller With Cummins/Shanghai Diesel Engine for ExportingUS$ 30,000 - 60,000MOQ: 1 Unit
-
SDLG XCMG 10-18Ton Single Drum Vibrating Road Roller With Cummins/Shanghai Diesel Engine for ExportingUS$ 30,000 - 60,000MOQ: 1 Unit
-
SDLG XCMG 10-14Ton Single Drum Vibrating Road Roller With Cummins/Shanghai Diesel Engine for ExportingUS$ 30,000 - 60,000MOQ: 1 Unit
Specifications
1.18T road roller with cummins engine2. sheep foot
3. Hydraulic
4.single drum
5. good quality and competitive price
HYDRAULIC SINGLE DRUM ROAD ROLLER
1.Shandong ZOT Machinery Co.,LTD is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
2. The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of T series loader, G series loader, Backhoe loader, Road roller, Motor grader, Excavator, Paver, Bulldozer, Forklift, Truck crane, Rim, Valve, etc..
SDLG-ZOT brand Vibratory road roller,
Hydraulic driving type: S812H,S814H,S816H,S818H,S820H,S822H (10t-22t)
Shangchai engine, Cummins engine, Detuz engine
SDLG axle
SAUER or PERMCO hydraulic system
Delivery time: 7-10 days normaly
Mechanical driving type: S812C, S814C, S816C,S818C, S820C, S822C, S826C(14t-26t)
Shangchai engine, Cummins engine,
SDLG axle
SAUER or PERMCO hydraulic system
Delivery time: 7-10 days normaly
Technical specification
Type |
Unit |
S812C |
S814C | S816C | S818C |
Operating weight |
kg |
12000 |
14000 |
16000 |
18000 |
Weight on front drum |
kg |
6700 |
7000 |
7700 |
9000 |
Static linear load |
N/cm |
308 |
322 |
362 |
422 |
Speed range |
km/h |
0~10.4 |
0~10.5 |
0~10.51 |
0~10.51 |
Theoretical gradeability |
% |
45 |
30 |
30 |
30 |
Min. external turning radius |
mm |
6800 |
6800 |
6500 |
6500 |
Steering angle |
° |
±30 |
±30 |
±33 |
±33 |
Oscillating angle |
° |
±10 |
±11 |
±11 |
±11 |
Vibration frequency(L/H) |
Hz |
30 |
28 |
28 |
28 |
Nominal amplitude(H/L) |
mm |
1.80/0.9 |
1.9/0.95 |
1.9/0.95 |
1.9/0.95 |
Excitation force(H/L) |
kN |
290/180 |
274/137 |
290/145 |
320/160 |
Drum width |
mm |
2130 |
2130 |
2130 |
2130 |
Engine model |
|
Cummins 4B3.9 |
SC5D125G2B1 |
SC8D156.2G2B1 |
SC8D156.2G2B1 |
Type |
|
Water cooled, turbo-charged, air intercooling |
Water cooled, pressurized |
Water cooled, pressurized |
Water cooled, pressurized |
Rated power |
kW |
93 @2200r/min |
92 @2200r/min |
115@1800r/min |
115@1800r/min |

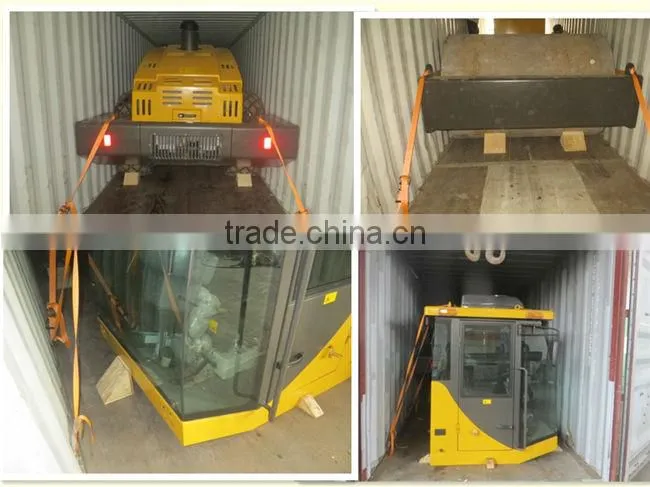

18T road roller can be put in the 40HQ container, should remove the cab

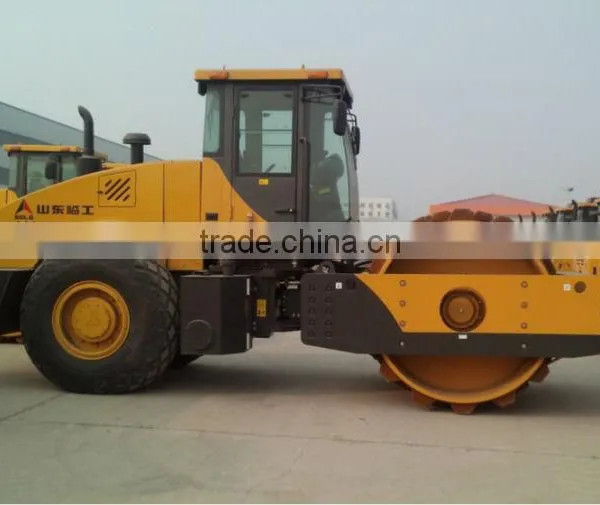

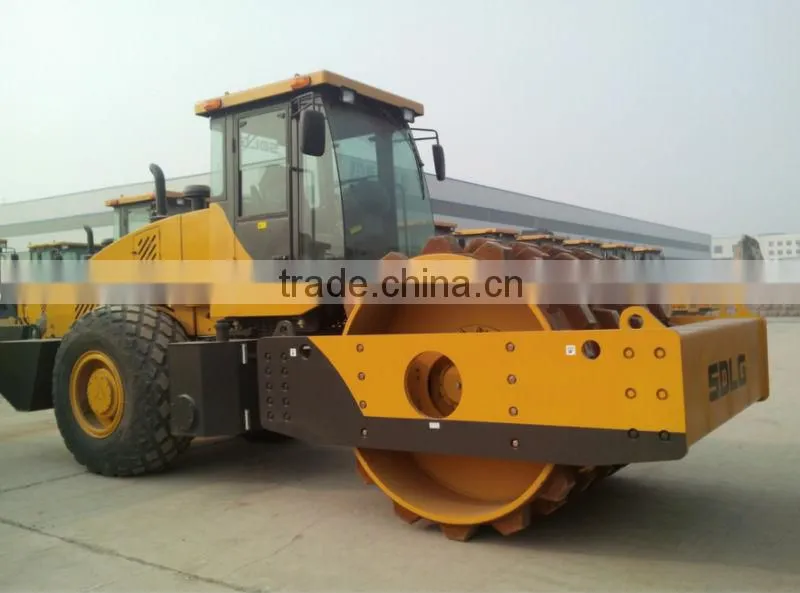

S818 mechanical single-drum vibratory road roller is a heavy-duty auto-propelled vibratory road roller and can effectively compact various soil layer and rock fill. This machine is of industrial leading level in compacting, driving and operating performances and reliability, repair and maintenance It is ideal compacting equipment for road, airport, harbor, railway, dam and industrial site.
1. It is equipped with the Weichai engine meeting the requirements of China II stage emission standard, with strong power, reliable energy saving and fuel saving for more than 18%; The engine configuration is started up with thickening function.
2. Synchro mesh transmission case is used, with three front gear positions and three rear gear positions, middle-position startup and reversing warning function, has stable shift performance and is light and comfort to operate; SDLG special reinforced drive axle is provided, with reliable performance and is convenient for maintenance.
3. International famous brand of vibration pump is used, with vibratory motor, stable quality and reliable performance.
4. Engine hood adopts electrically-controlled linear actuator and can be open up by one key, with large opening angle, reasonable layout for repair position and is convenient for repair and maintenance.
