Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Compactor > China 30ton 4+5 Tyre Road Roller Compacteur

China 30ton 4+5 Tyre Road Roller Compacteur

US$ 53,000 - 58,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Tire Roller

Travel Speed:

16km/h

Contact Supplier Request Quote Chat Now

Shandong Zot Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Tire Roller

Travel Speed 16km/h

Grade Ability 20%

Place of Origin Shandong, China

Brand Name ZOT

Model Number P830C

Power(W) 132kw

Dimension(L*W*H) 5050x2600x3300

Weight 30000kg

After-sales Service Provided Engineers available to service machinery overseas

Specifications

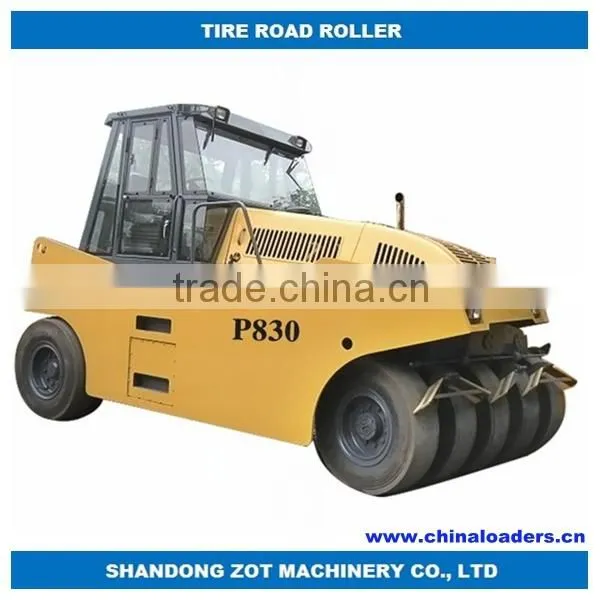

ZOT P830C 30ton tyre road roller
CAT engine 132kw
Cooling and heating air conditioners
Double steering wheels

ZOT 30ton 4+5 Tyre Road Roller Compacteur

Product Description

1. The engine, transmission box and drive axle etc of the whole equipment is of domestic and foreigh well-known brands and the whole equipment is characterized by reasonable matching, high performance, energy saving and high efficiency.

2. The rear wheel driving is of two-wheel design, with simple and practical structure and convenient repair.

3. The advanced oil sprinkling function design makes the use and adjustment convenient and fast.

4. The equipment is equipped with cooling and heating air conditioners , double steering wheels and doble seats and the sealing property of the cab is good, with low-noise design, the operation is comfortable.

5. The engine hood is easily to be opened and the rear part of the equipment body us of overturning cover plate design, making the inspection, regulation and servicing and maintenance of sprinker system, braking system and chain very easy and convenient.

ITEM	PARAMETER	ITEM	PARAMETER
Operating weight	30000kg	Main drive of drive axle	Spiral bevel gear first-stage reduction
Basic weight	14000kg	Drive axle wheel reduction	Chain
Axle base	4000mm	Running speed	0-16km/h
Working width	2525mm	Working speed	0-7km/h
Tire weight	3333kg	Tires specification	13/80-20-16PR
Swing weight of front wheel	±50mm	Tires pressure	0.6Mpa
Number of tire	4+5	Service brake	Double pipeline, air, over hydraulic drum, type braking
Tire overlapping	50mm	Braking pressure	0.6-0.8Mpa
Theoretical grade ability	20%	Parking brake	Air-over hydraulic disc type brake
Minimum ground clearance	290mm	Steering type	Fully hydraulic steering
Overall dimension:	5050x2600x3300	Steering angle	30°
Engine model	SC8D180G2B1	Swing angle	5°
Power form	inline, water-cooling, 4-stroke, direct injection	Min turning radius	9000mm
Number of cylinder-cylinder diameter x travel	6-114x135	Turning working pressure	14Mpa
Maximum torque	700Nm	Fuel capacity	250L
Rated power	132kW	Hydraulic oil capacity	100L
Rated rotation speed	2000r/min	Engine refueling capacity	19L
Minimum fuel consumption ratio	≤205/kW.h	Gearbox refueling capacity	30L
Gearbox	Hydraulic gear shifting gearbox	Drive axle refueling capacity	25L
Transmission type	Power gear shifting

Materials and specifications are subject to change without further notice in accordance with our continuous technical innovations. Photos and illustrations may include additional equipment.

Packaging & Shipping

Nube or 40HC ( disassembled )

Our Services

Six Free Services

1 Free technical enquiries with our experts.

2 Free repair service during warranty period

3 Free special services for all key construction projects.

4 Free 0 hour service upon deliver of machine
5 Free training of operators and repairs staff under agreement.
6 Free maintenance service tracking (customer to provide resources)

International Online Customer Service Support Center (Call Center)

International service hotline: +86-531-55701737
Fax: +86-531-55701738

Product and Technical Inquiries

We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.

Special Services for Key Projects

If ZOT machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from ZOT(free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.

Customer Visits

After a set service period, we measure and analyze the customer's conditions and requirements to improve our service quality. We also provide users with suggestions on how to improve their business capabilities. We invite some customers to observe the developmental process and testing of our new products. This is all to establish a customer visit system, and improve communications between ZOT and customers.

Win Time Service

Time is money. With the support of 98 agencies spread all over China, ZOT has formed a complete after-sales service network, and owns many after-sales service devices. service person can obtain necessary information quickly, providing timely service to decrease downtime and increase customer profits.
