8ton Excavator Mini Wheel Excavator 6ton,7ton,8ton,10ton for Exporting

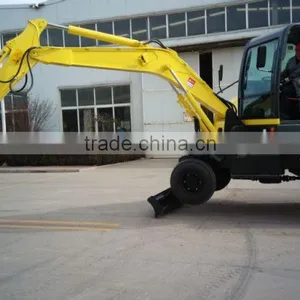

8ton Excavator Mini Wheel Excavator 6ton,7ton,8ton,10ton for Exporting thumbnail-1
8ton Excavator Mini Wheel Excavator 6ton,7ton,8ton,10ton for Exporting photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
ZOT
Model Number:
ZE908
Contact Supplier Request Quote Chat Now
Shandong Zot Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name ZOT
Model Number ZE908
Condition New
Moving Type Wheel Excavator
Operating Weight 8000kg
Bucket capacity 0.4
Maximum Digging Height 6590mm
Maximum Digging Depth 4721mm
Machine Weight 8000kg
Max Digging Radius 67560mm
Rated Speed 32km/h
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

mini wheel excavators

8ton excavator mini wheel excavator 6ton,7ton,8ton,10ton for exporting

.Product- advantages

Engine:

XinChai(A498BPG)- standard form 40Kw/2300rpm &compression-adding type 48Kw/2300rpm with low fuel consumption, low noise and large power reserve

Primary pump:

Kawasaki main pumps from Japan, KYB pilot pump or domestic pumps

Master valve:

imported from South Korea with the inner confluence function of boom, arm and bucket& the domestic 183military hydraulic valve with the outer confluence function

Rotary bearing:

full sealed, waterproof, dust and pollution prevention

2.Product- specifications

PERFORMANCE PARAMETER
MAIN PARAMETER
OPERATING WEIGHT Kg 7200
BUCKET CAPACITY m³ 0.3
RATED POWER Kw/rpm 48/2300
MAX.TORQUE N.m/rpm 230/1800
OPERATING PRESSURE Mpa 22
RATED FLOW L/min 55X2
PUMP DELIVERY ml/r 25X2
TRAVELING SPEED Km/h 30
SWING SPEED rpm 9.2
MAX.TRACTION FORCE KN 43.2
BUCKET DIGGING FORCE KN 50
ARM DIGGING FORCE KN 25
GRADEABILITY ° 20
FUEL TANK L 125
HYDRAULIC OIL TANK L 105
WORKING RANGE
A MAX.DIGGING RANGE mm 6758
B MAX.DIGGING DEPTH mm 4721
C MAX.DIGGING HEIGHT mm 4481
D MAX.DUMPING HEIGHT mm 6756
E MIN.TURNING RADIUS mm 4956
F AFTERBODY TURNING RADIUS mm 2431
G MAX.DIGGING RANGE ON THE GROUND LEVEL mm 1951
DIMENSION
OVERALL LENGTH mm 6355
OVERALL WIDTH mm 2000
OVERALL HEIGHT(CAB TOP) mm 2710
OVERALL HEIGHT(BOOM TOP) mm 2617
UNDER BALANCE WEIGHT GROUND CLEARANCE mm 985
MIN.GROUND CLEARANCE mm 280
WHEEL BASE mm 2310
THE DISTANCE BETWEEN THE BOTH SIDE OF TYRES mm 1560
DOZER BLADE WIDTH mm 2024
DOZER BLADE HEIGHT mm 310
BOOM LENGTH mm 3500
ARM LENGTH mm 2000
