Help CenterHydraulic Crawler Excavator 908
Related Products
Specifications
8 ton excavator1. CE certificate.
2. Cummins engine.
3. Top chinese excavator.
4. Operating capacity 8000kgs.
Hydraulic Crawler excavator 908
Technical Specifications:
Operating weight…………………………………8.1t
Standard Stick…………………………………1.65m
Volume of standard bucket………………………0.32m³
Blade ………………………………………………0.42×2.14m
Engine:
Model ………………………………………………YC4108
Rated power……………………………56kw/2200r/min
Displacement ……………………………………4.2L
Throttle control…electric/foot control/hand control
Transmission system:
Gear-box type……………………hydraulic power gear shift
Driving-axle type………………Main drive +final reduction
Braking type of driving-axle…………………Wet brake
Forward/reverse speed 1st gear………………………10km/h
Forward/reverse speed 2nd gear…………………28km/h
Tyre type ………………………………………………12-16.5
Tyre pressure………………………………………………550kpa
Hydraulic system:
Main pump…………………double variables piston -type pump
Oil pressure…………………………………25Mpa
Traveling motor type……………………variable piston motor
Guiding system pressure ……………………………3Mpa
Gear shift pressure…………………………………0.8Mpa
Braking system:
Foot brake ……………………………Full hydraulic wet brake
Foot braking pressure………………………………………5.5Mpa
|

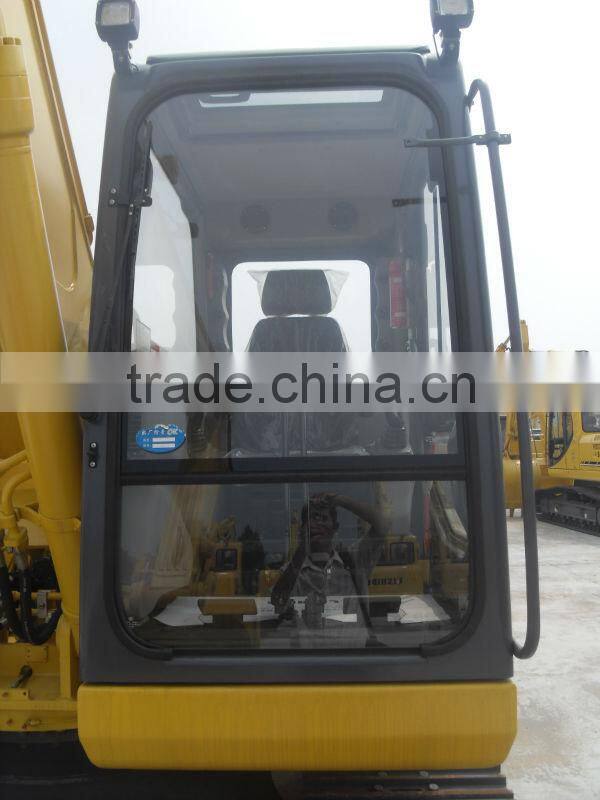

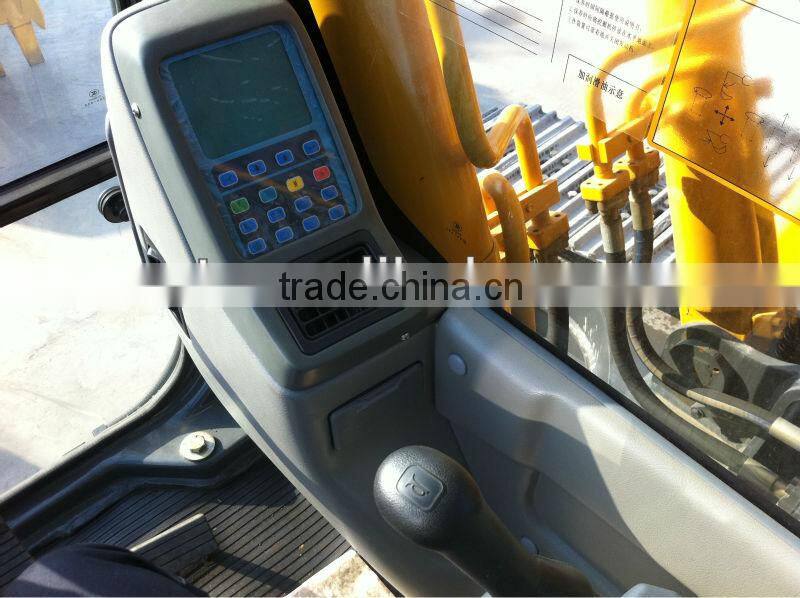

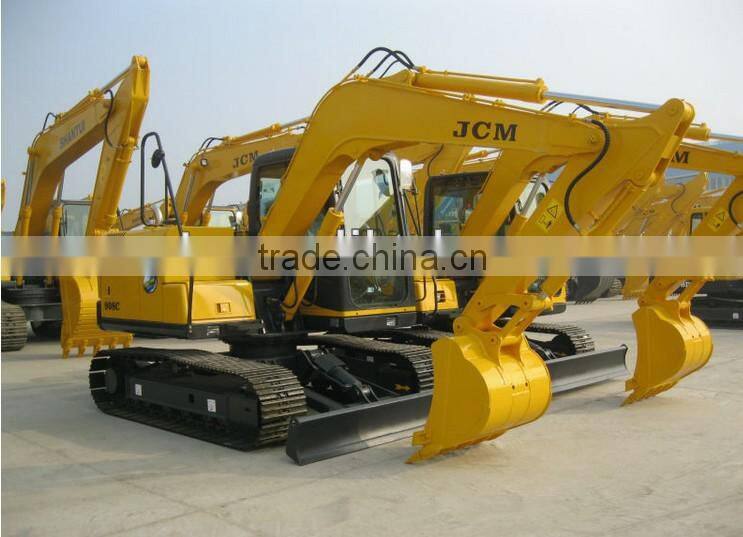

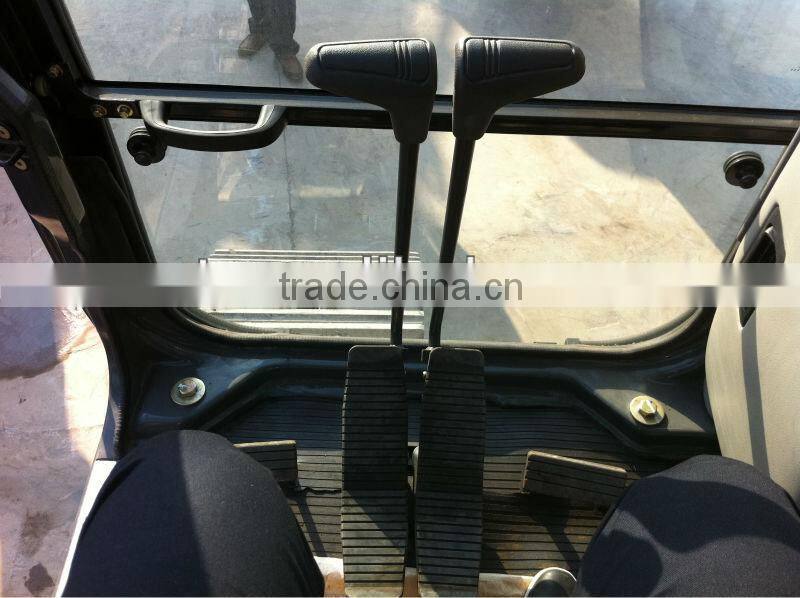

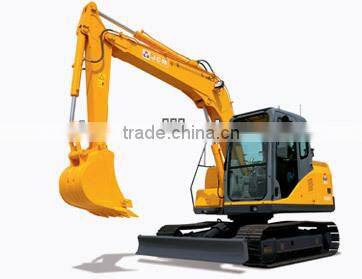

PHOTOS:
|
|||
