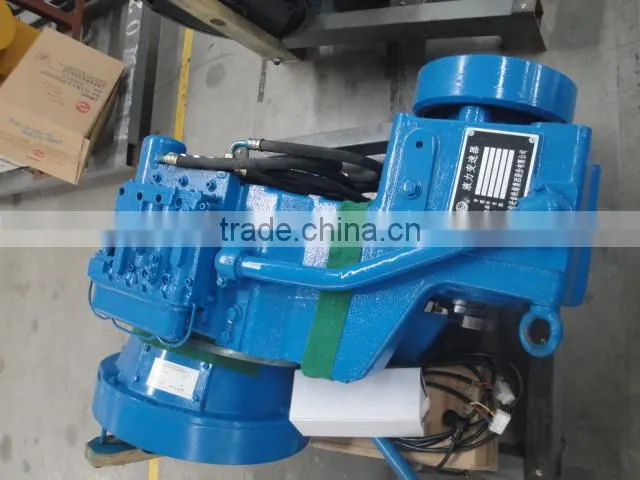

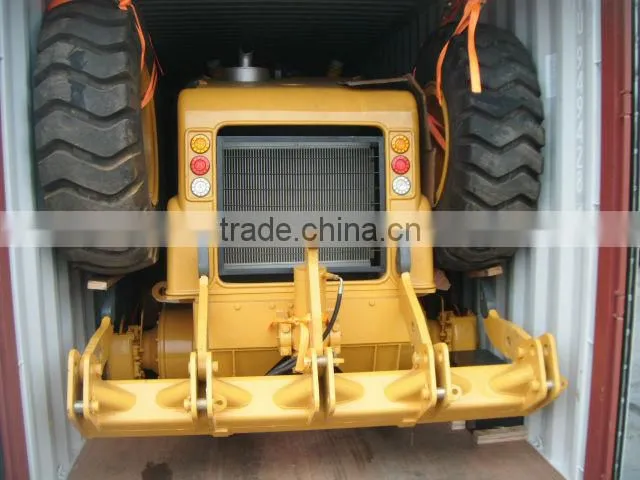

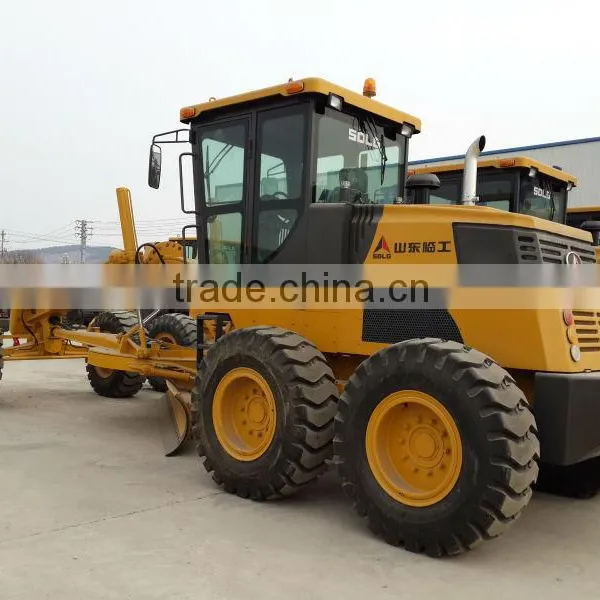

Help CenterChina Made 220HP Sdlg Motor Grader With Shanghai/cummins Engine ZF6WG180 Transmission
Related Products
-
China Made 200HP Motor Grader With Shanghai/cummins Engine ZF6WG180 TransmissionUS$ 71,800 - 88,800MOQ: 1 Unit -
China 220HP Motor Grader With Shanghai/cummins Engine ZF6WG180 TransmissionUS$ 71,800 - 88,800MOQ: 1 Unit
-
China 180HP SDLG Motor Grader With Shanghai/cummins Engine ZF6WG180 TransmissionUS$ 71,800 - 88,800MOQ: 1 Unit
-
XCMG Model WZ30-25 Backhoe Loader With YUCHAI/Cummins Diesel Engine Popular for Russia/BrazilUS$ 15,800 - 45,500MOQ: 1 Unit
-
WZ30-25C Cheaper Backhoe Loader for Russia,Brazil Only 16800usd per UnitUS$ 28,800 - 45,500MOQ: 1 Unit
Specifications
200hp SDLG,XCMG motor graders1.Low noise
2.Convenient control
3.Cummins engine
4.200hp motor grader
Performance and Characteristics!!!
•The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
•Electrohydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
•The adopted international matched hydraulic parts ensure the reliable operation.
•The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.
| Basic specification | |
|---|---|
| Engine model | 6CTAA8.3 6CTA8.3 |
| Rated power/speed | 153kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 8970×2625×3470mm |
| Operating weight(Standard) | 16500kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |
Shandong ZOT Machinery Co.,LTD. which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, Zhongte focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.
We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.
Advantage & Application
1.Chinese Cummins intercooled& turbocharged diesel engine;
2. Integral torque converter and gearbox(Germany ZF technology);
3. Driving axle with built-in free-wheel anti-slip differential;
4. Heavy-duty roller chains transmission balance box;
5.Popular swing-arm connecting rod operating mechanism;
6. Free-maintenance rolling-disc rotary device;
7. Double cylinders control the balde cutting angle;
8.Two sets of imported control valve (HUSCO Brand);
9. Imported hydraulic balancing valve for the blade lifting;
10. Steering system:center articulated mechanism and tilting front wheels to achieve crab-style movement;
11. Electro-hydraulic control: instrumentation monitoring & maintenance-free OPTIMA battery;
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty single drum vibratory road roller in China.
7.Warranty period is 1-year or 1500 working hours against Bill of Lading.
Company and Products Information Related
ZOT.is the professional manufacturer, who carries an extensive range of new heavy duty equipments and agricultural machinery, such as road rollers, motor graders, crawler excavators, bulldozers, wheel loaders, forklifts, and wheel tractors with years of experience, strong R&D and engineering capabilities.
