Specifications
1.Engine:YTR,Yuchai,Cummins for different markets.pact,wheel loader model with CE for eurozones.
3.Multiple attachments.

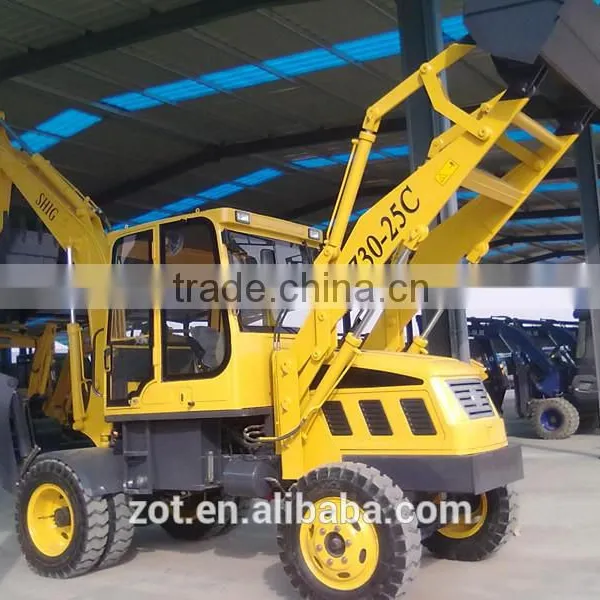

WZ30-25C BACKHOE LOADER
truck model backhoe loader with loader and excavator.
PRICE:16,800USD PER UNIT FOB CHINA PORT.
WZ30-25C technological parameters
Overall Dimension | |
1 Length *Width* Height |
5900*2200*3769(mm) |
2 Cab roof height |
2900(mm) |
3 Wheel base |
2250(mm) |
4 Track |
1640(mm) |
5 Min. ground clearance |
300(mm) |
Main Technical Specification | |
1 system pressure | |
load hydraulic system |
18Mpa |
dig hydraulic system |
20Mpa |
steering hydraulic system |
12Mpa |
2 system flow |
120L/min |
3 four-wheel drive , whole hydraulic system | |
4 total operating weight |
7600kg |
5 maximum speed |
22Km/h |
6 maximum gradient capacity |
30° |
1 loading bucket capacity |
1m3 |
2 rated loading |
2500KG |
3 maximum articulated height of bucket |
3400 mm |
4 bucket discharge height |
2795(mm) |
5 bucket discharge distance |
1048(mm) |
6 loading lift capacity |
25KN |
7 bucket hydraulic translation function |
yes |
8 bucket lift time |
6.8s |
9 bucket lower time |
2.5s |
10 bucket discharge time |
1.2s |
11 maximum tractive force |
39KN |
12 maximum breakout force |
38KN |
1 backacter bucket capacity |
0.3m3 |
2 backacter discharge height |
3878(mm) |
3 maximum digging depth |
4080(mm) |
4 maximum digging radius |
5688(mm) |
5 bucket slewing angle |
190° |
6 bucket digging capacity |
46KN |
7 bucket stick digging capacity |
31KN |
Diesel engine | |
1 model |
Cummins 4BTA3.9-C100 |
2 type |
turbocharging four-stroke |
3 rated power |
55KW/74HP |
4 rated speed |
2200 r/min |
4 cylinder –internal diameter |
4-108 |
5 maximum torque |
261.7N.M/1800R/MIN |
6 minimum fuel consumption |
216 g/kw.h |
7 displacement |
4.4L |
Transmission system | |
1 model of hydraulic pump |
fixed shaft power shift transmission |
2 gear shift |
2forward shift 2 reverse shift |
3 torque |
YJ-280 |
4 drive pump |
CDXaf3016-IL |
5 flow |
16ml/r |
6 work pump |
CBGj2063 |
7 flow |
63ml/r |
Steering system | |
1 type |
articulated hydraulic steering |
2 model of steering control valve |
BZZ5-250 |
3 model of turning control valve |
YSF25S-00 |
4 steering angle |
36±1°left or right 36±1° |
5 minimum turning radius |
5018(mm) |
Axles | |
1 main transmission type |
single reduction |
2 wheel reduction type |
wheel reduction |
Wheel | |
1 tire size |
16/70-20 |
2 front wheel pressure |
0.22Mpa |
3 rear wheel pressure |
0.20Mpa |
4 service braking |
air over hydraulic disc on 4 wheels |
5 parking brake |
manual parking brake |
Refill Capacity | |
1 fuel tank |
70L |
2 transmission |
25L |
3 front axle |
9KG |
4 rear axle |
9KG |
5 hydraulic tank |
140L |
PRODUCTS DETAILS:
SHIPPING/EXPORTING:
Shandong ZOT Machinery Co.,LTD. is a member of Lingong group , which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, Zhongte focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.
We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.

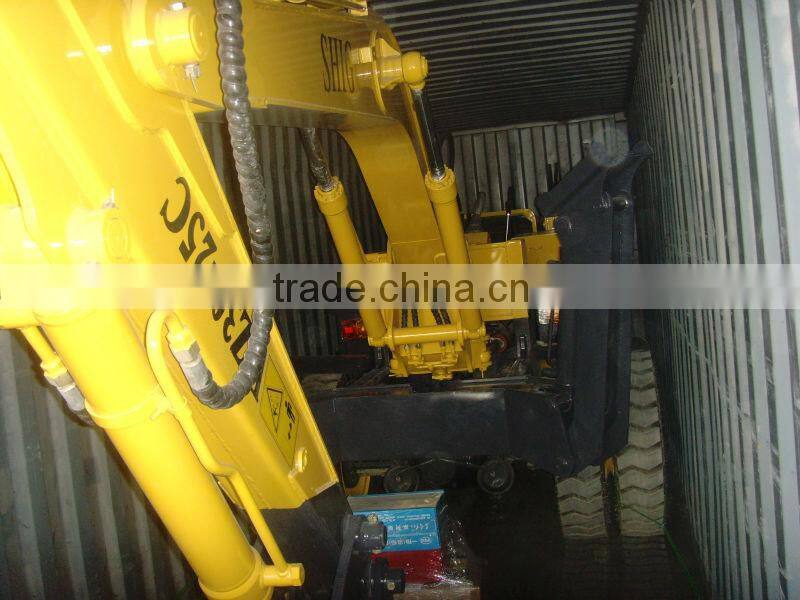

Packing: 1 unit put into one 40HC Container.
Warrantee: 2000work hours or 20 monthes after shipping date.
Delivery time: Yuchai engine need 5 days after getting your advance payment or L/C,Cummins engine need 20working days.
CUMMINS ENGINE NEED 2500USD/UNIT.
(1)Our products
Our products with world first-class quality
Competitive price with excellent quality
A great variety of different models to meet customer requirements
Exported to Southeast Asia, Africa, Europe and other regions
(2)Our company
A full-service system integrating manufacture, distribution, repair service and domestic & International trade
Our service is as close as your phone
Customer satisfaction is our highest pursuit
Located in China's newest economic zone Qingdao– the most convenient port city to middle and south Asia and middle east countries
(3)Our team
Highly trained team members with overseas working experience
Response quickly with effective information in 12 hours
Provide timely professional technical support service
Not only to sell but to solve customers’ problems
Considerate after-sale service
