Bare Copper Insulated Wires Cables

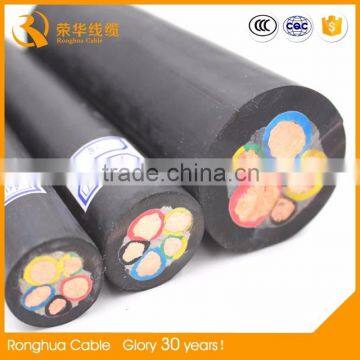

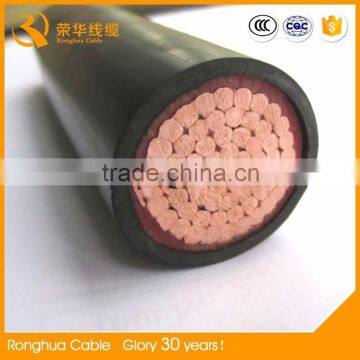

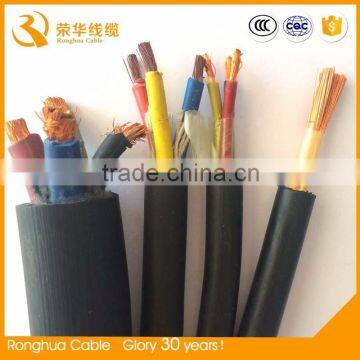

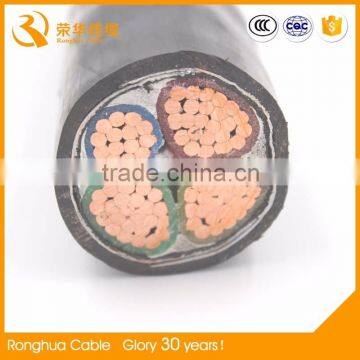

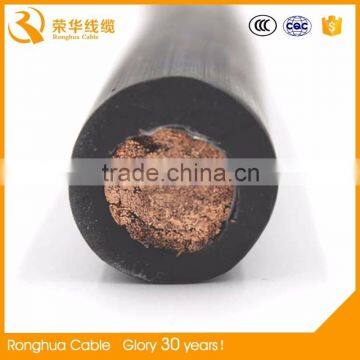

Bare Copper Insulated Wires Cables photo-1
Bare Copper Insulated Wires Cables photo-2
Bare Copper Insulated Wires Cables photo-3
Bare Copper Insulated Wires Cables photo-4
Bare Copper Insulated Wires Cables photo-5
Bare Copper Insulated Wires Cables photo-6
US$ 0.1 - 10 MOQ: 200 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Ronghua
Model Number:
YQ YQW YZ YZW YC YCW JHS JHSB
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Ronghua
Model Number YQ YQW YZ YZW YC YCW JHS JHSB
Insulation Material Rubber
Type Low Voltage
Application Industrial
Conductor Material Copper
Jacket Rubber
Product Description

Features
Meets the requirement of UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899
600 volts, 90° C Dry & Wet
Designed for heavy duty use
Temperature range -40° to 90°
ROHS compliance (lead free)
Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps.
Contraction - Rubber AWG Pump Cables  Class C Flexible, bare copper
Insulation : PVC or Rubber
Sheath : PVC or Rubber
Colour Code : Black - Yellow - Red (Without Ground)

Black - Yellow - Red - Green (With Ground)

4 core flat type submersible pump cable
3 core round type rubber sheathed ESP cable
Flat Jacketed Submersible Pump Cables Without Ground
Conductor Size AWG
NO. Of Conductor
NOS OF Dia. Of wire
Core Dia
Sheath Thickness (MM)
Cable Dia.
14
3
41/0.254
3.85
1.15
14.60*6.40
12
3
65/0.254
4.50
1.15
16.80*7.40
10
3
105/0.254
5.30
1.15
18.70*7.90
8
3
168/0.254
6.50
1.40
23.70*9.90
6
3
226/0.254
8.00
1.40
28.00*11.40
4
3
420/0.254
10.10
2.00
35.50*14.70
2
3
665/0.254
11.30
2.00
39.50*16.20
1
3
817/0.254
13.60
2.20
45.50*18.30
1/0
3
1045/0.254
13.60
2.20
45.50*18.30
2/0
3
1330/0.254
16.60
2.20
51.00*20.00
3/0
3
1672/0.254
18.00
2.40
60*23
4/0
3
2116/0.254
19.8
2.65
65*25
