450/750V stranded copper conductor rubber sheath Flexible Cable
Hebei Ronghua Wire And Cable Co,.LTD- 450/750V stranded copper conductor rubber sheath Flexible Cable
IEC 60245 Multi-core General Rubber Sheath Flexible Cable
Flexible rubber sheath flexible cable
1. Usage:Rubber sheath flexible cable is suitable for rated AC vo1tage 450/750V or below domestic applies, power-operated tools and various portable electric Equipments
2. Working temperature:
1) YZ model flexible cable rated voltage Uo/U is 300/500V, YC model is 450/750V
2) Long time allow working temperature of wire core is not more than 650C
3) W model flexible power cable has the property of durability and suitable for outdoor touching of greasy dirt
4) ZR model flexible rubber cable has the property of fire-resistance
3. Flexible cable of Model name and usage:
Model |
Name |
Rated Voltage(V) |
Section Area(mm2) |
No. of Cores |
Usage |
YQ,YQW |
Light model rubber sheath flexible cable |
300/500 |
0.30.5 |
2,3 |
Used for light portable electric equipment and tools |
IEC60245-53YZ |
Middle model rubber sheath flexible cable |
300/500 |
0.75--6 |
2,3,4,5 |
Used for various portable electric equipment and tools |
IEC60245-57YZW | |||||
YC |
Heavy model rubber sheath flexible cable |
450/750 |
1.5--400 |
1 |
Used for various portable electric equipment which can bear large mechanical force effect |
1.5--95 |
2 |
||||
1.5--150 |
3 |
||||
IEC60245-66YCW |
1.5--150 |
4 |
|||
|
2.5150 + 1.5--50 |
3+1 |
||||
1.5--25 |
5 |

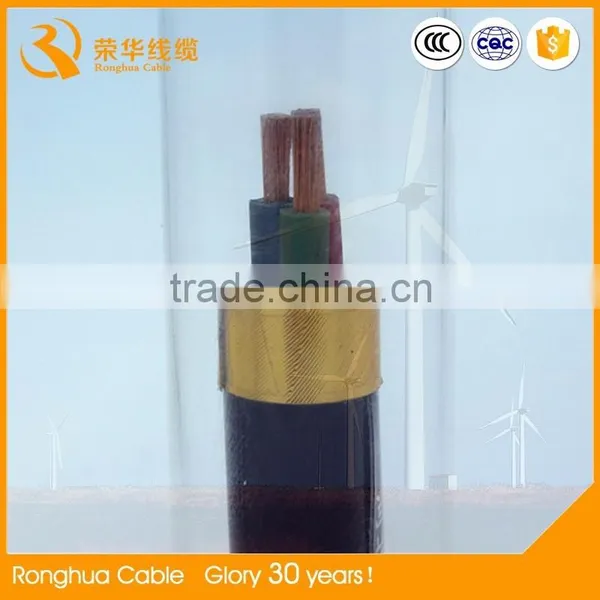

Rubber sheathed 3 core flexible cable

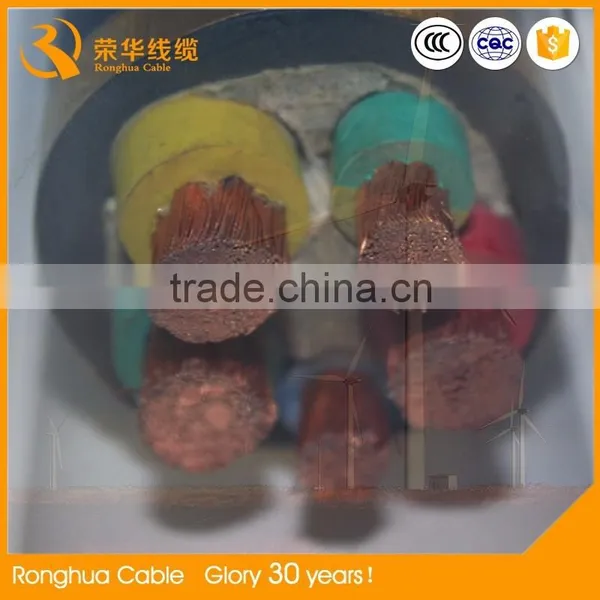

Multi core rubber sheath flexible cable
Packing of rubber flexible cable :
Small size 100 meters in roll, then in pallet. Big size in drums. Or as customers' request.
We will choose the right packing&shipping type according to your product specification and order quantity.
1.Pre-sale service
Offering hot-line for product and technical consultation Offering specified project design to meet the clients’ demand.
2.During-sale service
Offering training on application instruction, supervising installation condition, and debugging.
3.After-sale service
Offering 24-hour service, product upgrading or alteration, and other service.
Manufacture of flexible cables for over 30 years.
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your inquires of any type rubber flexible cable. We will reply you within 12 hours!
