Product Details
Place of Origin: | Hebei, China | Brand Name: | Ronghua general rubber cable | Model Number: | YQ YZ YC |
Insulation Material: | Rubber | Type: | Low Voltage | Application: | Industrial |
Conductor Material: | Copper | Jacket: | Rubber |
Product Description
Copper or CCA Conductor Material and Construction Application flexible rubber wire and cable
For More Types Products, please click the pictures below:
China supplier Super Flexible Rubber Insulated Power Cable
Flexible Rubber Cables
1. Usage:Rubber sheath flexible cable is suitable for rated AC vo1tage 450/750V or below domestic applies, power-operated tools and various portable electric Equipments
2. Working temperature:
1) YZ model flexible cable rated voltage Uo/U is 300/500V, YC model is 450/750V
2) Long time allow working temperature of wire core is not more than 650C
3) W model flexible power cable has the property of durability and suitable for outdoor touching of greasy dirt
4) ZR model flexible rubber cable has the property of fire-resistance
Construction:
General Rubber Flex Cable Construction | |
Conductor | Stranded bare copper or tinned copper or annealed copper |
Core | Single, multi core |
Jacket | Rubber/ TPE/CPE/EPDM/ Silicone |
What's the Technical Parameters of general rubber flex cable?
Model | Name | Rated Voltage(V) | Section Area(mm2) | No. of Cores | Usage |
YQ,YQW | Light model rubber sheath flexible cable | 300/300 | 0.30.5 | 2,3 | Used for light portable electric equipment and tools |
IEC60245-53(YZ) YZ | Middle model rubber sheath flexible cable | 300/500 | 0.75--6 | 2,3,4,5 | Used for various portable electric equipment and tools |
IEC60245-57(YZW) YZW | |||||
YC | Heavy model rubber sheath flexible cable | 450/750 | 1.5--400 | 1 | Used for various portable electric equipment which can bear large mechanical force effect |
1.5--95 | 2 | ||||
1.5--150 | 3 | ||||
IEC60245-66 YCW | 1.5--150 | 4 | |||
2.515 | 3+1 | ||||
+ | |||||
1.5--50 | |||||
1.5--25 | 5 |
What's the Features of general rubber flex cable?
1. Weather resistance
2. Oil-resistance
3. Flexible
4. Good tenile performance
5. Wear Resistance

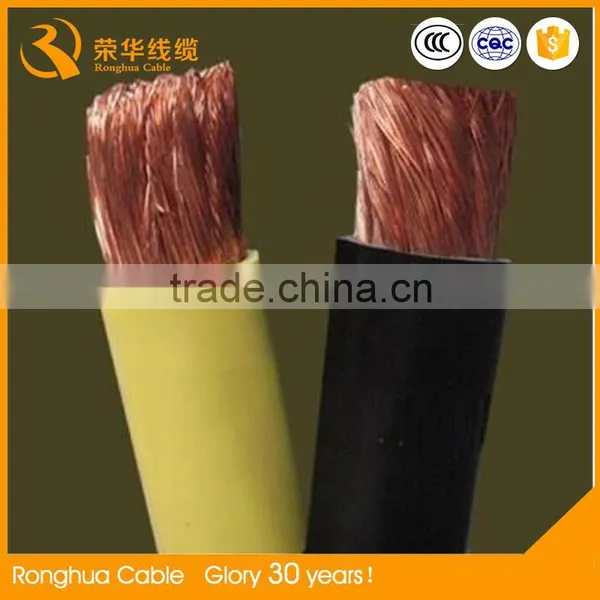

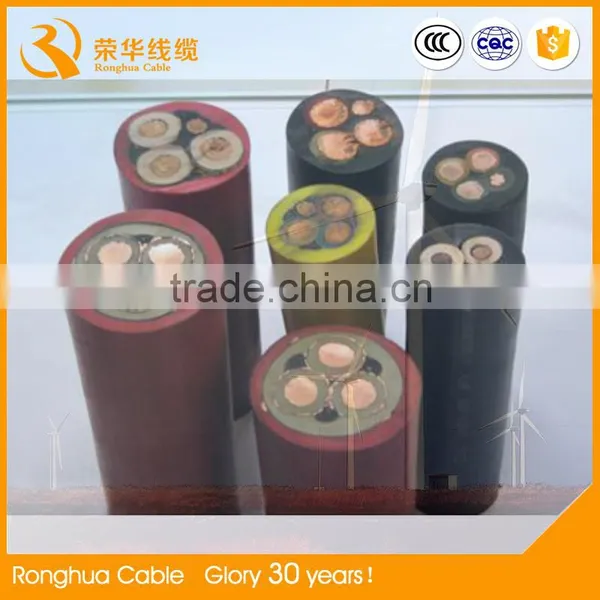

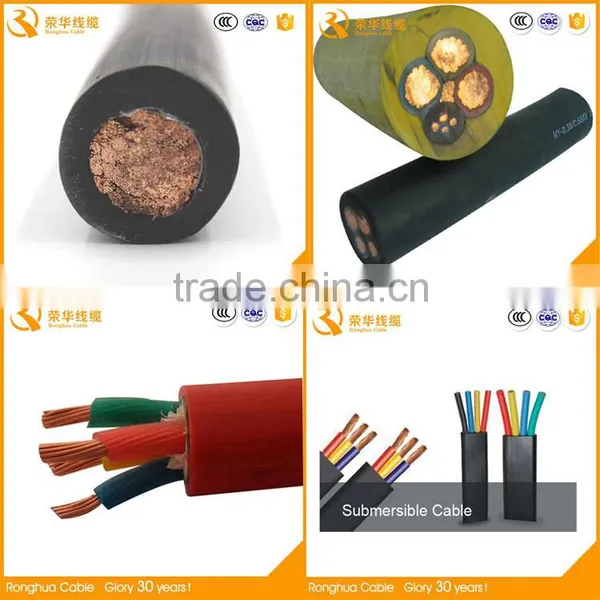

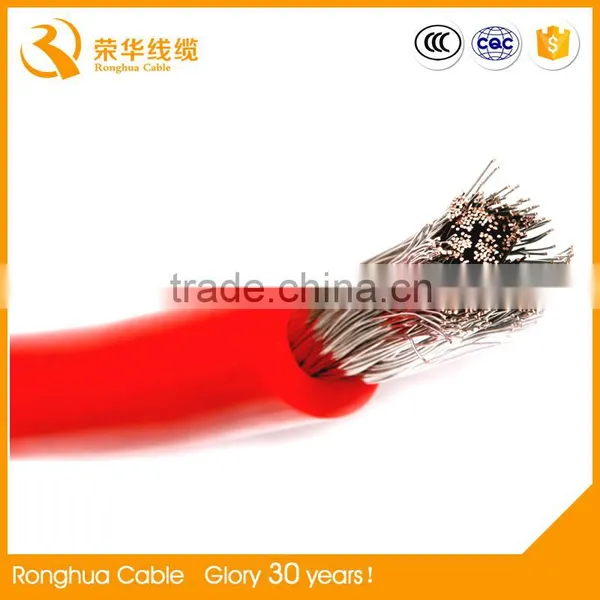

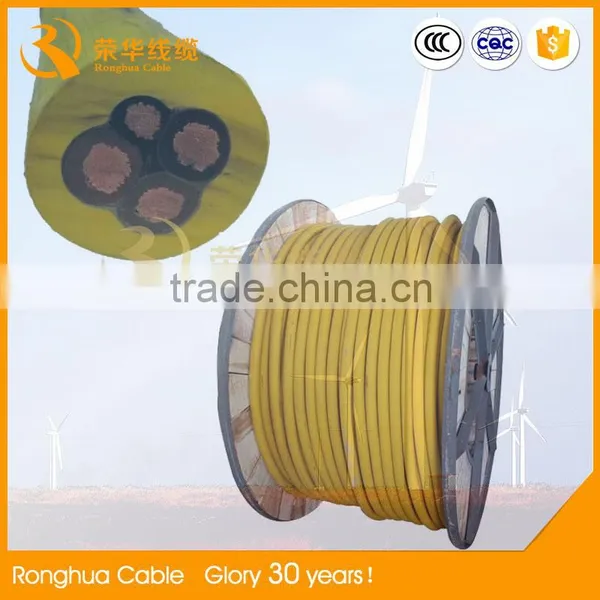

The Picture of general rubber flexible cable as belows:
1>. We’re a professional manufacturer for over 30 years
2>. High quality assurance with competitive price
3>. OEM & ODM are available
4>. Any of your feedback will be responded within 12 hours
Certifications:
