Specifications
with rotary 3D engraving wine bottle laser engraving machine1. CO2 RECI laser tube
2. High precision
3. DSP control
with rotary 3D engraving wine bottle laser engraving machine
wine bottle laser engraving machine Product Description
Our professional non-metal material laser cutting machine is larger in size. It could process workpiece with largest size of 1500 * 3000mm. Our machine could support BMP and PLT output file format. Our product will engrave the patterns automatically according to your input picture. The letters carved by our product could reach the resolution of 1*1 mm while Chinese characters 2*2 mm. Our machine is suitable for carving large billboard, furniture, etc.
| Model | FASTCUT-1060N |
| Laser- type | Sealed CO2 laser tube |
| Laser power | 80W ,100W,130W,150W,200W (GSI) (optional) |
| Engraving area | 1000X600mm |
| Whole machine size | 1,460 x 1.090 x 1,070mm |
| cutting thickness | 30mm |
| Cutting speed | 0 - 24,000mm/min |
| Resetting positioning accuracy | ±0.1mm |
| Working voltage | AC 110 - 220V±10%, 50 - 60H |
| Gross power | <1,500W |
| Operating temperature | 0 - 45°C |
| Operating humidity | 5- 95% |
| Minimum shaping character | English 1 x 1mm |
| Graphic format supported | BMP,PLT, DST, DXF, and AI |
| Driving system | stepper |
| Cooling mode | water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe |
| Controlling software | control system |
| Compatible software | CorelDraw AutoCAD Photoshop |
| Weight | 240kg |
wine bottle laser engraving machine The optional accessories
1. Lifting platform: to adjust the height of table, for putting 450mm depth materials.
2. Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.
3. Chiller unit: to cool circular water.
4. Auto focus: to engrave uneven surface.
5. Red point for position: to realize simulation engraving, quickly find the position.
6. Cellular platform: to engrave small materials.
wine bottle laser engraving machine Applicable materials
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
wine bottle laser engraving machine Applicable industries
Advertisement, arts and crafts, shoes, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
wine bottle laser engraving machine Samples

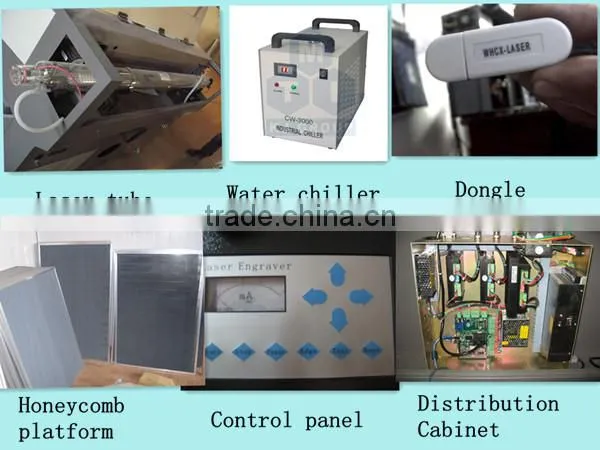

Fitting of machine
Worlflow
After sale service
