Help CenterHigh Accuracy Length Measuring Device (diameter 1-30mm )
Related Products
-
High Accuracy Wire Length CounterUS$ 890 - 1,000MOQ: 1 Piece -
Meter Counter DeviceUS$ 890 - 1,000MOQ: 1 Piece
-
Meter Counting Device (Model:CCDD-30L)US$ 850 - 1,000MOQ: 1 Piece
-
Wire Meter Counter (Model:CCDD-60L)US$ 850 - 1,000MOQ: 1 Set
-
6 Digit Digital Counter Meter (Model:LV2000)US$ 100 - 100MOQ: 5 Pieces

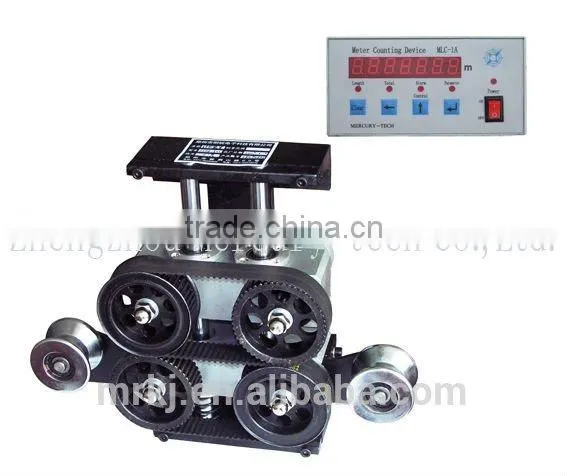

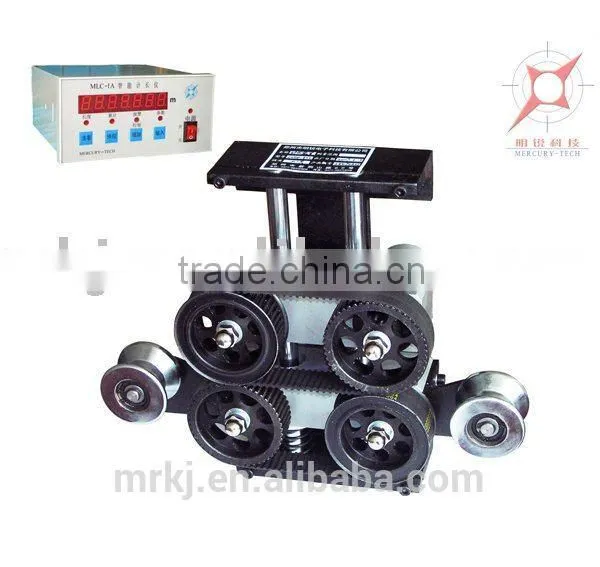

Cable meter counter
CCDD series belt type counter will provide you with the industry's most accurate measurement. reduce your production costs. Electronic controller unit can do preset in length, alarm time, and a variety of customized signal output.
Features
1.Designed for wire and cable pipe meter and design process, high precision.
2.LED display is clear and easy reading.
3. Electronic controller unit provides multiple sets of relay output, easy to manage the production automatically .
4. High accuracy,up to +/- 0.1%
5. Positive or reverse two-way adjustable counting
6. Emergency power down data protection
7.CCDD-150L is specially designed with air cylinder unit.
8.Counter support height can be adjusted to adapt to different heights of the production line.
9. The position of decimal point on display is adjustable..
10. Standard Belt,easy to find replacement belt in market.
Specification
Model |
CCDD-30L |
CCDD-60L |
CCDD-150L |
Measuring Range |
3-30mm |
3-50mm |
3-150mm |
Max Counting Length |
9999999 |
999999 |
999999 |
Max Total Length |
99999.99 |
99999.99 |
99999.99 |
Accuracy |
+/- 0.1% |
+/- 0.1% |
+/- 0.1% |
Dimension |
410x180x1200mm |
430x225x1200mm |
490x370x590mm |
Total Net Weight |
17KG |
22KG |
55KG |
Max Measuring Speed |
400 m/min |
400 m/min |
400 m/min |
Relay Output |
2 |
2 |
2 |
Alarm Output |
Yes |
Yes |
Yes |
Display digits |
7 digit |
7 digit |
7 digit |
Length Measuring Unit |
Meter |
Meter |
Meter |
Calibration |
Yes |
Yes |
Yes |
Decimal Point Shift |
Yes |
Yes |
Yes |
Length Preset |
Yes |
Yes |
Yes |
Ahead of Preset Output |
Yes |
Yes |
Yes |
Control Preset |
Yes |
Yes |
Yes |
Emergent Data Protection |
Yes |
Yes |
Yes |
Two-Direction Counting |
Yes |
Yes |
Yes |
Ft Measuring Unit |
Option |
Option |
Option |
RS485 |
Option |
Option |
Option |
Power Consumption |
<10W |
<10W |
<10W |
Voltage |
220V 50/60HZ |
220V 50/60HZ |
220V 50/60HZ |
Model:CCDD-30L
The Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm×80mm×170mm
Installation hole size: 152mm×76mm
