Specifications
1.Grinding Ball Dia17-150mm2.Wear-resistant,High impact value
3.High combined efficiency
4.Hardness 55-67HRC
5.Low breakage
40MM Steel Ball For Cement Industry and Mine
1.Feature:
1) In general, forged steel ball has high hardness: surface hardness to 55-68 HRC, volume hardness of 50-63 HRC
2) impact toughness high: impact toughness more than 12 J / cm2.
3) broken rate is low: the actual broken rate is not higher than 1%.
4) loss of grinding forged steel ball round rate is low.
2.Chemical composition of Forged Grinding Ball
Brand | Material | C | Mn | Si | Cr | S | P |
TITLE-1 | 50MN | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
TITLE-2 | 60MN | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
TITLE-3 | 65MN | 0.60-0.70 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
TITLE-4 | 75Mn | 0.72-0.92 | 0.70-1.20 | 0.17-0.37 | 0.4-0.6 | ≤0.035 | ≤0.035 |
TITLE-5 | 75MnCr(B2) | 0.70-0.85 | 0.7-0.8 | 0.17-0.37 | 0.2-0.7 | ≤0.03 | ≤0.03 |
TITLE-6 | 75SiMn | 0.70-0.90 | 0.7-1.2 | 0.4-0.8 | ≤0.25 | ≤0.03 | ≤0.03 |
TITLE-7 | Wear-resistant Alloy | 0.5-0.65 | 0.4-1.0 | 1.4-1.8 | 0.9-1.2 | ≤0.03 | ≤0.03 |
3.Product Description of Forged Grinding Ball
Brand | Impact Test AK.J/cm2 | Endurance Test Times(5m) | Surface Hardness | Core Hardness |
TITLE-1 | ≥12 | ≥10000 | ≥56 | ≥48 |
TITLE-2 | ≥13 | ≥10000 | ≥58 | ≥50 |
TITLE-3 | ≥15 | ≥12000 | ≥60 | ≥50 |
TITLE-5 | ≥17 | ≥12000 | ≥60 | ≥52 |
TITLE-6 | ≥16 | ≥12000 | ≥60 | ≥50 |
TITLE-7 | ≥17 | ≥12000 | ≥60 | ≥54 |
4.Specification of Forged Grinding Ball
5.Main Process of Forged Steel Ball
(1)Raw material.(2)Cutting.(3)Heating.(4)Forging.(5)Quenching.(6)Tempering.(7)Testing.(8)Qualified Products.(9)Packing
6.Applied Field
1).Cement Plants 2).Mines 3).Power stations 4).Chemical Industries 5).Grinding Mill, Ball mill, Coal mill
7. Products Name
Grinding Ball, Steel Ball, Grinding Rod, Grinding Bar, Grinding Cylpebs, Ball Mill Liner Plate, Grinding Steel Ball, Grinding Iron Ball, Mill Ball, Forged Steel Ball, Forging Steel Ball, Forged Grinding Ball, Forging Grinding Ball, Forged Ball, Forging Ball, Forged Grinding Steel Ball, Forged Steel Grinding Ball, Cast Grinding Ball, Casting Grinding Ball, Casted Grinding Ball, Cast Iron Ball, Casting Ball, Cast Ball, Casted Ball, High Chrome Cast Ball, High Chrome Casting Ball, High Chrome Cast Grinding Ball, High Chrome Cast Iron Ball, High Chrome Ball, Low Chrome Cast Ball, Low Chrome Casting Ball, Low Chrome Cast Grinding Ball, Low Chrome Cast Iron Ball, Low Chrome Ball, Medium chrome cast grinding ball, Medium Chrome Casting Ball, Medium Chrome Cast Grinding Ball, Medium Chrome Cast Iron Ball, Medium Chrome Ball,Grinding Ball, Steel Ball, Grinding Steel Ball, Steel Grinding Ball,Grinding Media, Grinding Media Steel Ball, Cement Mill Grinding Media, Steel Grinding Media Mill Ball, Grinding Media Steel Ball,Iron Grinding Ball For Ball Mill, Grinding Mill Ball, Mill Grinding Media Balls, Cement Milling Steel Balls For Mill, Forged Grinding Ball For Mill, Forged and Casting Grinding Steel Ball,Forged Steel Grinding Ball, Forged Steel Grinding Media Ball,Steel Grinding Mill Ball, Forged Steel Media Ball, Forged Grinding Steel Mill Balls, 40MM Steel Ball For Cement Industry and Mine
8. Packaging
(1) Steel Drums
(2)Container Bags

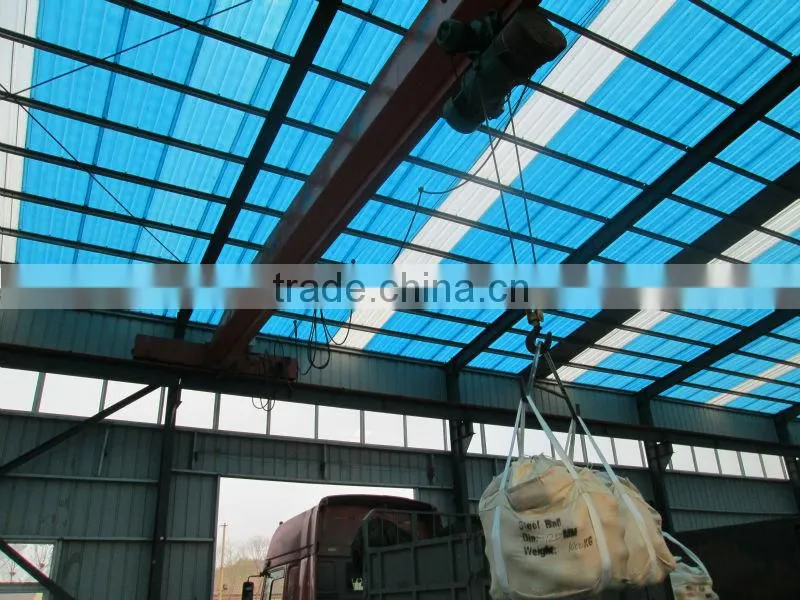

9. Photos of Products, Factory, Raw materials, Cutting Material, Processing Line, Testing, Packaging
