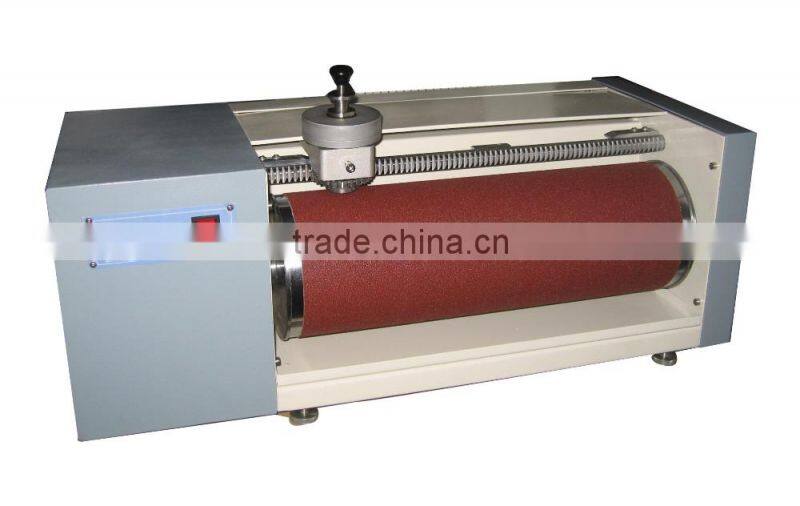

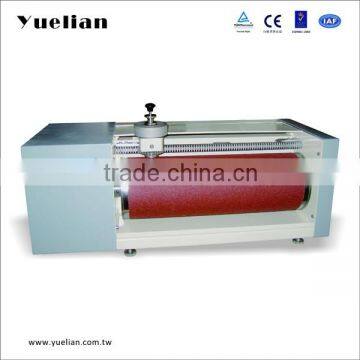

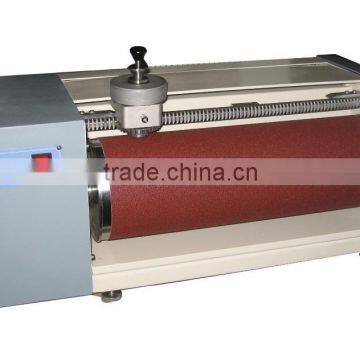

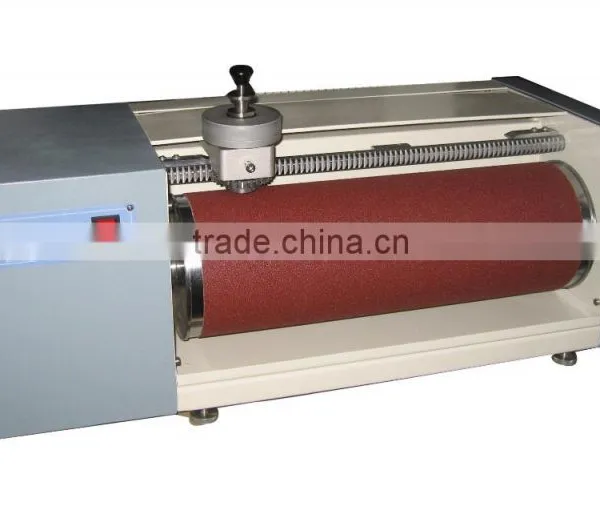

DIN Textile Abrasion Test Instrument
Tester Summary:
The main function of DIN Textile Abrasion Test Instrument is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.
Main Functions:
DIN Textile Abrasion Test Instrument is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.
Corresponding Standard:
DIN-53516ISO-4649GB/T9867-88
Applicable Industry:
DIN Textile Abrasion Test Equipment applied to test leather performance in shoes, clothing, luggage handbag
industry, research laboratories; commodity inspection, arbitration and technical supervision departments.
Technical Parameters:
| Specimen Load | 10N± 0.2N |
| Testing Load | 2.5N, 7.5N |
| Specimen Size | dia 16mm, thickness at least 6mm. |
| Diameter of wear wheel | 150mm |
| Speed of wear wheel | 40 ±1RPM |
| Emery cloth Specification | 60 #, 425 ±473 ±1.5 (mm). |
| Testing Length | 40M (about 84 rotate) |
| Horizontal displacement | 4.2mm / rotate |
| Test-arm weight | 250 ± 5 (g) |
| Shift screw | 6 teeth / inch |
| Limit rotation | 85 rotate |
| Set rotation | 84 rotate (about 40M). |
| Return form | Electric automatic reset |
| Drive Power | 40W; 1/30 |
| Power | 220V 50HZ |
| Machine Dimensions | 600 ±330 ±420 (mm) |
| Machine Weight | 75kg |
