Automatic Micro Vickers Hardness Tester

Automatic Micro Vickers Hardness Tester thumbnail-1
Automatic Micro Vickers Hardness Tester thumbnail-2
Automatic Micro Vickers Hardness Tester thumbnail-3
Automatic Micro Vickers Hardness Tester thumbnail-4
Automatic Micro Vickers Hardness Tester thumbnail-5
Automatic Micro Vickers Hardness Tester photo-1
Automatic Micro Vickers Hardness Tester photo-2
Automatic Micro Vickers Hardness Tester photo-3
Automatic Micro Vickers Hardness Tester photo-4
Automatic Micro Vickers Hardness Tester photo-5
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yuelian
Model Number:
YZ-HV-1000
Contact Supplier Request Quote Chat Now
Guangdong Yuelian Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
by shenzheng
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Yuelian
Model Number YZ-HV-1000
Product Description



1, Features:



Auto Vicky YZ-HV-1000 is upgraded from micro hardness tester Vicky YM-HV-1000,which equips with motorized

X-Y platform, automatic control and measuring software MV-500 and high definition USB camera, to realize automatic

 vickers measurement.



(1)Auto Turret:Indenter and objectives switch by MV-500 control software



(2)Motorized platform: precision X-Y movement to realize specific position hardness measurement.



(3)Auto Focus:apply high resolution optic system and auto focus technology, MV-500 can realize auto focus and auto hardness evaluation only the specimen surface Ra Less than 0.8um.



(4)Auto Measurement Software:



MV-500 can control hardness tester and data communication, includes objectives and indenter switch, auto focus,

auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record

 indentation dialog line and hardness value, auto generate depth and hardness curve, depth curve, error statistics,

test times group statistics, generate EXCELL and WORD report.



(5) Hardness Conversion:



MV-500 has built in hardness conversion table by different standards, like ASTM E140, ISO18265, DIN50150, GB/T1172,

 can convert from HV to HRC, HRA, HBW, etc.



2, Application range:



1, Testing very thin materials like foils, thin pieces, coatings layers, etc;



2, Measuring hardness of the surface of a part, small parts or small areas;



3, Measuring individual micro-structures;



4, Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile

of the change in hardness.



3, Technical Data:

Product Name



Auto Micro Vickers Hardness Tester



Model



Auto Vicky YZ-HV-1000



Test Force



N



0.098,0.246,0.49,0.98,1.96,2.94,4.90,9.80



gf



10,25,50,100,200,300,500,1000



Indenter



Vickers Indenter



Auto Turret



Switch of Objectives and Indenter



Hardness Measurement



Digital eyepiece or Software MV-500



Data Transferring



Blue Tooth, (Optional RS232)



Hardness Resolution



1HV



Hardness Range



1HV~2967HV



Loading Control



Close Loop Control (Auto Loading, Dwell, Unloading)



Magnification of Objectives



Observation:10x/40x;Measurement:10x/40x



Hardness Conversion



HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,



HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB



Digital Eyepiece



10x Digital Eyepiece



Dwell Time



5~60s Adjustable



Motorized X-Y Platform



Dimension: 100*100mm; Travel: 25*25; Resolution: 1um



Measurement Software



Auto Vickers Measurement Software MV500



Vision System



High Definition USB Camera, 1X Camera Adapter



Computer Configuration



P4:2.4G,80G Hard Disc,USB 2.0,PCI Slot,RS232



Illumination



Halogen lamp, brightness adjustable



LCD Screen



5.2" Color Touch Screen, Resolution 640*480



Conversion Standards



ASTM E140, ISO18265, DIN50150, GB/T1172



Language



Chinese, English, German, Portuguese, Turkish,  Czech, Korean



Vertical Space



70mm



Horizontal Space



95mm



Power Supply



AC220V/50Hz;AC110V/60Hz;



Dimension



478*162*518mm



Packing Dimension



500*490*700mm



Gross/Net Weight



45kg/35kg



Executive Standards



GB/T4340,JIS Z2245,ASTM—E92,ISO6507







4, Standard Delivery:

Product Name



Product Name



Product Name



Vickers Indenter



Motorized X-Y Platform



Power Cable



Objective 10x



Computer Host and Monitor



Level Screw



Digital Eyepiece 10x



Objective 40x



Accessory Case



Hardness Block (700-800)HV0.5



Hardness Block (700-800)HV1



Dust Cover



1x Camera Adapter



USB Camera



Quality Certificate


Detailed Images

 Automatic Micro Vickers Hardness Tester



Automatic Micro Vickers Hardness TesterAutomatic Micro Vickers Hardness TesterAutomatic Micro Vickers Hardness TesterAutomatic Micro Vickers Hardness Tester

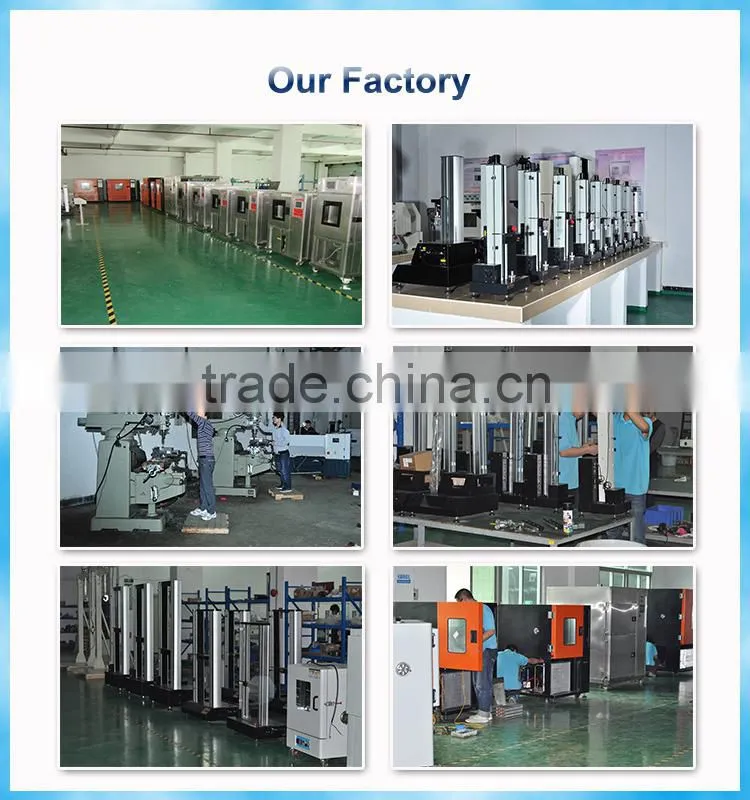

Company Information
