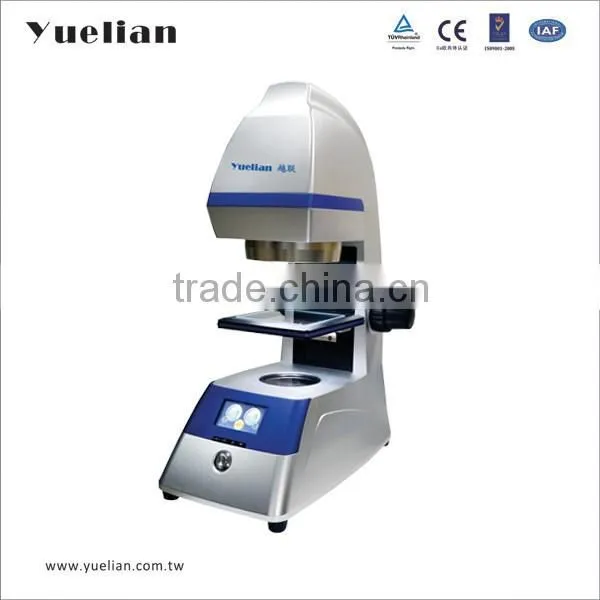

Product introduction
Purpose:
Overturn Traditional measurement mode,create a new era of rapid measurement.One-touch measurement system can Significantly Improve work efficiency and save costs,it help you get more profit.Only touch one button,it can instantly measure all sizes,any Tedious task become easily.Measurement use high-efficient and precision image processing algorithms and under the Optical system which is Independent research,use High resolution CCD and Telecentric lens to catch image.Via software system to image processing and analysis,thereby it can exactly measure all requested sizes of Workpieces.
Used for Machinery, electronics, molds, injection molding, metal, rubber, low voltage electrical, magnetic materials, precision metal, precision stamping, connectors, terminals, mobile phones, home appliances, computers (PC), LCD TV (LCD), printed circuit board (circuit board, PCB), automotive, medical equipment, watches, knives, and other instruments.
Software description:
1.with the characteristics of simple operation, high stability, wide measuring range, high measuring accuracy.
2.it can realize the point, line, circle, arc, ellipse, distance, angle pattern measurement.
3.the corresponding basic element of measurement, measuring software can automatic detect a series of contour point, use the company independent research and development of improved least square method accurately fitted the corresponding element, so as to achieve the best effective measurement. It can efficient, stable and accurate measure.
4.with kinds of taking-point methods which ensure to get more accurate point in measurement process.
5.the user can customize the coordinates then measure.
6.with intersecting, split, vertical, parallel, tangent function, it can Intuitively measure the desired size of customer.
7.support for multiple languages: Simplified Chinese, traditional Chinese, English, German.
Specification:
| Model | YOT-D30 | YOT-D60 | YOT-D80 |
|---|---|---|---|
| Image Sensor | 2/3 inch 5,000,000-pixel CCD | ||
| camera lens | bilateral telecentric | bilateral telecentric | bilateral telecentric |
| Vision | Ø30mm | Ø60mm | Ø80mm |
| Measurement Accuracy | ±2μm | ±4μm | ±5μm |
| Product weight | 25kg | 25kg | 50kg |
| Lighting system | Digital parallel backlight (green LED) | ||
| Software | Inspectacle 3.0 | ||
| Computer configuration | Intel I5CPU 4G memory | ||
| Display | 21.5 inches LED monitor (VGA: 1920 * 1080) | ||
| Repetition accuracy | ±1μm | ||
| External output | Judgment output PASS, FALL, NULL | ||
| Work Environment | 25 ℃ ± 2 ℃, 20% to 80% humidity | ||
| Measuring time | <5 seconds (within 100 dimension ) | ||
| Software basic measurement functions | Points, lines, circles, arcs, angles, distances | ||
| Auxiliary function | Intersection, parallel, equally, perpendicular, tangent | ||
| Geometric Tolerances | Position tolerances, geometric tolerances, dimensional tolerances |
||
