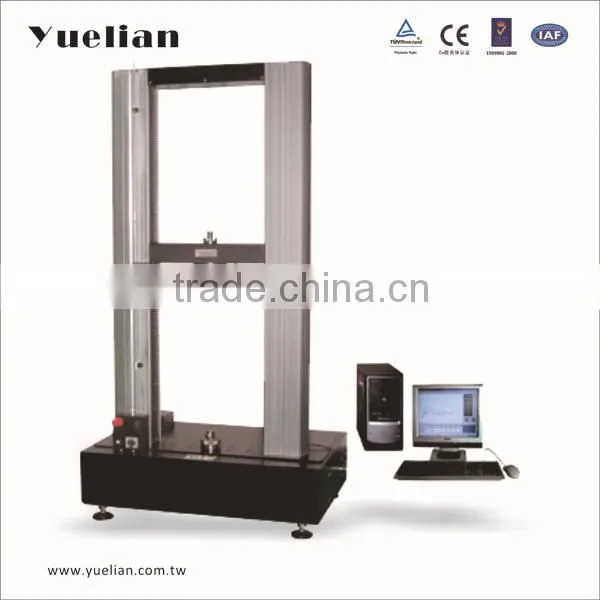

New Arrival conduct tensile universal Material Tester receiving inspection YL-1125
Purpose
This tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.
Software Function
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Specification
| Capacity: | 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN, 50KN (can select double capacities preparation) |
|---|---|
| Display : | Computer display mode |
| Force Resolution : | 1/250,000 |
| Force Accuracy : | ≤±0.5% |
| Stroke Resolution : | 0.005mm |
| Control Mode : | All computerized operation mode |
| Test Stroke : | 1000mm |
| Test Width : | 420mm |
| Test Speed : | 0.5~500mm/min, can set by computer, with up & down fast adjustment button of grips |
| Force Unit Switch : | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode : | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
| Machine Dimension : | 92×62×199cm(W×D×H) |
| Machine Drive : | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power : | 750W |
| Machine Weight : | Approx 422kg |
| Power Supply : | 220V 50/60HZ 10A |
| Standard Device : | 1 set of grips, computer software, USB computer connection wire |
| Optional : | Personal computer |
Test Report
