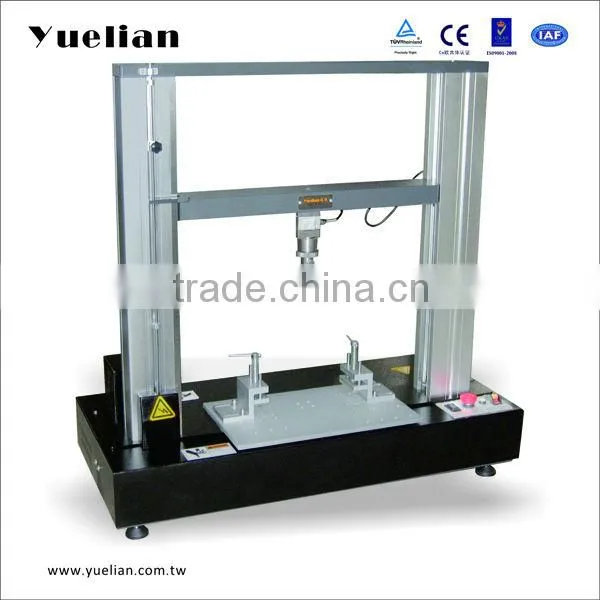

YL-1209 Universal tensile testing equipment
Application:
Universal tensile testing equipment is designed for testing compression strength of various LCD display,like mobile display screen,computer display screen,TV display screen,etc.
We research,develop and manufactur servo control closed-loop system LCD display compression resistance tester ourselves.
It is a high-tech product, which obtains presion mechanics,automatic control and accuracy control at the same time,the core of which is apply siglechip to develop, three closed-loop measurement and control system.
It could test at a fixed force,displacement and time.This tester has strong function,simply program,easy operation,competitive price,and goes for LCD display screen manufacturers,R&D,test computers and related products.By adjusting X,Y axle to test the compression strength of any point in the plane,order Z axle move downward after positioning till reach the set force value,and keep the set time,complete the force vs time test curve.Find the result from the curve to know the resistance of LCD display screen.
Specifications:
Capacity Option |
10N,20N,50N,100N,200N,500N,1KN,2KN,5KN(can select double capacity) |
Force Resolution |
1/250,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Test Stroke |
450mm, without grips |
Test Speed |
600mm*600mm |
Test Speed |
0.5~500mm/min,set by computer |
Force Unit Switch |
Kgf,g,N,kn,lbf,Ton,Mpa |
Stop Method |
Overload Stop, specimen damage automatic stop, emergency stop button, upper & lower limit stop, automatic reset |
Control Method |
All computerized operation control |
Machine Dimension |
90×52×70 CM(W×D×H) |
Machine Weight |
Approx 55KG |
Power |
AC 220V 50/60HZ 10A |
Standard Device |
One set of grips, computer software, computer connection wire, one set of software CD. |
Software and test report:
Certificate:
Factory:
