Specifications
Accelerated Weathering Test Cabinet* fluorescent UV lamp
* high repetition
* UV simulation
* ISO/ASTM/DIN

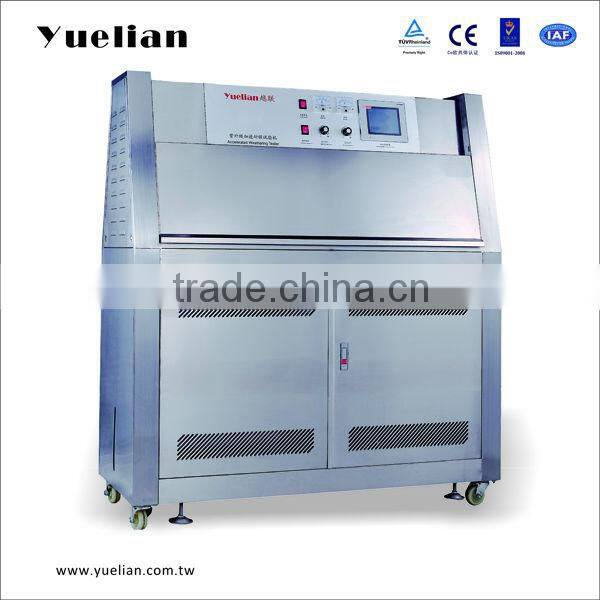

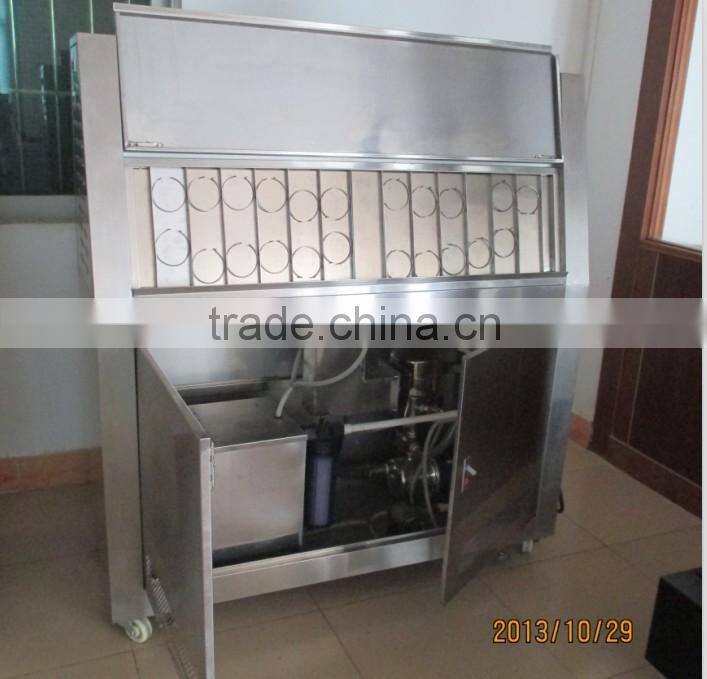

YL-2206QK Accelerated Weathering Test Cabinet
Product Description:
Accelerated Weathering Tester is designed for testing materials by means of simulated ultraviolet
radiation&condensation
Accelerated Weathering Tester is using fluorescence light as source, perform accelerated
weathering test on the materials by means of simulated ultraviolet radiation and condensation is
to get the reaction of materials under accelerated weather. Also, by means of simulated
sunshine, humidity, temperature, condensation etc. is to get the ageing phenomenon of products
or materials from the discoloration and fading.
This machine is apply to nonmetal material, organic material (like material dope, paint. rubber,
plastic and products made in these materials)
Features:
Control System:
Temperature controller:Imported LED display P.I.D.+S.S.R.micro integrated controller
Time controller: Imported programmed time micro integrated controller(MOELLER)
Light heat system:Independent system,Nichrome alloy electronic heater
Condensation humidity system:Stainless steel surface evaporative humidifier
Black plate temperature:Bimetal BPT
Water supply system:Inner container water supply automatically
Exposure way:Moisture condensation exposure, Light radiation exposure
Security Protection:Leakance, short circuit ,Overheat, water shortage, over current protection ,power failure memory type.
Characteristics:
| Temp. Range: | RT+10°C~70°C |
|---|---|
| Humidity Range: | ≥95%R.H |
| Temp. Accuracy: | ≤±0.5°C |
| Temp. Uniformity: | ≤±2°C |
| Humidity Accuracy: | ≤±2% |
| Humidity Uniformity: | ≤±2% |
| Blackboard Temp.: | 40°C~65°C |
| Distance Between Lamps: | 35mm |
| Distance Between Lamp and Specimen: | 50mm |
| Lamp Power: | 40W |
| UV Wavelength: | 290nm~400nm(Specify when ordering) |
| Simulation Condensation: | Condensation system time is adjustable |
| UV exposure, simulation condensation time range: | 0~99 hour |
| Support Specimen: | 150×75(mm) |
| Specimen Quantity: | Approx 40pcs |
| Testing Time: | 0~9999H, adjustable |
| Irradiance Range: | ≤50w/m². |
| Working Chamber Dimension: | D×W×H 450×1170×500mm |

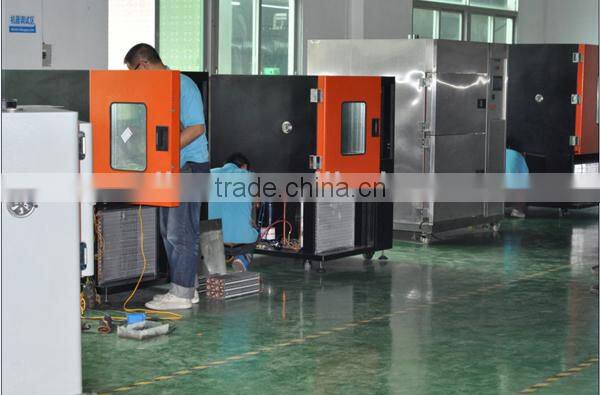

Workshop
Package

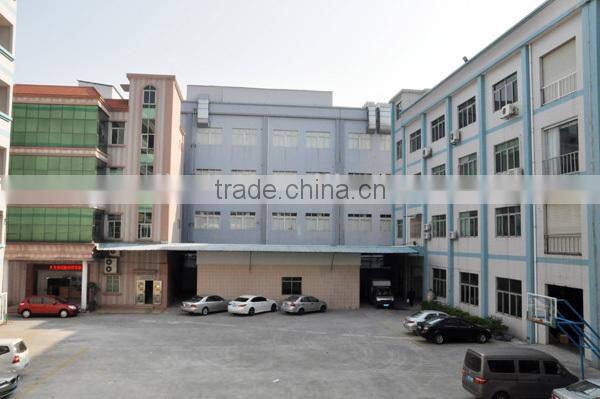

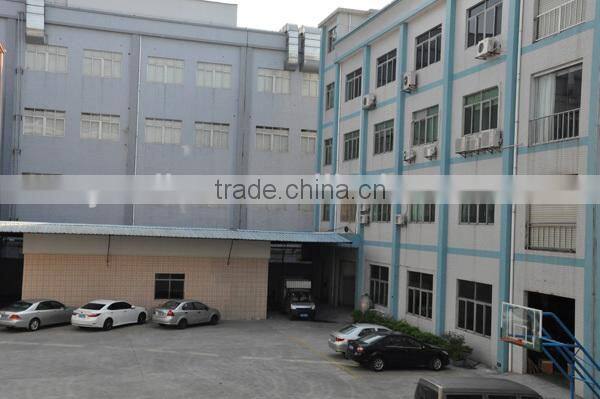

factory photos
Exhibition
Certification
