Vacuum lab drying oven/vacuum oven/laboratory vacuum oven/vacuum drying oven/vacuum chamber (TV2-125)
- 99 Set / Sets per Month
- Shenzhen
- Dental blue film, disposable oral isolation blue film, protective film
- Dental material Fuji II glass ionomer cement, Fuji I glass ionomer cement, Fuji VII glass ionomer cement
- Dental material Fuji II glass ionomer cement,FUJI GIC
- Dental Perforator, Dental Rubber Dam Perforator Puncher
- Lab Hot air Oven, Lab thermostat Oven, Lab Oven, Drying Oven
- Lab Hot air incubator, Lab thermostat incubator, Lab incubator
Product Details
Brand Name: | Yuelian | Model Number: | TV2-125 | Place of Origin: | Guangdong, China |
Product Description

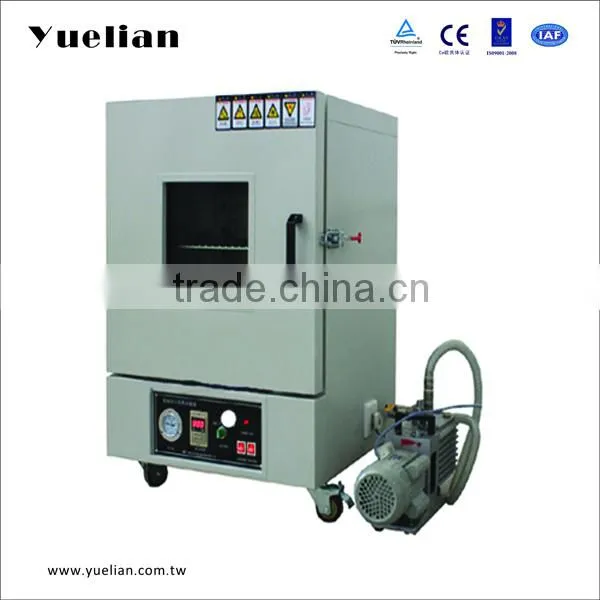

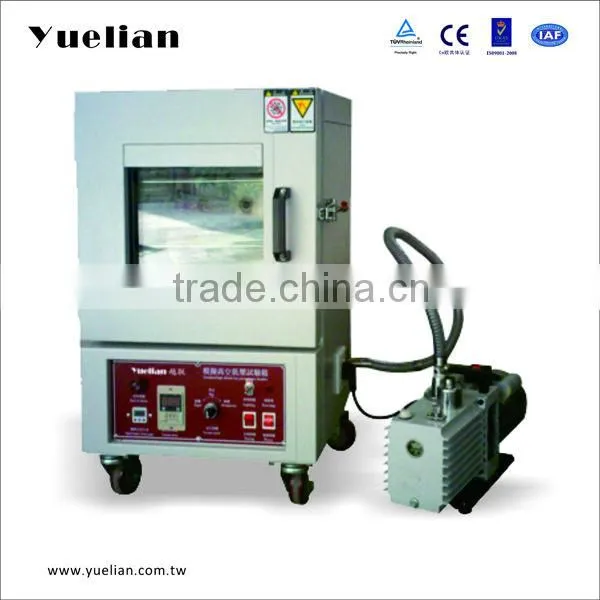

Vacuum lab drying oven/vacuum oven/laboratory vacuum oven/vacuum drying oven/vacuum chamber(TV2-125)
Purpose
Vacuum lab drying oven offers stable and reliable temperature environment of testing space for preheating dryness, qualitative change physics and chemical change requirement, is suitable widely used for rubber plastic materials, adhesive tape, food pharmaceuticals, daily-used chemical and other industries.
Structure
- 1. Body of the chamber adopts the high quality of cool-rolled steel sheet, with electrostatic powder coating on the surface. The coating is hard and firm, with strong rust resistance, no corrosion.
- 2. Interior material: high quality and stainless steel sheet, as thick as 6mm thickness, with round corner modeling which is smooth, fluent, and easy to clean.
- 3.the chamber door is double tempered glass structure, which can observe the test specimen in the chamber clearly.
- 4. With a rubber sealing ring between the work chamber and the glass door to ensure the high vacuum box.
Use and Standard
- 1. Use: products are tested by simulating high altitude environment, all the test specimens will be tested under 11.6kPa(1.68psi), the subatmospheric pressure atmosphere.
- 2. Test purpose: the final test report requires no explosion or fire on the products;
- 3. Test method: UL 1642 UL2054 UN38.3 etc test standard;
Model
TV2-27:Interior dimension (W 30 ×D30×H30cm),Exterior dimension (W 60×D 47 ×H80 cm),Capacity(27L)
TV2-64:Interior dimension (W 40 ×D40×H40cm),Exterior dimension (W70×D 57 ×H90 cm),Capacity(64L)
TV2-125:Interior dimension (W 50 ×D50×H50cm),Exterior dimension (W70×D70 ×H90 cm),Capacity(125L)
TV2-216:Interior dimension (W 60 ×D60×H60cm),Exterior dimension (W90 ×D 77 ×H110cm),Capacity(216L)
Specification
Temperature: | normal temperature +10°C~250°C |
---|---|
Interior material: | SUS 304# stainless steel(thickness:6.0mm) |
Bottom: | universal wheel |
Exterior material: | SECC stainless plate, with fine powder paint treatment(thickness:1.5mm) |
Observing window: | tempered glass explosion-proof membrane affixed. |
Counter: | 3 digits display 0.S~999H (switchable among H-hour, M-minute, S-second) |
Degree of vacuum: | 11.6Pa( the indicated value of the vacuum gauge<-0.116Mpa) |
Power: | AC 220V 50HZ |
