Equipment summary:

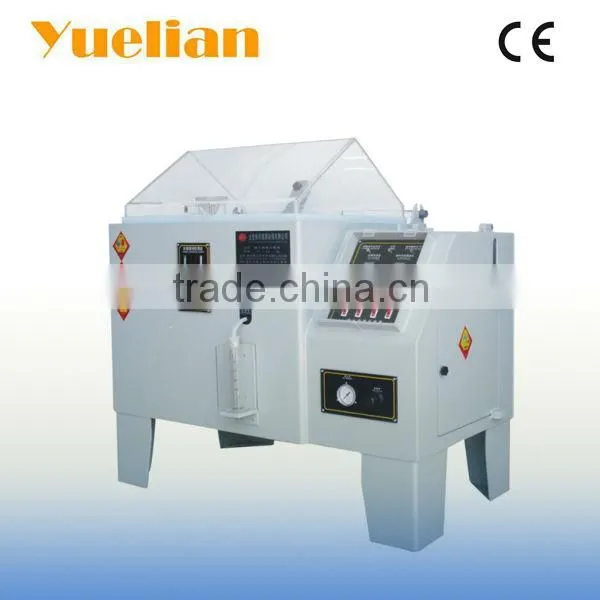

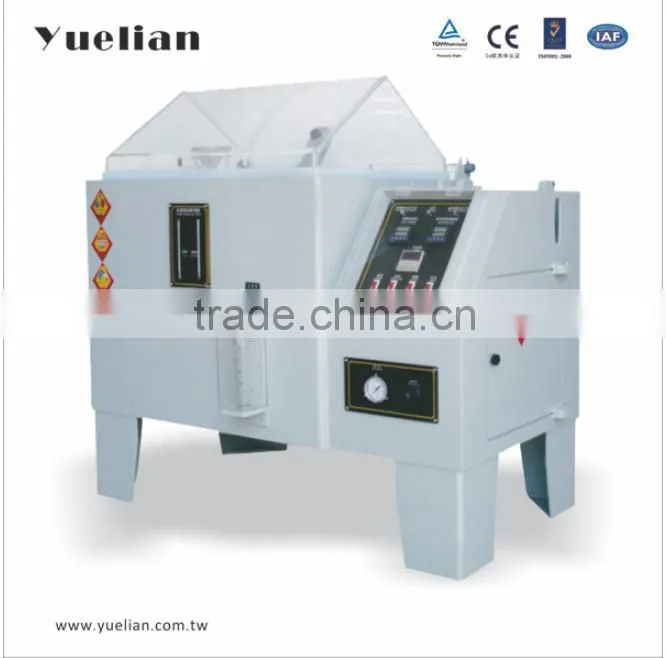

This Corrosion Testing with Salt Spray Test Chambers used to test the corrosive resistance of
products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.
Corresponding standard:
GB/T 2423.17-1993 ,GB/T 2423.18-2000 ,GB/T 10125-1997 ,ASTM.B117-97 ,JIS H8502 ,IEC68-2-11 ,IEC68-2-52 1996 ,GB.10587-89 ,CNS.4158 ,CNS.4159 CASS ,GB/T 12967.3-91
Technical parameters of the Corrosion Testing with Salt Spray Test Chambers :
Model No. |
YL-2208A-60TS |
YL-2208B-90TS |
YL-2208C-120TS |
YL-2208D-160TS |
|||
|
Test Chamber Dimension (W×D×H)cm |
60×40×45 (Large:60×50×50) |
90×50×60 |
120×50×80 |
160×100×60 |
|||
|
Machine Dimension (W×D×H)cm |
113×63×107 (Large:113×68×117) |
146×91×128 |
245×120×145 |
285×145×160 |
|||
Test Chamber |
108L |
270L |
480L |
600L |
|||
Temp.-test |
NSS.AASS 35 ±1°C / CASS 50 ±1°C |
||||||
Temp-Air |
NSS.AASS 47±1°C / CASS 63±1°C |
||||||
Control Panel |
Touch Screen Panel easy operation |
||||||
Spray Method |
A.Continuous spray; B.Continuous spray and Cyclical spray, Which can be set freely or respectively as you like (nozzle 4000 hours non-crystalline block, special glass making) |
||||||
Equipment Materials |
Imported PVC panel & P.P |
||||||
Salt Water Temp. |
35±1 °C |
||||||
Time Memory |
0~999.9 hours, power failure memory type, with buzzer |
||||||
Spray Volume |
1.0-2.0 ml per 80cm2per hour |
||||||
PH Value |
NSS.ACSS 6.5~7.2 / CASS 3.0~3.2 |
||||||
Power |
A220V, 15A, 50HZ |
AC220V,20A, 50HZ |
AC 220V, 30A, 50HZ |
AC220V, 30A, 50HZ |
|||
Features:
1.Automatic add water when water shortage, with a group of manually water
2.Special glass nozzle, guarantee non-crystalline block for 4000 hours
3.With dual over-temperature protection, water shortage warning, ensure safety use
4.Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree
5.Chamber adopts direct steam heating method, fast warming, shortening standby time
6.Spray tower attached cone diffuser, with functions of directional mist, adjustable mist, and uniformity fog lamp.
Safety devices:
1,Water level controller 1set
2,State warning lamp 3pcs.
3,Protection switch for over temperature 2 sets
