Product Name : Backup Battery ID Card Printing Eye Scanner Time Attendance Biometric Face Recognition System (HF-FR302)
| Introduction: |
HF-FR302 multi-model identification time attendance product integrated 800MHz high speed and high definition infrared camera which enables user identification in the dark environment. The appearances of our facial recognition series are designed by Germany professional design company according to the view of human engineering. All operations of our machine are designed to be finished on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP. Optional built-in 2000 mAh battery eliminates the trouble of power-cut.
| Specification: |
CPU |
HF Multi-Bio CPU 800 MHz |
Memory |
256M Flash, 64M SDRAM |
Hardware Platform |
ZEM800 Multi-Medium Development Platform |
Fingerprint Sensor |
HF Optical Fingerprint Sensor without film |
Camera |
High Resolution Infrared Camera |
Display |
4.3" TFT touch screen |
Face capacity |
1200(1:N) |
Fingerprint capacity |
2000 |
Logs capacity |
100,000 |
Algorithm Version |
HF Face 7.0 & HF Finger 10.0 |
2000mAh backup battery |
Optional |
Communication |
TCP/IP,RS232/485 |
USB-HOST |
Two USB-Host |
Wireless Wi-Fi |
Optional |
Time attendance Standard functions |
ID Card (Optional) , Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
Access control interfaces for |
3rd party electric lock, door sensor, exit button |
Wiegand Signal |
Output |
Optional functions |
serial printer, IC card, Extendable Scheduledbell, Short Massage, Web-server,GPRS,WIFI |
Power supply |
12V3A |
Verification Speed |
≤2 sec |
Operating temp |
0°C- 45 °C |
Operating Humidity |
20%-80% |

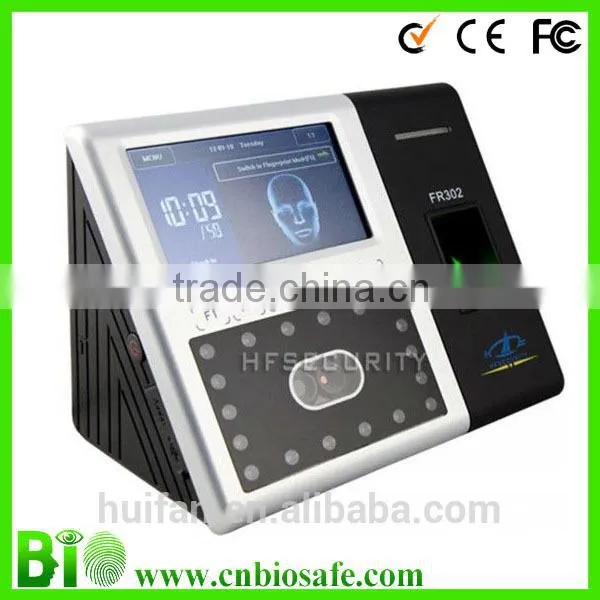

| Picture shows: |

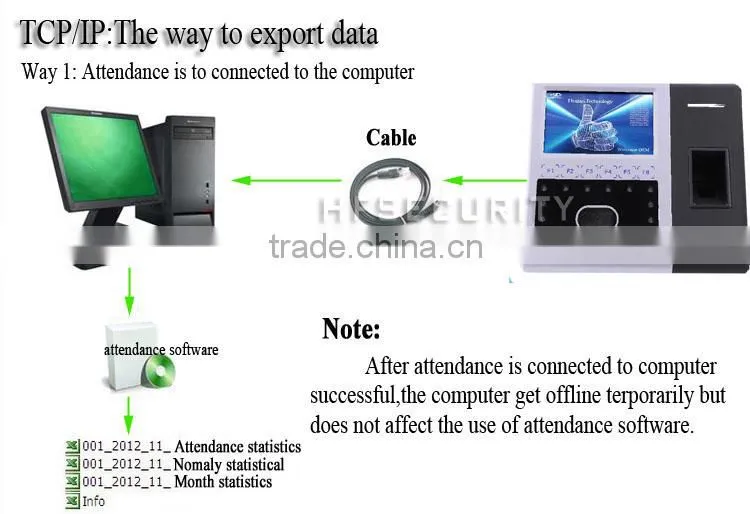

| Network diagram: |
| Our partner: |
| About company: |
Our company located in beautiful City-Shenzhen, China, where is an ancient and advancing with The Times of world window and you can review the past and longings for the future
in the elegant environment, convenient transportation of shenzhen north station, you are welcome to visit our company at any time.A lot of foreign customers to our company, hope you can be one of them.
1. We have professional technician team to support any of your questions on technician aspect
2. We also provide below service:
*OEM/ODM for adding your logo for free
*Customized Language
*Free Software/SDK
*Life-Long After-Service
| Our service: |
