Product Name: Biometric Best Software Professional Wiegand 4 Door Access Control System(HF-Inbio460)
| Features : |
1.Chioce of readers: fingerprint reader, card reader
2. Inbio control board comes in three size to suit project needs:1-door,2-door,4-door.
3.Large capacity: 30000 users
4.Free SDK
| Specification: |
Model | Inbio460 |
CPU | 32bit MIPS CPU |
RAM | 32M bits |
Flash Memory | 256M bits |
User | 30,000 |
Event Buffer | 100,000 |
Power / Current | DC 9.6V-14.4V, Rated Max.1A |
Reader Port | 12ea (26bit Wiegand, 8bit Burst for PIN) |
Communication | RS485, TCP/IP |
Baud Rate | 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
Input Port | 12ea ( 4 Exit device, 4 Door Status,4 AUX ) |
Output Port
| 4ea (1 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) |
4ea (1 Aux FORM-C Relay Output, SPDT 2A@30VDC) | |
LED Indicator | Yes, LED indication for communication, power, status and punch card |
Operating Temperature | 0°to 55°C |
Operating Humidity | 10% to 80% relative humidity non-condensing |
Dimension (L*W)mm | 160(W)*106(H)(single board ) 345(W)*275(H)*70(D)(with power supply and metal box) |
Certification | CE, FCC |

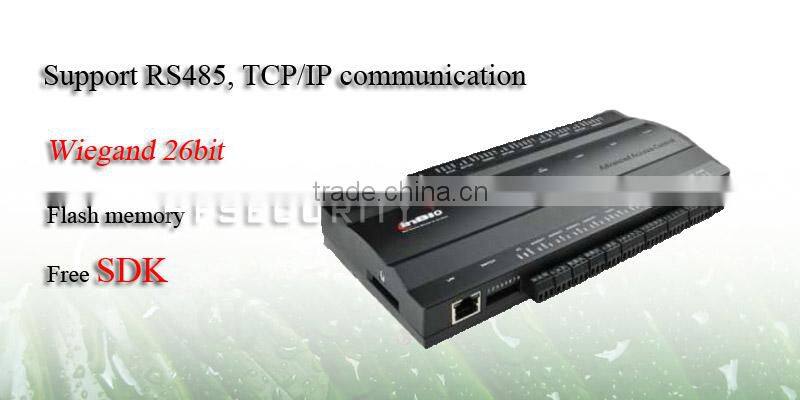

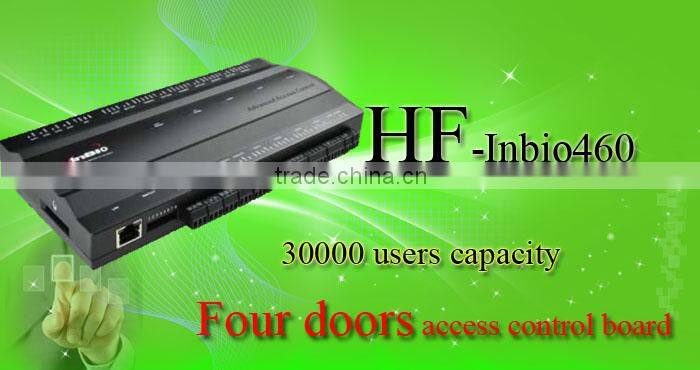

| Picture shows: |

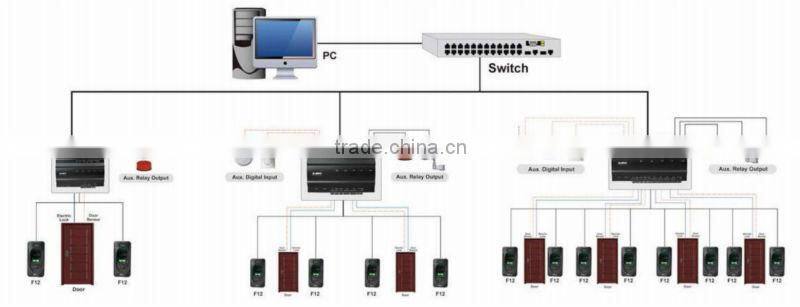

| Typical installation : |
| Our partner: |
| About company: |
Our company located in beautiful City-Shenzhen, China, where is an ancient and advancing with The Times of world window and you can review the past and longings for the future
in the elegant environment, convenient transportation of shenzhen north station, you are welcome to visit our company at any time.A lot of foreign customers to our company, hope you can be one of them.
1. We have professional technician team to support any of your questions on technician aspect
2. We also provide below service:
*OEM/ODM for adding your logo for free
*Customized Language
*Free Software/SDK
*Life-Long After-Service
| Our service: |
