Product Name : Entrance Main Gate Waterproof Access Control Keypad (HF-F50)
| Introduction: |
F50 is an advanced biometric access&nbs p;control terminal that could be operated ;in standalone mode as well as
networked through TCP/IP or RS485 for software management. Equipped with a robust metal housing&nb sp;and
durable backlit keypad, MA500 is vandal resistant and reaches IP65 protection de gree which makes it suitable
for installation in high traffic and&nb sp;harsh environments.
Embedded with latest firmware, F50 s upports HFACM2.0 software which has versatile& nbsp;features and powerful functions. Another benefit of this new firmware is that ;it supports F12 fingerprint reader and r ealizes Master and Slave solution by RS48 5 connection instead of wiegand. F50 coul d also function the same as F12 that to connect with inBIO series controllers as a RS485 fingerprint reader.
| Specification: |
Model |
F50 |
Software |
HFACM2.0 |
SDK |
New PULL SDK |
Fingerprint Sensor |
Optical sensor with protective cover |
Fingerprint Capacity |
3,000 |
Card Capacity |
30,000 |
Log Capacity |
100,000 |
RF Card |
EM(standard) card reader |
Authentication Method |
FP only, RF only, PIN only, FP /RF/PIN, PIN&FP, PIN&RF |
Access Control Interface |
Electric lock, Door sensor, Alarm, Exit button |
Communication |
TCP/IP, RS485 |
Wiegand Signal |
Wiegand out |
Ingress Protection Rate |
IP65 |
Power Supply |
12VDC 3A |
Operating Temperature |
0°C~ 45°C |
Dimensions (W×H×D) |
83mm×127.5mm×74mm |

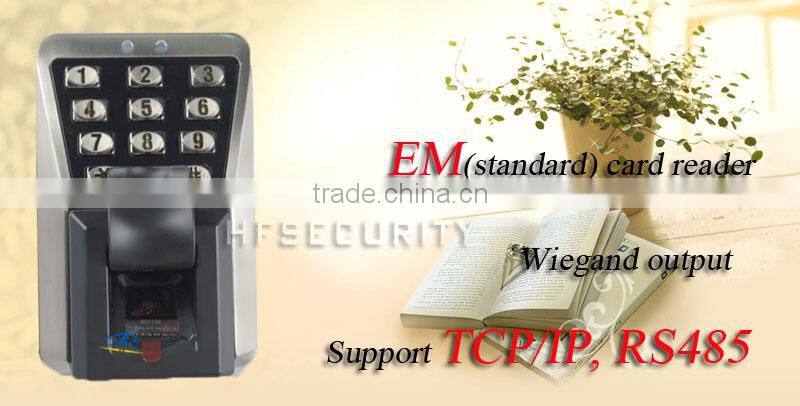

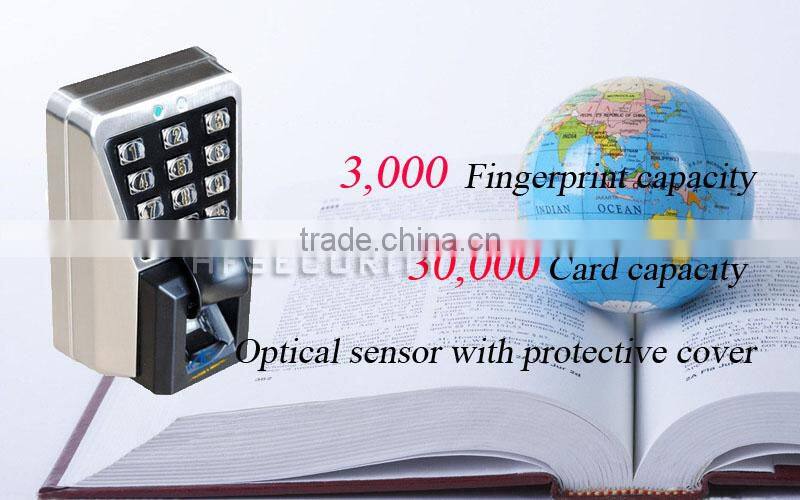

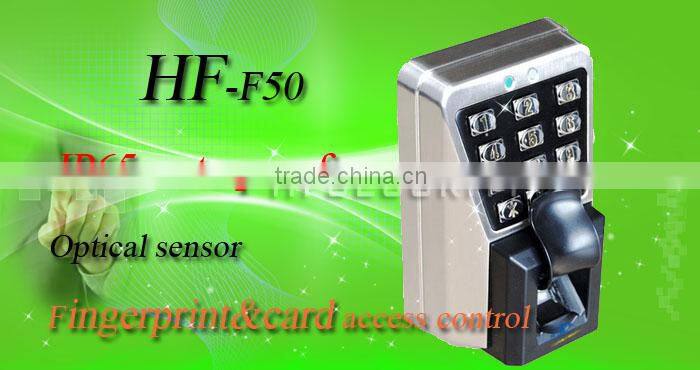

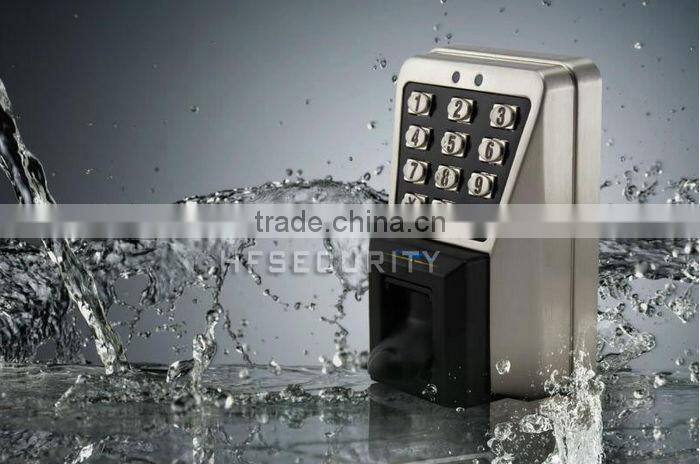

| Picture shows: |

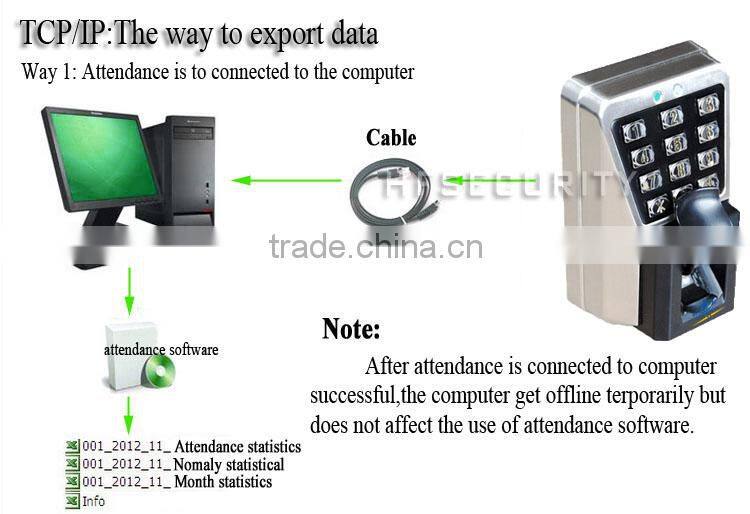

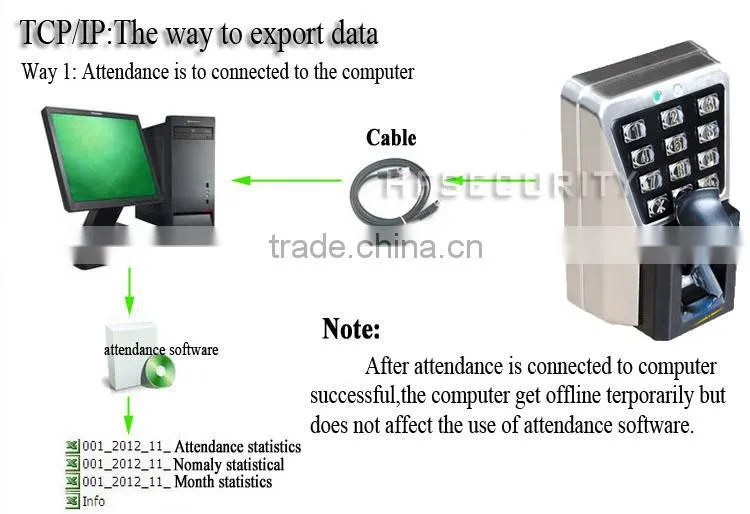

| Network diagram: |
| Our partner: |
| About company: |
