Out Door Keypad ID Card Fingerprint Authentication Meaning Of Access Control(HF-F50)
| Introduction |

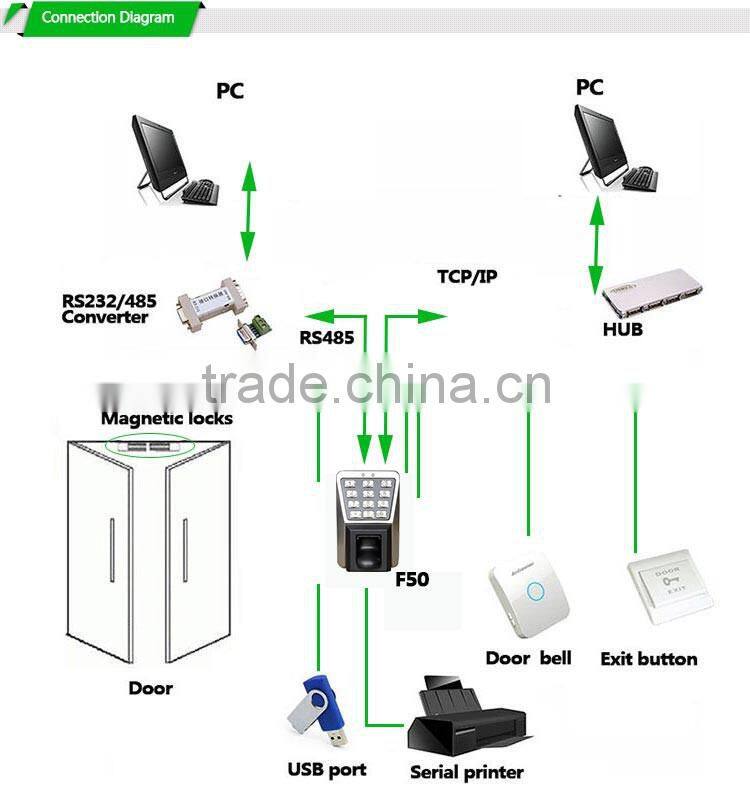

F50 is an advanced biometric access control terminal that could be operated in standalone mode as well as
networked through TCP/IP or RS485 for software management. Equipped with a robust metal housing and
durable backlit keypad, MA500 is vandal resistant and reaches IP65 protection degree which makes it suitable
for installation in high traffic and harsh environments.
| Features |
Embedded with latest firmware, F50 supports HFACM2.0 software which has versatile features and powerful functions. Another benefit of this new firmware is that it supports F12 fingerprint reader and realizes Master and Slave solution by RS485 connection instead of wiegand. F50 could also function the same as F12 that to connect with inBIO series controllers as a RS485 fingerprint reader.
| Specifications |
Model | F50 |
Software | HFACM2.0 |
SDK | New PULL SDK |

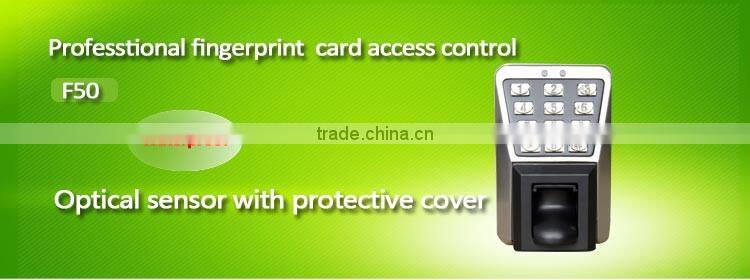

Fingerprint Sensor | Optical sensor with protective cover |
Fingerprint Capacity | 3,000 |
Card Capacity | 30,000 |
Log Capacity | 100,000 |
RF Card | EM(standard) card reader |
Authentication Method | FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF |
Access Control Interface | Electric lock, Door sensor, Alarm, Exit button |

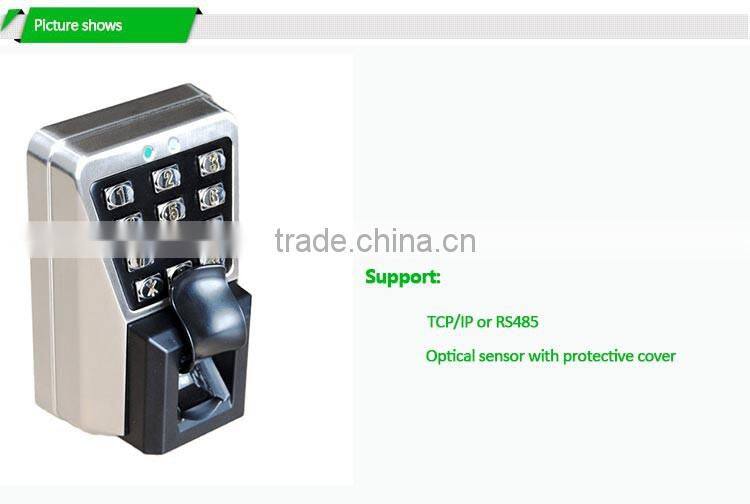

Communication | TCP/IP, RS485 |
Wiegand Signal | Wiegand out |

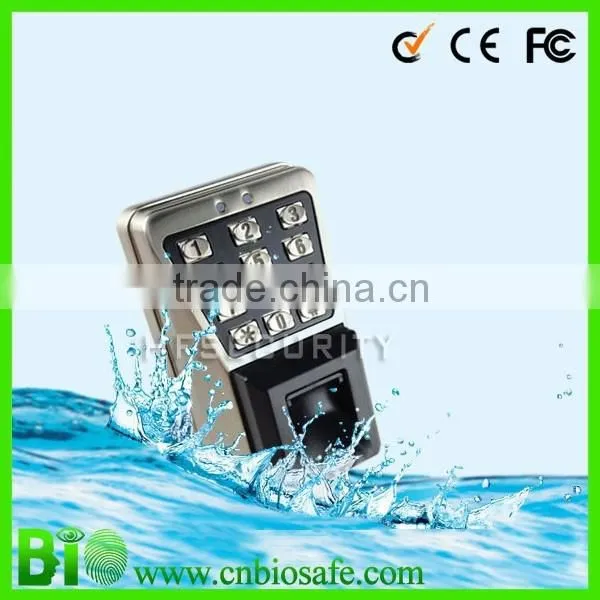

Ingress Protection Rate | IP65 |
Power Supply | 12VDC 3A |
Operating Temperature | 0°C~ 45°C |
Dimensions (W×H×D) | 83mm×127.5mm×74mm |
| Company Profile |
Shenzhen BIO I/E, has specialized in biometric product and solution. As our logo indicates, B is for face recognition; I for iris verification and O for fingerprint identification. As long as it refers to biometric identification, such as, identify driver if he holds his own driving license; identify fingerprint as password, etc. we are confident to offer you most satisfactory solution in shortest time,based on our past successful experience in more than decade. You are also warmly invited to visit us, for discuss face to face. |
Advantage: |
1. We have professional technician team to support any of your questions on technician aspect |
If this fingerprint reader can't meet your needs, please contact our online service, and other suitable products will be recommended for you.
