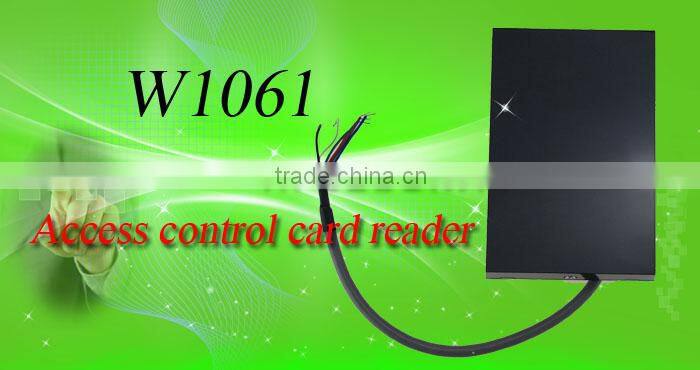

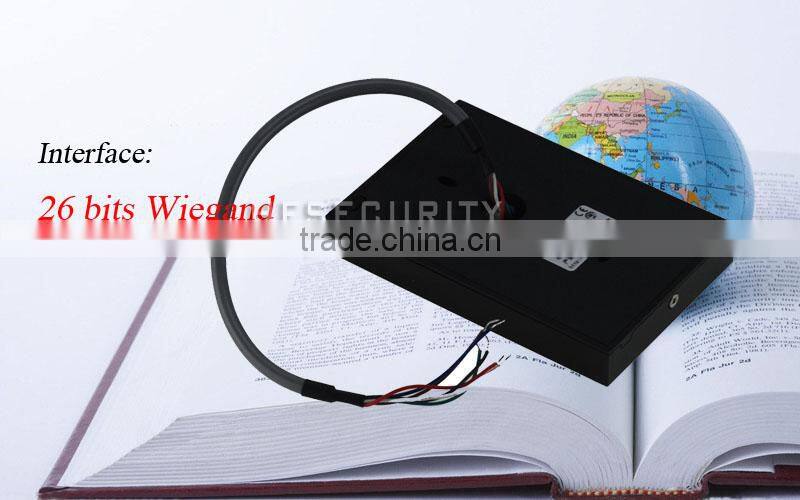

Product Name : Wiegand 26 bites Proximity Access Door Card Reader(HF-W1061)
| Introduction: |
4-8cm range proximity reader for inside or outside installations, includes led and buzzer for feed-back signal.
Our Reader offers superb reliability, consistent reading range and low power consumption in a easy to install package.
The Readers is compatible with all our access controllers. Attractively designed and remarkably compact, the reader unobtrusive size blends easily with any design, and is weather resistant.
| Features: |
Card read distance: up to 8 cm. Read all 26 bits EM cards.
Interface: 26 bits Wiegand.
Maximum cable distance to cont rolle r: 100m. Type of cable: 8 wires shielded cable, 22 AWG.
Operating Voltage Range :9 – 16 VDC
Reader consumption: Standby: 85mA, Read: 100mA.
Built-in audible buzzer acknowledging card reading and bicolor led acknowledging access.
Hidden mounting screws deters vandalism.
Operating Temp. range : -40°C to 70°C.
| Specification: |
Frequency | 125 Khz |
Operating Voltage Range | 9 – 16 VDC |
Reader consumption | Standby: 85mA, Read: 100mA |
Interface | 26 bits Wiegand |
Maximum cable distance to cont rolle r | 100m |
Operating Temp. range | -40°C to 70°C |
Card read distance | up to 8 cm. Read all 26 bits EM cards. |

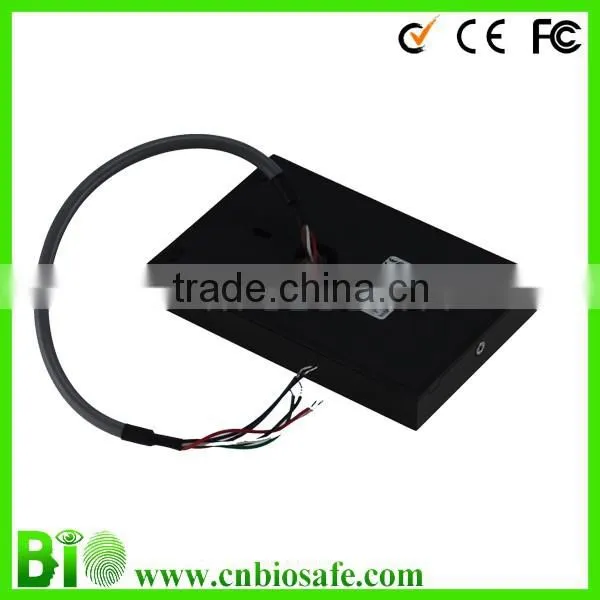

| Picture shows: |
| Our partner: |
| About company: |
Our company located in beautiful City-Shenzhen, China, where is an ancient and advancing with The Times of world window and you can review the past and longings for the future
in the elegant environment, convenient transportation of shenzhen north station, you are welcome to visit our company at any time.A lot of foreign customers to our company, hope you can be one of them.
1. We have professional technician team to support any of your questions on technician aspect
2. We also provide below service:
*OEM/ODM for adding your logo for free
*Customized Language
*Free Software/SDK
*Life-Long After-Service
| Our service: |
