Product Details
Place of Origin: | Guangdong, China | Brand Name: | HFSecurity | Model Number: | HF-SC103 RFID Access Control Systems |
Product Description

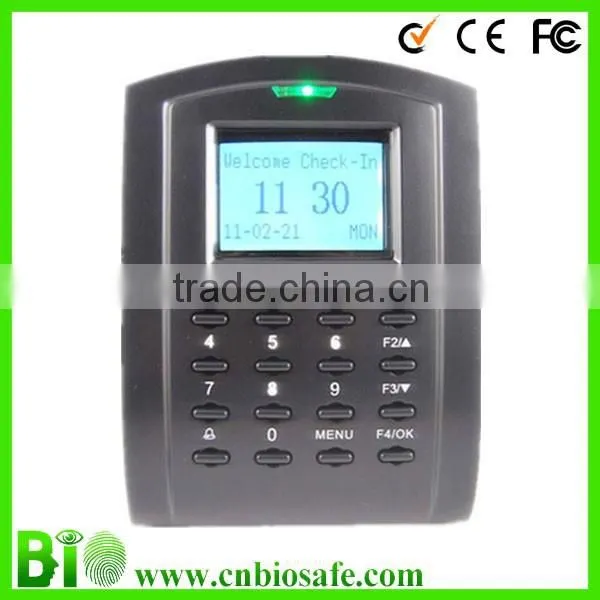

Standalone And Network Ethernet RFID Access Control Systems(HF-SC103)
Introduction |
SC103 is an access control devices produced by HF&CCTV, which is made with elegant design and professional surface treatment. The device have lock control, alarm, exit button, door sensor. The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on the device through LCD display, also can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user template and record etc. SC103 is suitable for house, small office and factory etc.
Features |
.Tough casing design
.Easy installation, safe and reliable
.Simple and convenient operation method
.ID card standard, IC card optional
.Full door lock control system
.Wiegand out to connect with control panel
.Wiegand in to construct master and slave system
.Audio prompt and LED feedback guide the user to operate
Specifications |
ID card Capacity | 30000 |
Transaction Capacity | 50000 |
Communication | TCP/IP, RS232/485, USB-Host |
Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Wiegand Signal | Output&Input |
Standard Functions | Anti-passback, SMS |
Optional Functions | IC card, Workcode, Webserver |
Display | LCD |
Power Supply | 12V DC |
Operating Temperature | 0 °C- 45 °C |
Operating Humidity | 20%-80% |
Dimension(L*W*H)mm | 129.5X95X48.5 |
Gross Weight | 0.7KG |
Company Profile |
Shenzhen BIO I/E, has specialized in biometric product and solution. As our logo indicates, B is for face recognition; I for iris verification and O for fingerprint identification. As long as it refers to biometric identification, such as, identify driver if he holds his own driving license; identify fingerprint as password, etc. we are confident to offer you most satisfactory solution in shortest time,based on our past successful experience in more than decade. You are also warmly invited to visit us, for discuss face to face. |
Advantage: |
1. We have professional technician team to support any of your questions on technician aspect |
