Multi Function Siutable For Wet And Dry Finger Car Fingerprint Biometric (HF-EM405)
| Introduction |

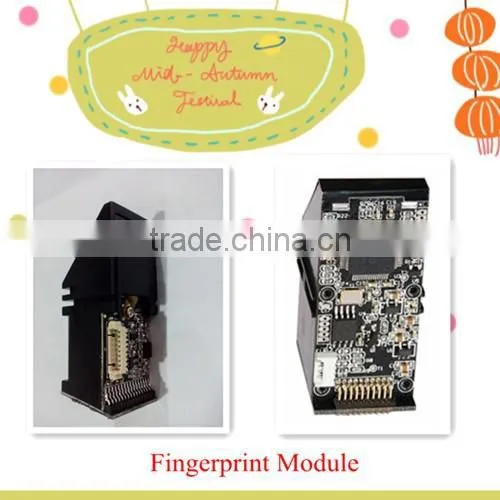

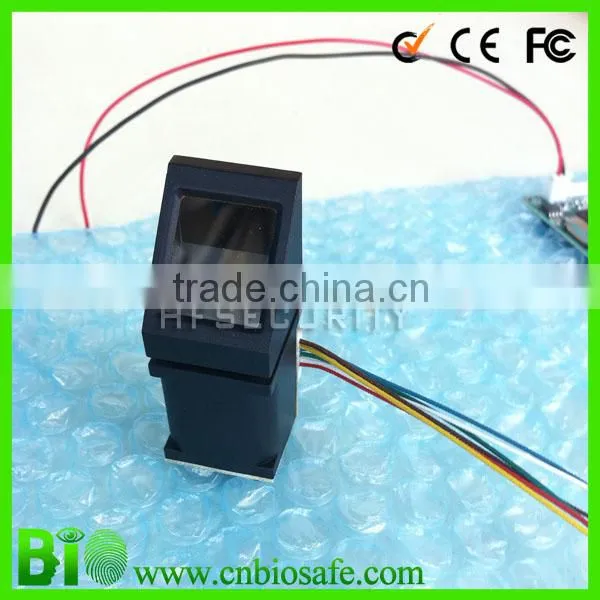

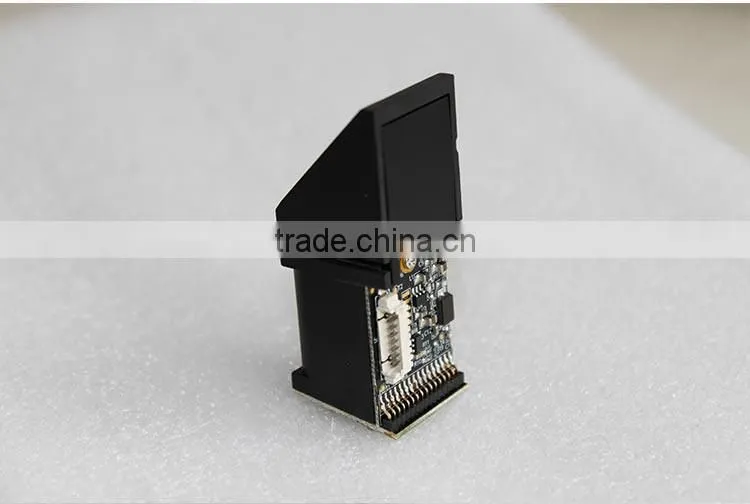

EM405 integrated fingerprint verification module is the latest release of Huifan Technology Co.,Ltd. It consists of optical fingerprint sensor, high performance DSP processor and Flash. It boasts of functions such as fingerprint enrollment, fingerprint deletion, fingerprint verification, fingerprint upload, fingerprint download.
| Features |
•Strong Functions
Independently conduct the functions of fingerprint enrollment, image processing, minutiae extraction, templates storage, fingerprint verification (1:1) or fingerprint searching (1:N) under the command of HOST( PC or MCU).
•Self-proprietary Intellectual Property
Optical fingerprint collection device, module hardware and fingerprint algorithm are all self developed by Miaxis.
•High Adaptation to Fingerprints
When reading fingerprint images, it has self-adaptive parameter adjustment mechanism, which improves imaging quality for both dry and wet fingers. It can be applied to wider public.
•Low Cost
Module adopts Miaxis’ optic fingerprint collection device, which dramatically lowers the overall cost.
•Algorithm with Excellent Performance
SM630 module algorithm is specially designed according to the image generation theory of the optic fingerprint collection device. It has excellent correction & tolerance to deformed and poor-quality fingerprint.
•Easy to Use and Expand
User does not have to have professional know-how in fingerprint verification. User can easily develop powerful fingerprint verification application systems based on the rich collection of controlling command provided by SM630 module. All the commands are simple, practical and easy for development.
•Low Power Consumption
Operation current <80mA, especially good for battery power occasions.
•Integrated Design
Fingerprint processing components and fingerprint collection components are integrated in the same module. The size is small. And there are only 4 cables connecting with HOST, much easier for installation and use.
•Perfect Technical Support
HF&CCTV is the leading company in the fingerprint verification industry. It has an excellent customer service team ready to offer powerful technical support in user development.
| Specifications |
Item |
Parameter |
Sensor |
Optical fingerprint sensor |
Identification Time |
<250ms |
Resolution |
500DPI |
Fingerprint Capacity |
768 templates |
FRR |
0.001% |
FAR |
0.00001% |
Working Current |
<80mA |
Standard Port |
TTL |
Power |
4.3V~6V |
Temperature/Humidity |
-10°C~50°C/45%RH~85%RH (no dew) |
Size |
60.0×21×25mm (L*W*H) |
| Company Profile |
|
Shenzhen BIO I/E, has specialized in biometric product and solution. As our logo indicates, B is for face recognition; I for iris verification and O for fingerprint identification. As long as it refers to biometric identification, such as, identify driver if he holds his own driving license; identify fingerprint as password, etc. we are confident to offer you most satisfactory solution in shortest time,based on our past successful experience in more than decade. You are also warmly invited to visit us, for discuss face to face. |
Advantage: |
1. We have professional technician team to support any of your questions on technician aspect |
If this fingerprint sensor can't meet your needs, please contact our online service, and other suitable products will be recommended for you.
