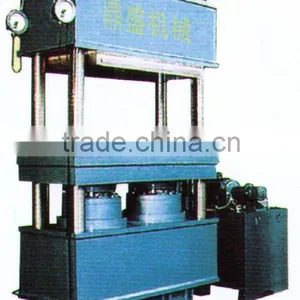

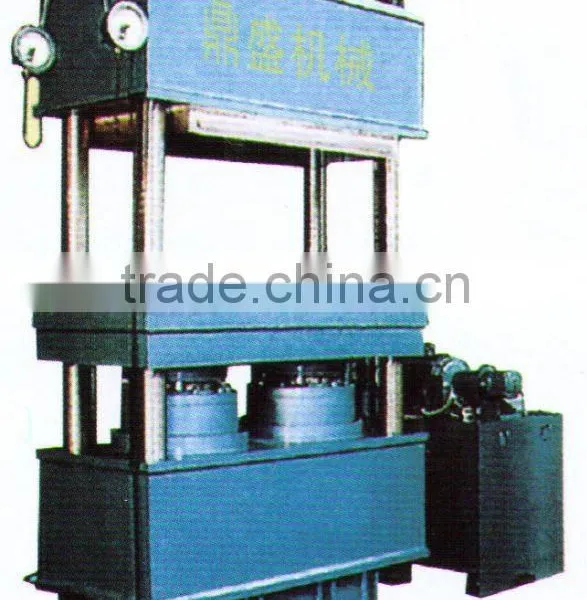

Four-column Platen Vulcanizing Machine
- 10000 Set / Sets per Month
- LIANYUNGANG
- Environmental Testing Walk In Humidity Chamber Door To Door Installation
- Factory Price Melt blown Fabric Production Equipment and Extruder Line
- X-ray Fuorescence Spectrometer
- Pressing Punching Servo Press Machine Positioning Straightening Calking
- Manual 2.5 D Video Measuring Machine 92 mm Working Range Multiple Data Processing
- 200KN Universal Material Compression Bending Tensile Testing Machine
Product Details
Product Type: | Other, Vulcanizer | Place of Origin: | Henan, China | Brand Name: | DingSheng |
Model Number: | Four-column 500t |
Product Description
Specifications
our Vulcanizing Machine is widely used in rubber,foam,Bakelite,resin,building materials,metal products,etc to hot/cold-forming .our Platen Vulcanizer is of high automation level and compact advanced structure, suitable to Vulcanize giant conveyer belt such as nylon conveyer belt, common conveyer belt . the main machine is applied for modern frame structure and equipt with special purpose hydraulic unit .
the four-column platen Vulcanizer ,its technical data are:
Specification Item | technical parameter |
Normal pressing force | 5000KN |
Hot plate specification | 1500*1500mm |
Hot plate space | 100-300mm |
Working layers | 1-4 |
Max working pressure | 20MPa |
Unit area pressure of hot plate | 2.8MPa |
Plunger stroke | 600mm |
Heating mode | stream heating/electric heating |
Motor power | 13kw |
Size(L*W*H) | 3800*1500*3100mm |
Weight | APPROX.30000kg |
