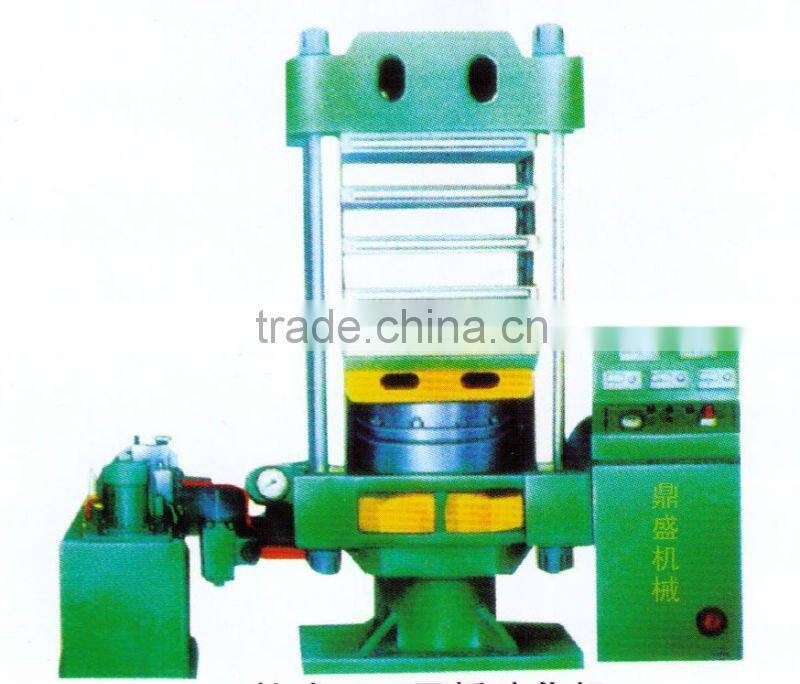

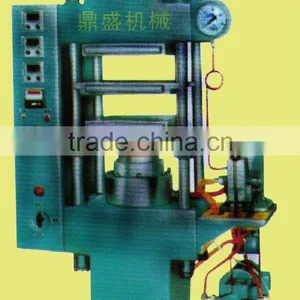

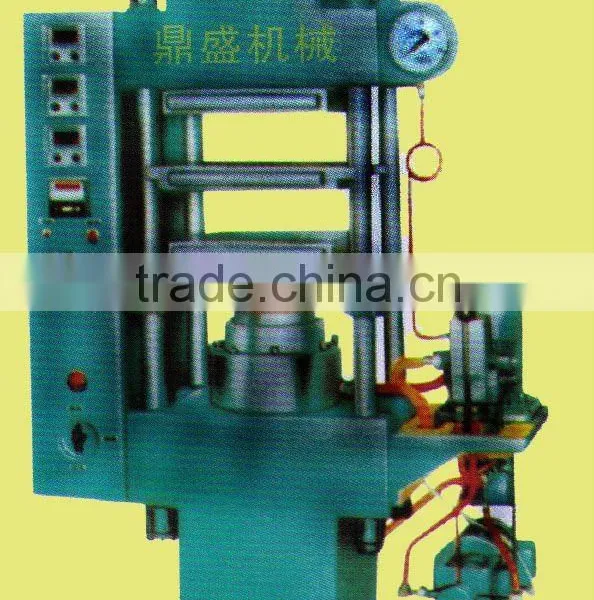

Four-column Plate Vulcanizier 25T

Name: Four-column Plate Vulcanizier 25T
Brand: DingSheng
SKU: 112407369
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Vulcanizer

Place of Origin:

Henan, China

Brand Name:

DingSheng

Zhengzhou Dingsheng Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

LIANYUNGANG

Delivery Detail:

Delivery time depends on order quantity.

Type Vulcanizer

Place of Origin Henan, China

Brand Name DingSheng

Model Number four-column 25T

Specifications

Vulcanizer is used to hot-form and cold-form rubber,foam,bakelite,resin,building materials, metal products,grinder wheel,.......

four-column plate vulcanizier 25T

detail description of four-volumn vulcanizing machine 100T

1. vulcanizing is widely used to form thermosetting plastic , foam , Bakelite ,

resin , building material , metal products, grinder wheel, health tiles to hot press forming and cold press forming.

2. The vulcanizing machine has advanced design and appearance of fine .

3. The way of operation is comprehensively use of advanced high-tech control system .

4. Its main technical characteristics , such as the automatic packing ,auto-fill pressure ,

auto-open mode, slow travel speed , and so on.

5. It can be made to heated plate spacing , a fixed position ,mold heating method

and electric steam according to the demand of the user .

technical data of four-column plate vulcanizier 25T

Specification Item	technical parameter
Normal pressing force	250KN
Hot plate specification	350*350mm
Hot plate space	100mm
Working layers	1-2
Max working pressure	14.5MPa
Unit area pressure of hot plate	2MPa
Plunger stroke	200mm
Heating mode	stream heating/electric heating
Motor power	2.2kw
Size(LWH)	12335321408mm
Weight	APPROX.1000kg
