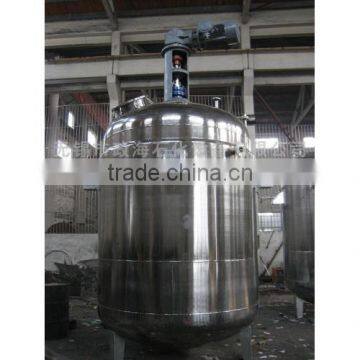

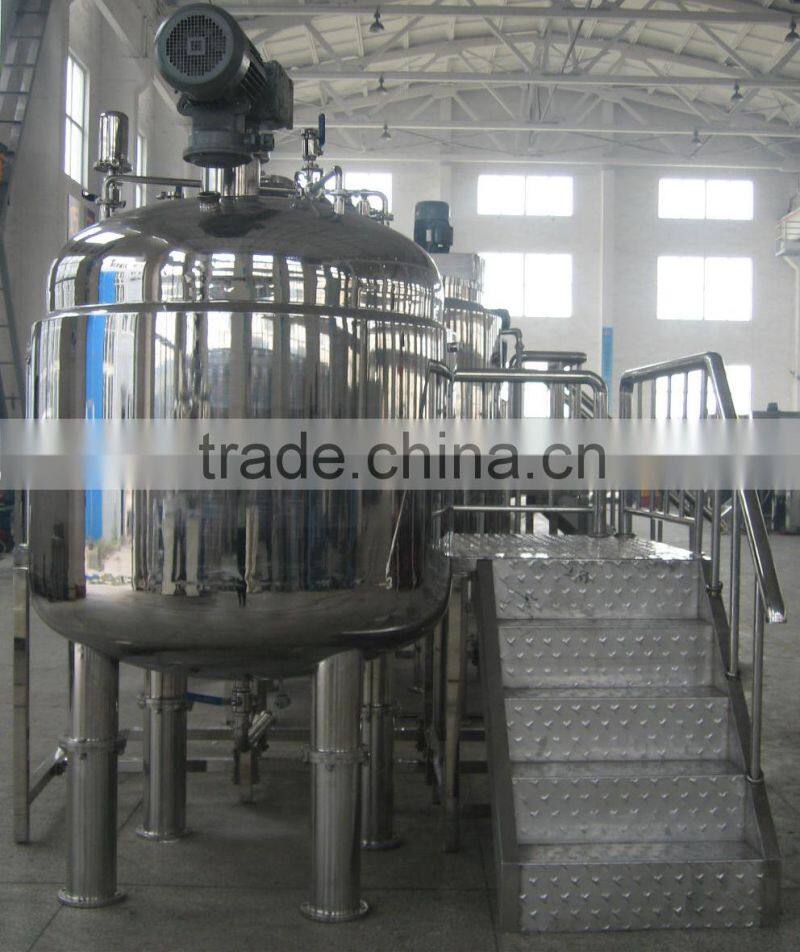

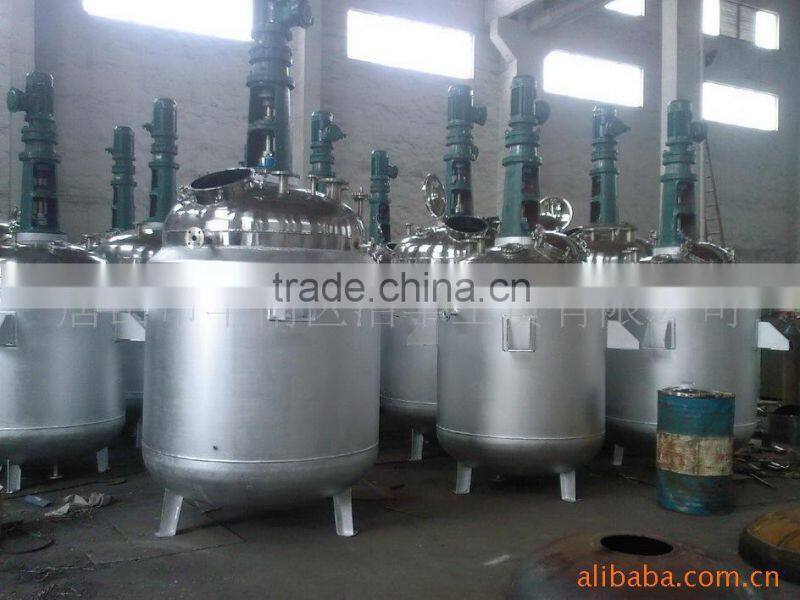

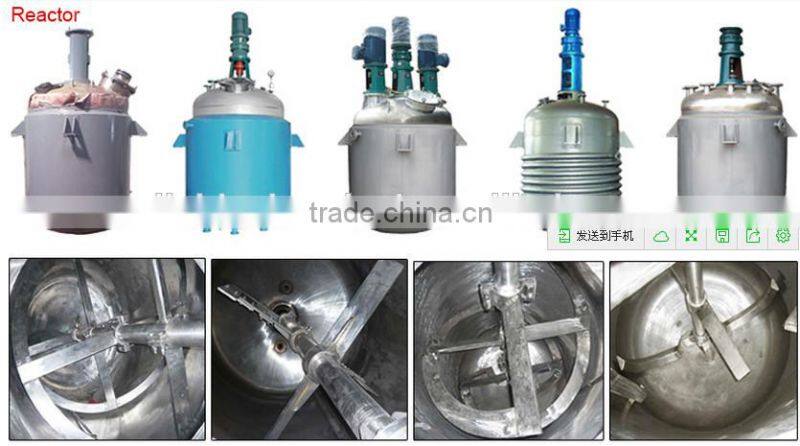

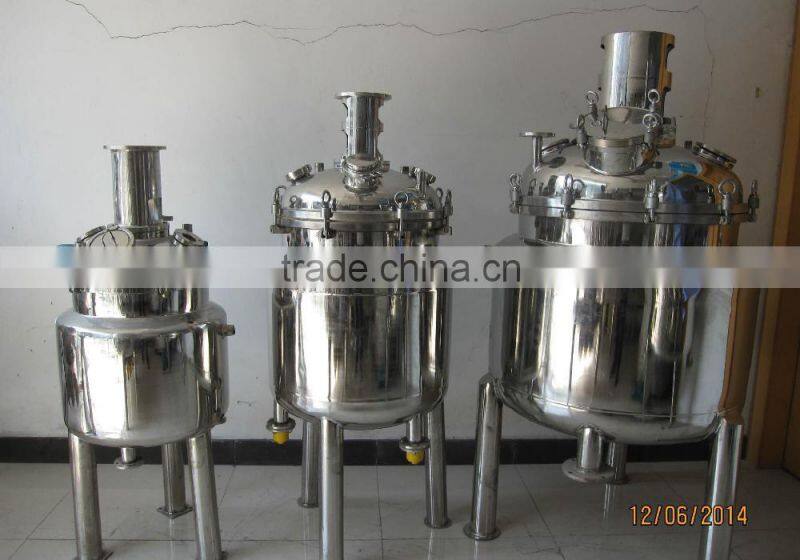

Stainless Steel Reaction Kettle/reaction Vessel/ Storage Vessel/mixing Vessel
US$ 500 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
the Best Quality Stainless Steel Reactor Vessel/ Chemical Mixing Tank/reaction Vessel/ Storage Vessel/mixing VesselUS$ 500 - 15,000MOQ: 1 Set -
2015 the Best Chemical Mixing ReactorsUS$ 500 - 15,000MOQ: 1 Set
-
2015 the Best Agitated ReactorUS$ 500 - 15,000MOQ: 1 Set
-
2015 New Designed Stainless Steel Chemical Mixing ReactorUS$ 750 - 15,000MOQ: 1 Set
-
Glass Lined ReactorUS$ 2000.00 - 2000.00MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
OEM
Model Number
Reaction and storage tank
Dimension(L*W*H)
upon to ordered requiremnt)
Capacity
50L-50000L(upon to ordered requiremnt)
Weight
500KGS-15000KGS
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Application
The stainless steel reactor is widely used in medicine, building materials, chemicals, pigments, resins and food industries.
Characteristics
our series jacketed reactor vessel is heating rapidly,pollution-free,corrosion resistance etc.There are different capacity for your choice, and part design can be customized according to your requirement.
Technical parameters
Model |
50L |
100L |
300L |
500L |
1000L |
2000L |
3000L |
4000L |
5000L |
Nominal volume(L) |
50 |
100 |
300 |
500 |
1000 |
2000 |
3000 |
4000 |
5000 |
Actual Capacity(L) |
78 |
127 |
327 |
509 |
1017 |
2154 |
3201 |
4020 |
5170 |
Heating power ( kw x pcs) |
2 x 4 |
2 x 6 |
4 x 6 |
4 x 9 |
4 x 12 |
4 x 15 |
4 x 15 |
4 x 15 |
4 x 18 |
Oil amount in jacket(L) |
96 |
127 |
218 |
269 |
400 |
850 |
1015 |
1226 |
1400 |
Inner pot zise (Dmm) |
400 |
500 |
800 |
900 |
1200 |
1400 |
1600 |
1600 |
1800 |
Jacket size (D1mm) |
600 |
700 |
1000 |
1100 |
1400 |
1600 |
1750 |
1750 |
2000 |
Centre of holder base screw holes(D2mm) |
828 |
928 |
1148 |
1252 |
1588 |
1840 |
2040 |
2070 |
2320 |
ExpandersCapacity(L) |
10 |
10 |
20 |
20 |
40 |
40 |
40 |
40 |
40 |
n-d |
4-25 |
4-25 |
4-25 |
4-25 |
4-30 |
4-30 |
4-35 |
4-36 |
4-36 |
MotorPower(KW) |
1.1 |
1.1 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
Rev of stirring |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
Weight(kg) |
270 |
340 |
700 |
930 |
1610 |
2010 |
2590 |
3160 |
4000 |
