small grain cement silos
For the small grain cement silos
1. Material : hot-galvanized steel sheets
2. Zinc coating : 275 g /m2
3.Bottom : two types: Hopper bottom and Flat bottom
4. Volume : around 1430 m3
5. Inside the grain silo body : we equip the Level system, Ventilation system,
Temperature control system.Draft fan .
6. Complete line includes : Cleaning , Transport, Silo body, Electric control system, at site.

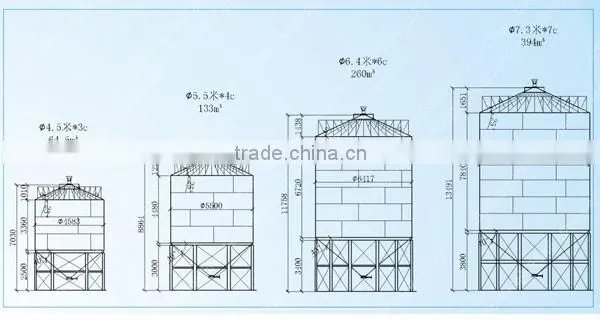

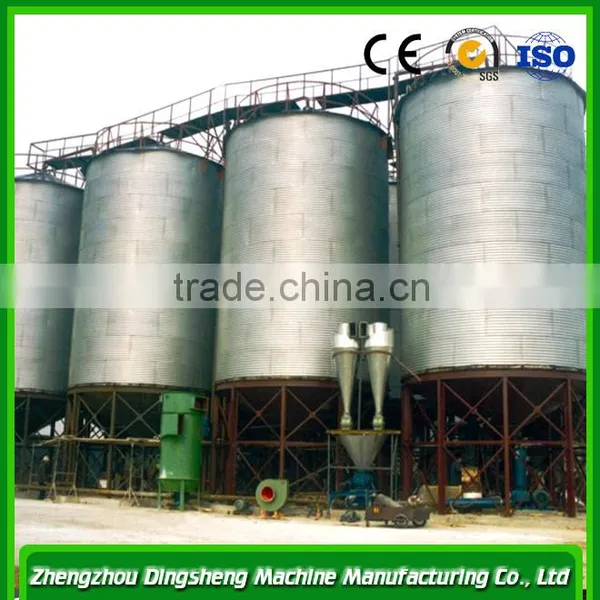

structure and size of our small grain cement silos
Features of small grain cement silos
Siding plate: pressed corrugated plate,hot galvanizing ,Galvanized amount 275g/m²(2 sides) ,thickness 1.5mm
Upright post(column): Z cross-section, pressed by national standard Q345 steel plate, 15 columns evenly distributed on the circumference. thichbness distribution: 1c-7c2.5MM-4.0mm
double doors on the wall, installed on the siding plate. outside has the platform.
framework on the top of silo is composed of 8 pieces Z-type steel purlin
The cover on the top of silo is pressed by 0.75mm hot galvanized , with 1.2m height of guardrail
Each silo has 2 Natural ventilation cap, 1 bservation hole
Each silo has one set of inside vertical ladder.

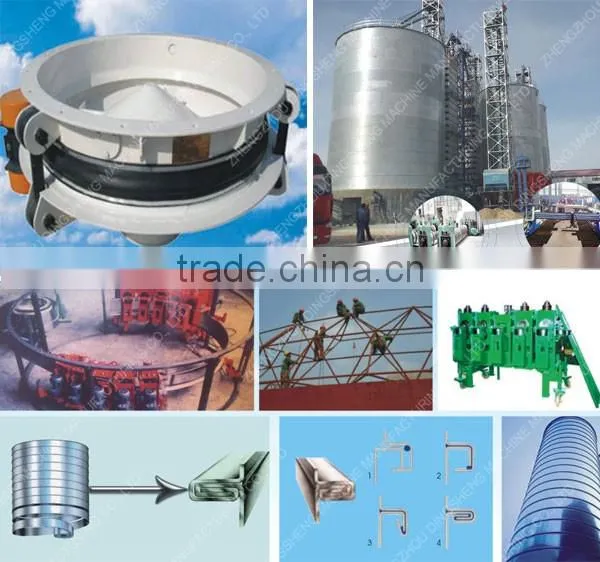

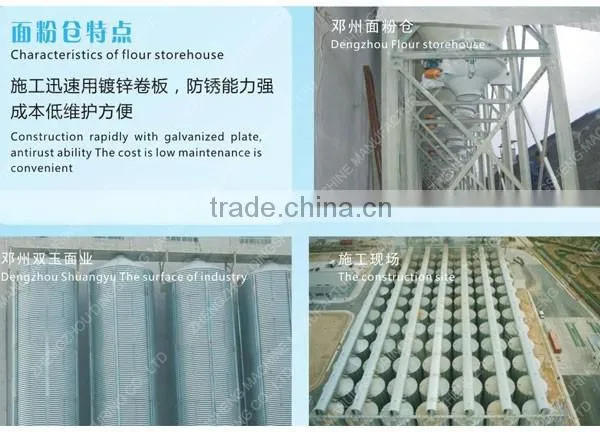

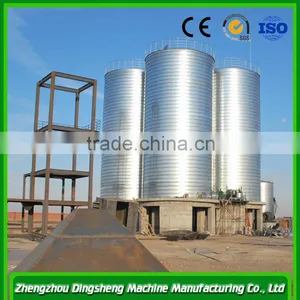

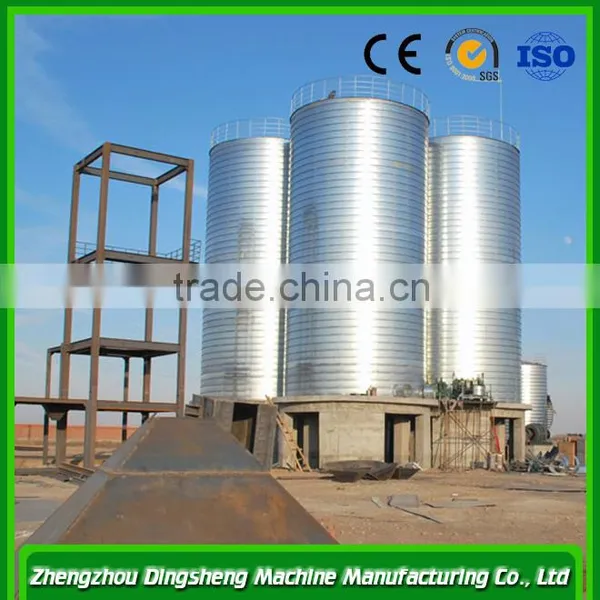

installation of small grain cement silos

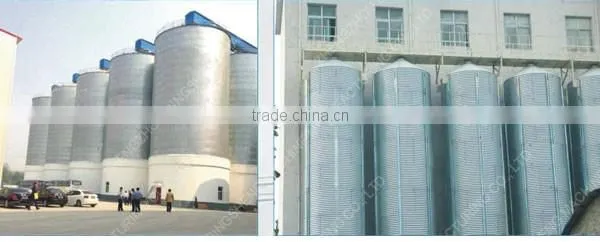

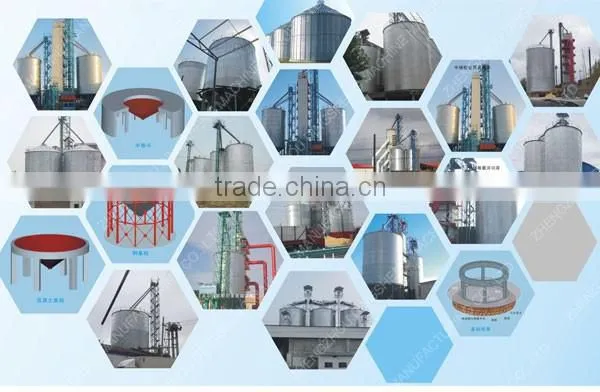

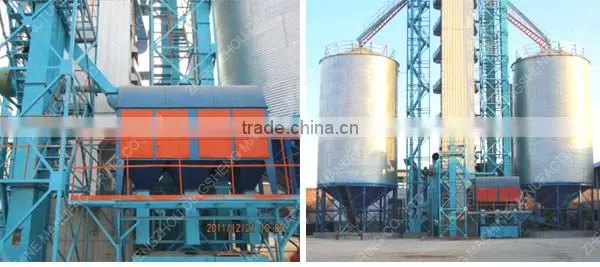

The small grain cement silos we have installed all over the world:
