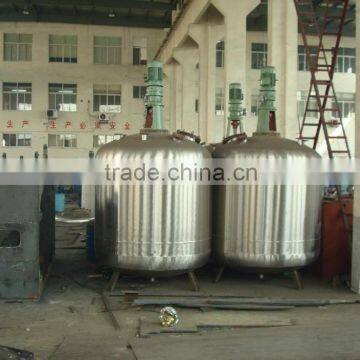

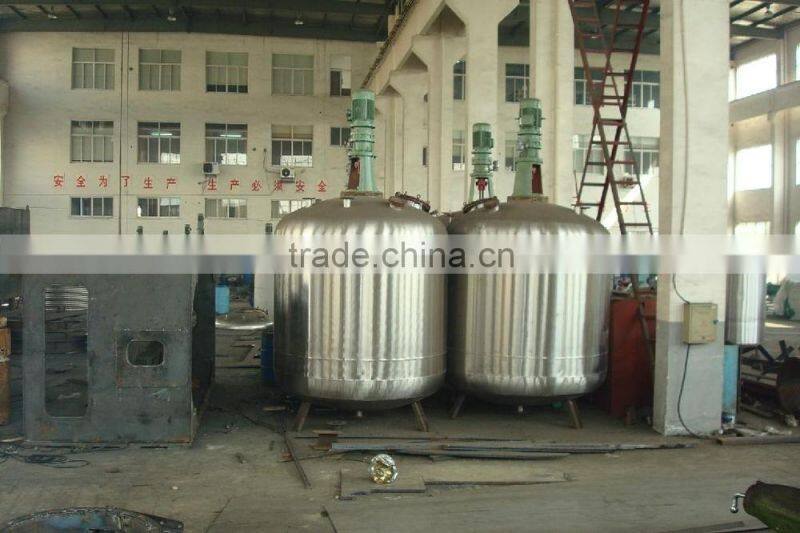

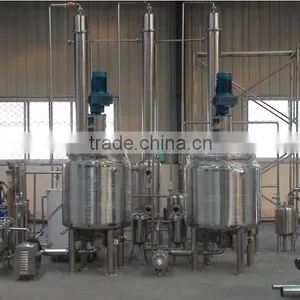

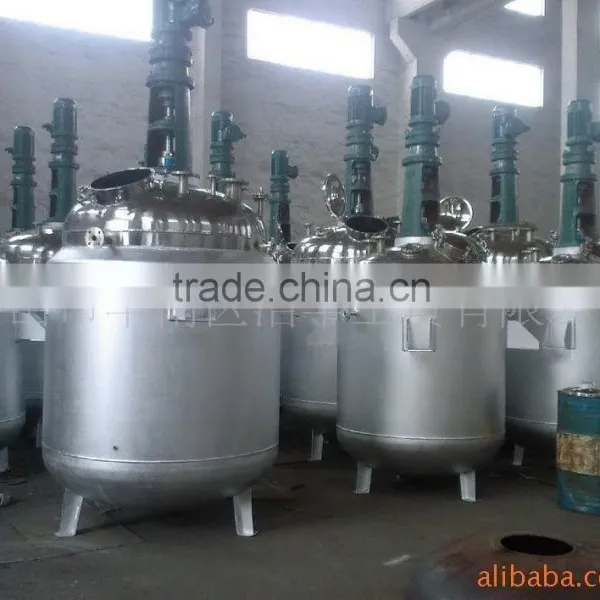

Stainless Steel Reactor/reaction Vessel/ Storage Vessel/mixing Vessel
US$ 500 - 15,000
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | OEM | Model Number | Reaction and storage tank | |
| Dimension(L*W*H) | upon to ordered requiremnt) | Capacity | 50L-50000L(upon to ordered requiremnt) | |
| Weight | 500KGS-15000KGS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
We are not the treader, we are one of the best manufacture of the reaction kettle in China, welcome to visit our factory in China
Product Description
Application
The stainless steel reactor is widely used in medicine, building materials, chemicals, pigments, resins and food industries.
Characteristics
Hongda series jacketed reactor vessel is heating rapidly,pollution-free,corrosion resistance etc.There are different capacity for your choice, and part design can be customized according to your requirement.
Technical parameters
Model | 50L | 100L | 300L | 500L | 1000L | 2000L | 3000L | 4000L | 5000L |
Nominal volume(L) | 50 | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
Actual Capacity(L) | 78 | 127 | 327 | 509 | 1017 | 2154 | 3201 | 4020 | 5170 |
Heating power ( kw x pcs) | 2 x 4 | 2 x 6 | 4 x 6 | 4 x 9 | 4 x 12 | 4 x 15 | 4 x 15 | 4 x 15 | 4 x 18 |
Oil amount in jacket(L) | 96 | 127 | 218 | 269 | 400 | 850 | 1015 | 1226 | 1400 |
Inner pot zise (Dmm) | 400 | 500 | 800 | 900 | 1200 | 1400 | 1600 | 1600 | 1800 |
Jacket size (D1mm) | 600 | 700 | 1000 | 1100 | 1400 | 1600 | 1750 | 1750 | 2000 |
Centre of holder base screw holes(D2mm) | 828 | 928 | 1148 | 1252 | 1588 | 1840 | 2040 | 2070 | 2320 |
ExpandersCapacity(L) | 10 | 10 | 20 | 20 | 40 | 40 | 40 | 40 | 40 |
n-d | 4-25 | 4-25 | 4-25 | 4-25 | 4-30 | 4-30 | 4-35 | 4-36 | 4-36 |
MotorPower(KW) | 1.1 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
Rev of stirring | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Weight(kg) | 270 | 340 | 700 | 930 | 1610 | 2010 | 2590 | 3160 | 4000 |
