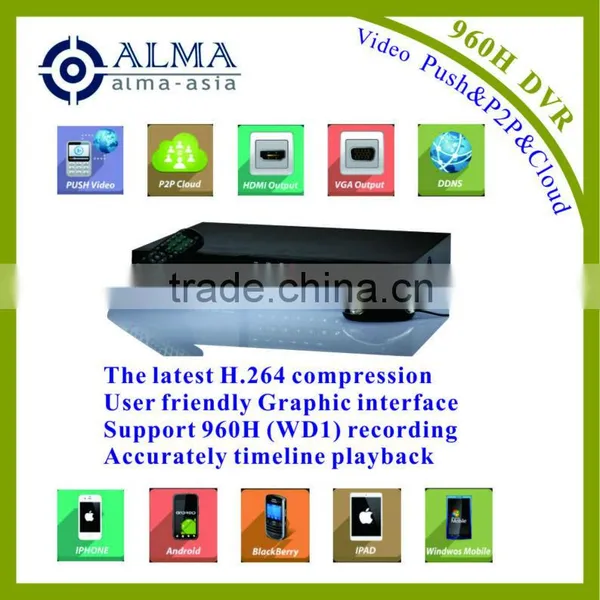

4CH 960H CCTV DVR

4CH 960H CCTV DVR thumbnail-1
4CH 960H CCTV DVR photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ALMA-AMINOX
Model Number:
AD9604C
Contact Supplier Request Quote Chat Now
Alma Technology Sdn. Bhd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ALMA-AMINOX
Model Number AD9604C

Specifications

The latest H.264 compression
User friendly Graphic interface
Support 960H (WD1) recording
Accurately timeline playback

Model   AD9604C
System User Interface Graphic User Interface (OSD)
OS Embedded Linux
Operation Mode preview, record, playback, backup, network
Password Security Multi-level user management
A/V Input Video input 4 in, BNC
Audio input 4 in, RCA
A/V Output HDMI output Supports 1024X768,1280X1024, 1366X768, 1440X900,720P,1080P
VGA output Supports
Display 1/4 optional
Video standard PAL/NTSC
Loop NO
CVBS main output 1 out, BNC; Resolution: PAL:704*576, NTSC: 704*480
Spot output NO
Audio output 1 out,RCA
A/V encoding parameters Video compression H.264
Display frame rate PAL:100 fps(4 x 25 fps); NTSC:120 fps(4 x 30 fps)
Recording frame rate PAL:100 fps(4 x 25 fps); NTSC:120 fps(4 x 30 fps)
Video encoding resolution PAL:WD1:960X576/WHD1:960*288/WCIF:480X288/D1:704X576/HD1:704*288/CIF 352X288
NTSC:WD1:960X480/WHD1:960*240/WCIF:480X240/D1:704X480/HD1:704*240/CIF 352X240
Video frame rate PAL: 1-25FPS NTSC:1-30FPS
Video bit rate WD1(D1):768-1536Kbps,WHD1(HD1):512-1280kpbs
WCIF(CIF):384-768kbps;WQCIF(QCIF):192-384kbps
Stream Type Video & Audio/Video
Audio compression ADPCM
Recording mode Always/Schedule/Alarm recording/Motion detection recording
Video search Time/Channel/Event
Audio bit rate 8—32kbps
Dual-stream Supports
Mobile phone Monitor Supports Android phone/iPhone/iPad/Blackberry
Recording resolution 4CH WD1 Recroding & 4CH WD1 Realtime Playback
4CH WCIF Recroding & 4CH WCIF Realtime Playback
4CH D1 Recording & 4CH D1 Realtime Playback
Playback simultaneously 1 - 4 CH optional
HDD Type 1 piece SATA
Maximum capacity 4TB for each Sata connector
External connectors Voice talk NO
Record mode Audio & Video recording simultaneously
Network protocol Supports IE/PPPoE/DDNS/DHCP
Domain name server Support 88110,reelink,3322, dyndns, no-ip, changeip, dnsexit domain name server as default value
Network  1 RJ45 10M/100M
Serial port 1 RS-485 serial port
E-SATA Connector NO
USB Connector 2 USB
Firmware update Support USB update/Network update
Alarm input 4 in
Alarm output 1 out
  Operation Temperature -10°C--+55°C
Operation Humidity 10%--90%
Power supply 12V 2A
Chassis Standard mini 1U
Dimension 227mm × 315mm × 45mm
Weight(without HDD) ≤1.5Kg
