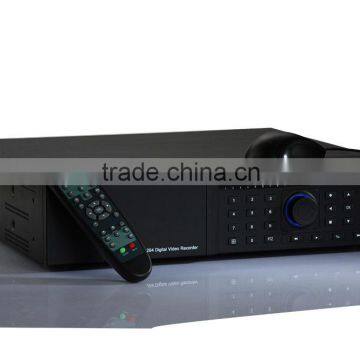

Help Center32CH 960H DVR
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ALMA-AMINOX
Model Number:
AD9632S
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
ALMA-AMINOX
Model Number
AD9632S
Specifications
32 CH WD1 Recroding + 4 CH WD1 realtime Playback8 pieces SATA
| Model | AD9632S | ||
| System | User Interface | Graphic User Interface (OSD) | |
| OS | Embedded Linux | ||
| Operation Mode | preview, record, playback, backup, network | ||
| Password Security | Multi-level user management | ||
| A/V Input | Video input | 32 in, BNC | |
| Audio input | 16 in, BNC | ||
| A/V Output | HDMI output | Supports | 720P,1080I,1080P 1024X768,1280X1024, 1366X768,1440X900 |
| VGA output | Supports | ||
| Display | 1/4 /9/16/25/32optional | ||
| Video standard | PAL/NTSC | ||
| Loop | NO | ||
| CVBS main output | 1 out, BNC; Resolution: PAL:704*576, NTSC: 704*480 | ||
| Spot output | 1 out,BNC | ||
| Audio output | 1 out,BNC | ||
| A/V encoding parameters | Video compression | H.264 | |
| Display frame rate | PAL:800 fps(32 x 25 fps).NTSC960 fps(32 x 30 fps) | ||
| Recording frame rate | PAL:400 fps(32 x 25 fps).NTSC960 fps(32 x 30 fps) | ||
| Video encoding resolution | PAL:WD1:960X576/WHD1:960*288/WCIF:480X288/D1:704X576/HD1:704*288/CIF 352X288 | ||
| NTSC:WD1:960X480/WHD1:960*240/WCIF:480X240/D1:704X480/HD1:704*240/CIF 352X240 | |||
| Video frame rate | PAL: 1-25FPS NTSC:1-30FPS | ||
| Video bit rate | D1:768-1536Kbps,HD1:512-1280kpbs,CIF:384-768kbps,QCIF:192-384kbps | ||
| Stream Type | Video & Audio/Video | ||
| Audio compression | ADPCM | ||
| Recording mode | Always/Schedule/Alarm recording/Motion detection recording | ||
| Video search | Time/Channel/Event | ||
| Audio bit rate | 8—32kbps | ||
| Dual-stream | Supports | ||
| Mobile phone Monitor | Supports Android phone/iPhone/iPad | ||
| Recording resolution | 32 CH WD1 Recroding + 4 CH WD1 realtime Playback | ||
| HDD | Type | 8 pieces SATA | |
| Maximum capacity | 2TB for each Sata connector | ||
| External connectors | Voice talk | Supports | |
| Record mode | Audio & Video recording simultaneously | ||
| Network protocol | Supports IE/PPPoE/DDNS | ||
| Domain name server | Support 88110,3322, dyndns, no-ip, changeip, dnsexit domain name server as default value. | ||
| Network | 1 RJ45 10M/100M/1000M | ||
| Serial port | 2 RS-485 serial port | ||
| 1 RS-232 serial port | |||
| E-SATA Connector | Supports | ||
| USB Connector | 2 USB | ||
| Firmware update | Support USB update/Network update | ||
| Alarm input | 16 CH alarm input | ||
| Alarm output | 4 CH alarm output | ||
| Others | Power supply | ATX | |
| Operation Temperature | -10°C--+55°C | ||
| Operation Humidity | 10%--90% | ||
| Chassis | Standard 2 U | ||
| Dimension | 417mm × 440mm × 90mm | ||
| Weight(without HDD) | ≤6 Kg | ||
