vacutainer product machine
- 10 Set / Sets per Month
- shanghai
- T/T
- Inside and outside bag packaging line Healthy teatriangle packaging linkage line
- Pharmaceuticals industrypackaging assembly line Packaging production line
- China teatriangle packaging linkage line Green teainternal and external package linkage line
- Packing and palletizing linkage line Beverage industrybox and palletizing production line
- Pharmaceuticals industrypackaging linkage line Packaging production line
- Box code stack production line Beverage industrybox and palletizing assembly line
Product Details
Condition: | New | Application: | Other, Medical, Machinery & Hardware, Medical, blood collection tube machine | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380v | Power: | 12 kw | Place of Origin: | Shanghai, China |
Brand Name: | H-Dynamic | Model Number: | PL49 | Dimension(L*W*H): | 3100*1300*240mm |
Weight: | 1600kg | Certification: | GMP/CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Equipment Introduction

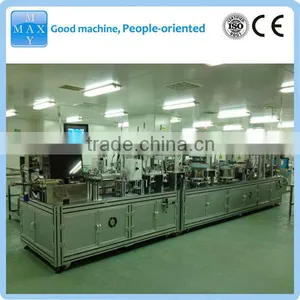

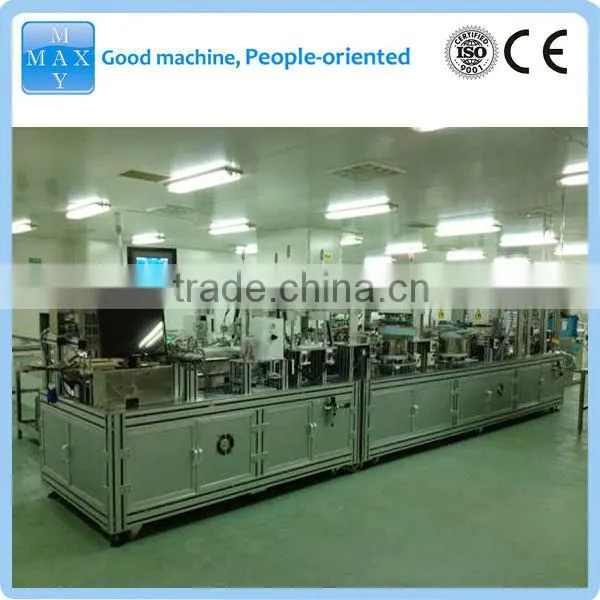

The whole production line is used to assemble 16mm vacuum blood collection tube automatically, including automatic tube filling, spraying & dosing, drying, online capping & stoppering, pre-vacuuming & tray loading etc..
This machine is the first line in China which can realize online cap & stopper combination.
Meanwhile, it is also the first line directly using derangement foam tray.
It can track and inspect the assembling technology in the whole process, and reject the faulty ones.
Basically resolve the traditional process which has inadequate control to the products quality.
It also enhances the products quality, and reduces labor cost.
The line can be equipped with laminar air flow hood.
l Compact structure, stable, easy to install.
2 Low power consumption and running cost.
3 Adopt powerful fan, long-term use under high hydrostatic situation.
4 Maintain low noise.
5 Class A(≥0.5um particles≤3.5/L)
6 Average air speed: 0.35-0.55m/s
7 Noise≤64(dB)m(A)
Main Technical Parameters
Application | Φ16*100 PET tube or glass tube |
Production capacity | 15000-20000pcs/h (Affected by technology) |
Filling precision | ≤±2%(Anti-coagulant micro dosing) ≤±3%(Coagulant micro dosing) |
Capping and stoppering pass rate | ≥99% |
Vacuuming & cap pressing & tray loading pass rate | ≥99% |
Power supply | 380V/50HZ |
Power | 12KW |
Clean compressed air pressure | 0.6-0.8Mpa |
Clean compressed air consumption | 300L/min |
Overall dimension | 3100*1300*2400mm (L*W*H) |
Machine weight | About 1600kgs |
Features:
l Space utilization
This machine includes tube loading, filling, drying1, drying2, capping, stoppering, pre-vacuuming, vacuum sampling, tray loading.Comparing with traditional type, overall length is only the half.
lI Higher efficiency
This machine uses multi-axis manipulators, to ensure the equipment precise running and digital control.
Multi-channel filling system, high efficient drying system, special capping and stoppering, with vacuum degree detection device, bring the system more stable running, and higher production capacity.
lII Less operators
With online cap & stopper combination function, it can reduce one cap & stopper combination machine and the relevant operator.
The whole production line only need 2 operators to easily run the production process.
lV Comprehensive inspection
Service for the production line
Pre-sale service
Sale tracking service
We will assign our experienced project manager to do the job as below:
• Sign contract
• Conform drawing
• Equipment fabricating
• Initial assembly commissioning
• Final assembly commissioning
• Ex factory inspection
• Delivery
• Final commissioning
• Inspection and acceptance
After-sale service
Our products include modular type and integral type. According to our latest design, the production line is composed of tube labeling, tube filling, gel filling, dosing, cap&stapper combining and wearing, tube pre-vacuum&loading, shrinking packing stations.
Thanks to our highly automatical advanced intelligent control system, all the fabricating information can be displayed and controlled in the touch screen, to ensure safely and effectively fabrication.
Packing | Export standard package |
MOQ | 1 set |
FOB price | Please contact for new price |
Delivery time | 60days |
FOB port | Shanghai |
Payment terms | T/T,L/C at sight |
