150Kva silent diesel generator (Engine model: 6BTAA5.9-G2)
Cummins engine-6BTAA5.9-G2
Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by Cummins engine,Controlled by Deepsea panel
Voltage |
HZ |
Phase |
P.F (COS) |
Output (KVA) |
400/230V |
50 |
3 |
0.8 |
150 |
Remark |
60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. |
|||
Cummins 150kva diesel generator engine data:
Engine Model |
6BTAA5.9-G2 |
Number of Cylinders |
6 cylinders, Vertical in line |
Cycle |
4 stroke |
Aspiration |
Turbocharged and after water cooled |
Bore×Stroke |
102mm x120mm |
Displacement |
5.9L |
Compression ratio |
17.5:1 |
Prime Power/Speed |
120KW / 1500rpm |
Standby Power/Speed |
130KW / 1500rpm |
Speed Governor |
electrical |
Cooling System |
Forced water cooling cycle |
Steady speed droop |
≤1% |
Total lubrication system capacity |
16.4L |
Coolant capacity (engine only) |
9.1L |
Fuel Consumption at 100% Load |
208g/kw.h |
Starter Motor |
DC24V, |
Alternator |
AC24V |
Alternator brand |
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power |
150Kva |
Frequency/speed |
50HZ/1500rpm (60Hz/1800rpm) |
Exciter type |
Single bearing, Brushless, Self-excited |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
150Kva Cummins open diesel generator

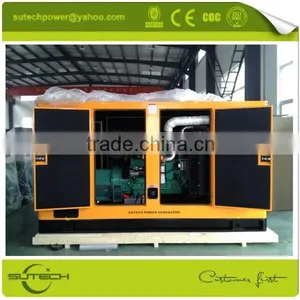

150Kva Cummins silent diesel generator
