Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Cummins 4B3.9-G2 Generator, Powered by Cummins 4B3.9-G2 Engine

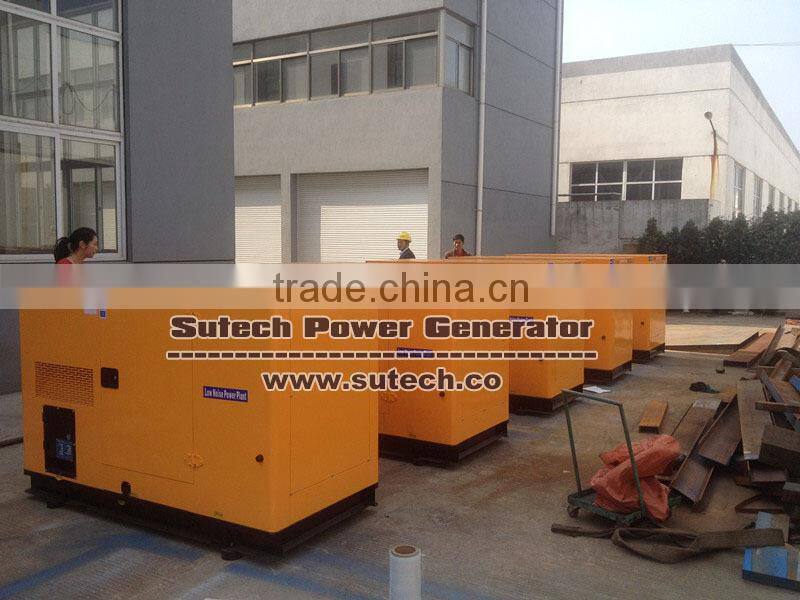

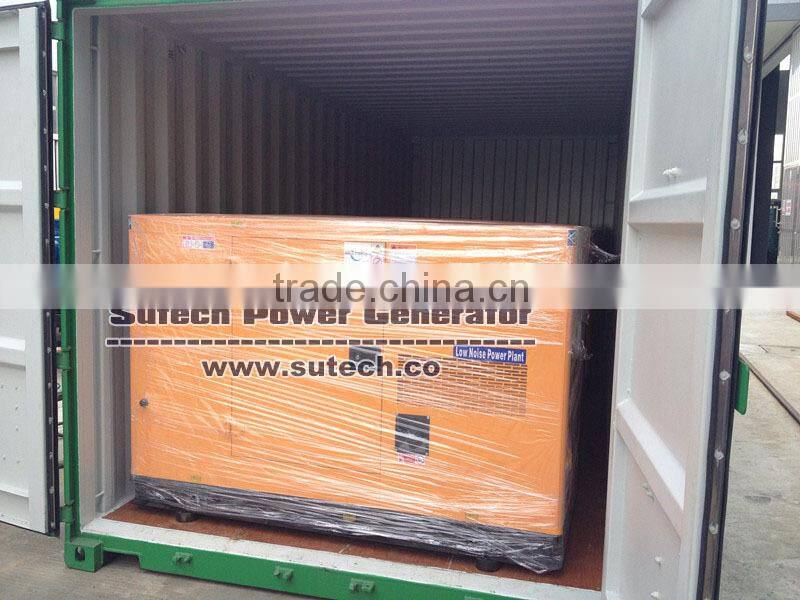

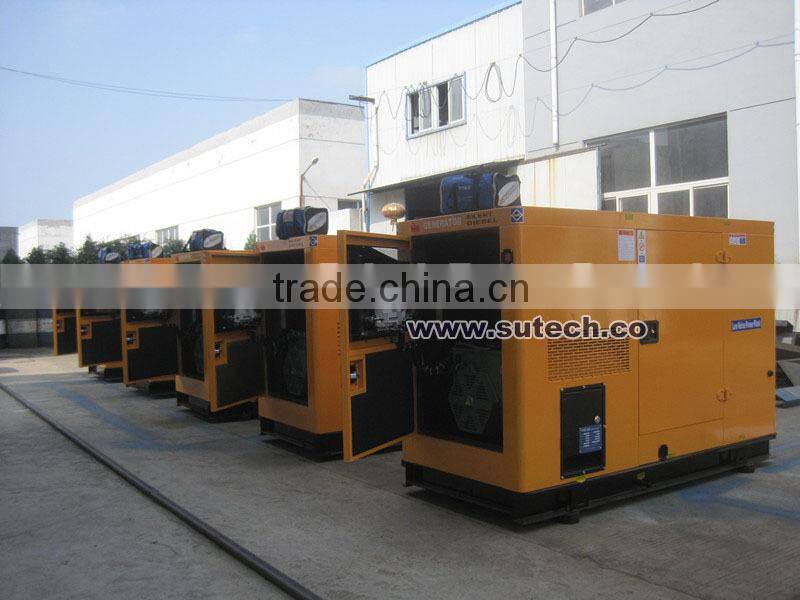

Cummins 4B3.9-G2 Generator, Powered by Cummins 4B3.9-G2 Engine

Name: Cummins 4B3.9-G2 Generator, Powered by Cummins 4B3.9-G2 Engine
Brand: Cummins 4B3.9-G2 generator
SKU: 112391925
Availability: InStock

Taizhou Sutech Power Machinery Co., Ltd.

Cummins 4B3.9-G2 Generator, Powered by Cummins 4B3.9-G2 Engine thumbnail-1

Cummins 4B3.9-G2 Generator, Powered by Cummins 4B3.9-G2 Engine photo-1

US$ 5,000 - 7,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Cummins 4B3.9-G2 generator

Model Number:

4B3.9-G2

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Cummins 4B3.9-G2 generator

Model Number 4B3.9-G2

Output Type AC Three Phase

Speed 1500rpm/min

Frequency 50Hz

Rated Power 25Kva

Rated Voltage 110V~600V

Rated Current 36a

Specifications

Cummins 4B3.9-G2 generator, powered by Cummins 4B3.9-G2 engine
Stamford alterantor
Deepsea control panel
High quality

25Kva silent generators (Engine model: 4B3.9-G2)

Main technical data

Cummins engine-4B3.9-G2

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Cummins diesel generator power capacity

Engine Model	4B3.9-G2
Engine manufacturer	Cummins
Number of Cylinders	4 cylinders
Cylinders arrangement	Vertical in line
Cycle	4 stroke
Aspiration	Naturally
Bore×Stroke	102mm x120mm
Displacement	3.9L
Compression ratio	16.5:1
Prime Power/Speed	24KW / 1500rpm
Standby Power/Speed	26KW / 1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	11L
Coolant capacity (engine only)	7.2L
Fuel Consumption at 100% Load	226 g/kw.h
Starter Motor	DC24V,
Alternator	AC24V

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	25Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
